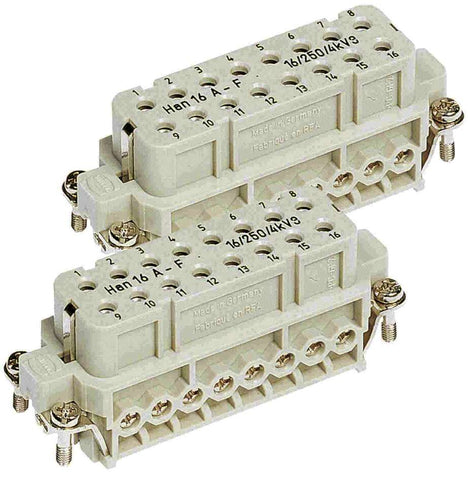

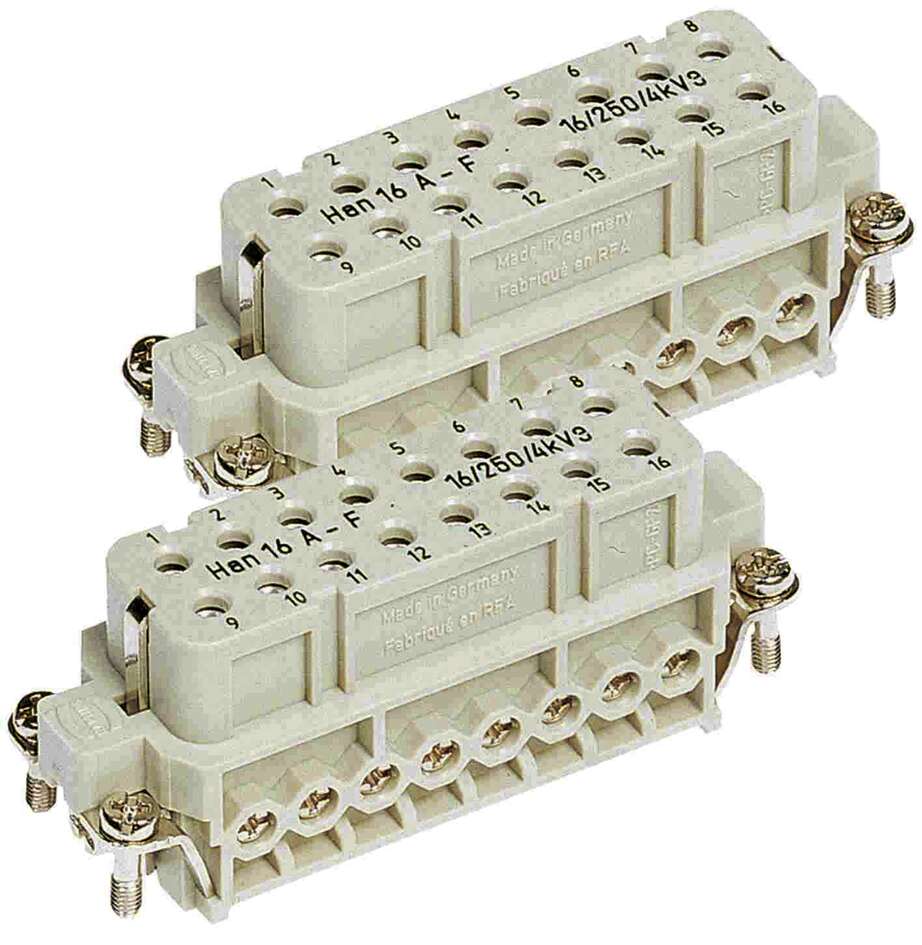

Harting Han A Power connector insert, heavy-duty, female, 16 contacts, 16A

Product Overview

The Han 16A-BU-S (17-32) is a heavy-duty female connector insert from HARTING's Han A® series with continuing marking specification. This specialized insert is designed for applications requiring extended contact configurations and provides reliable connectivity for power and signal transmission in demanding industrial environments. The "17-32" designation indicates this insert provides contacts numbered 17 through 32, requiring a second insert for complete assembly.

Key Specifications

• Article Number: 09 20 016 2813
• Series: Han A®
• Gender: Female insert (socket)
• Specification: Continuing marking
• Contact Identification: 17-32
• Number of Contacts: 32 (16 + PE per insert)
• Size: 32A
• Current Rating: 16A
• Voltage Rating: 250V (up to 600V acc. to UL)
• Wire Cross Section: 0.75 to 2.5 mm²
• Termination Method: Screw termination

Technical Features

• Construction: Requires two inserts for complete assembly
• Mechanical Life: Greater than or equal to 500 mating cycles
• Contact Material: Copper alloy
• Contact Plating: Silver plated
• Insert Material: Polycarbonate (PC)
• Insert Color: RAL 7032 (pebble grey)
• Temperature Range: -40°C to +125°C operating temperature

Electrical Characteristics

• Rated Impulse Voltage: 4 kV
• Pollution Degree: 3
• Insulation Resistance: >10¹⁰ Ω
• Contact Resistance: ≤ 1 mΩ
• Tightening Torque: 0.5 Nm

Applications & Usage This continuing marking insert is ideal for applications requiring expanded contact configurations beyond standard insert capacities. The Han 16A-BU-S (17-32) is designed for automotive, machine, and plant engineering applications where additional contacts are needed. Two inserts are required to create a complete 32-contact assembly, providing flexibility in system design and installation.

Certifications & Compliance

• UL Rating: 600V acc. to UL
• CSA Rating: CSA-C22.2 No. 182.3 PVVA8.E318390
• Material Flammability: UL 94 V-0 class

Download existing graphical data for this product:

• Product Datasheet
• Product Declaration Certificate
• Technical Drawing
• EPLAN Data Portal - CAD Models & Technical Data
