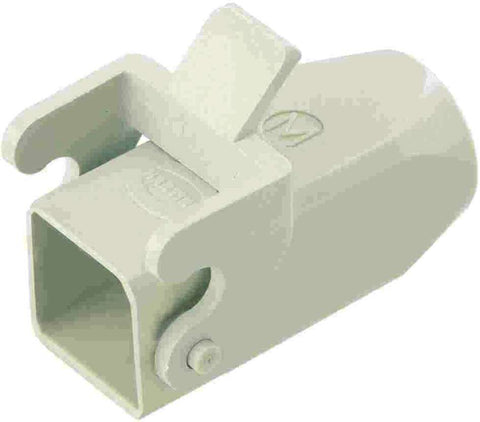

Han A Hood Coupler Thermoplastic M20

Product Overview

The Han A Hood Coupler Thermoplastic M20 (article no. 19 20 003 0720) is a cable-to-cable housing from Harting's Han A series. Features polycarbonate construction in pebble grey (RAL 7032) with single locking lever, top entry M20 cable connection, and 3A size configuration for creating reliable cable-to-cable connections in industrial automation applications.

Key Features:

• Cable-to-cable housing design for inline connections
• Han A series 3A size for compact applications
• Thermoplastic polycarbonate construction (RAL 7032 pebble grey)
• Single locking lever for secure connection
• Top entry configuration with M20 cable thread
• Slim, space-saving design optimizes installation space
• Compatible with Han A, D, and Q series inserts
• IP67 protection available with seal screw (09200009918)

Applications:

Cable extension applications, inline connector joints, cable-to-cable connections, industrial automation systems, control panel interconnections, manufacturing equipment, process control installations, field wiring extensions requiring reliable connections.

Technical Specifications:

• Category: Hoods/Housings
• Series: Han A
• Size: 3A
• Housing Type: Cable-to-cable coupler
• Material: Polycarbonate (PC) thermoplastic
• Color: Pebble Grey (RAL 7032)
• Cable Entry: Top entry, M20 thread
• Locking Mechanism: Single lever
• Insert Compatibility: Han A, D (including Han 8D(U)), and Q series
• Protection Rating: IP44 standard (IP67 with seal screw)

Design Features

The cable-to-cable coupler design enables the creation of inline connections between two cables, providing a secure and environmentally protected junction point. The single lever locking mechanism ensures reliable mating while allowing for easy connection and disconnection during maintenance operations.

System Benefits:

• Cable-to-cable design enables flexible cable routing solutions
• Thermoplastic construction provides chemical resistance and durability
• Single lever operation reduces connection/disconnection time
• Compact 3A size minimizes space requirements
• Top entry simplifies cable management in confined spaces
• Compatible with multiple insert series for design flexibility

Standards:

• Industrial connector housing standards
• Han A series compatibility specifications
• IP protection rating standards (IEC 60529)
• Polycarbonate material standards
• Cable-to-cable connection requirements

Compliance:

• RoHS compliant materials
• Harting Han A series specifications
• Industrial automation standards
• Environmental protection requirements
• Chemical resistance specifications

Download existing graphical data for this product:

• Product Datasheet
• Product Documentation
