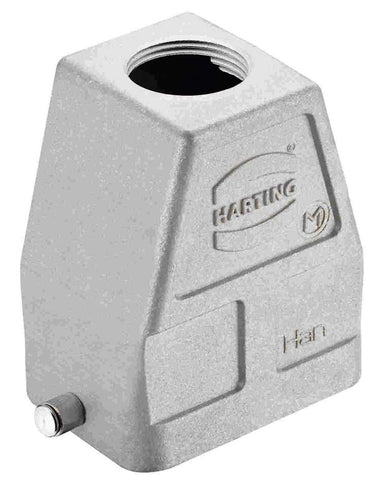

Han 6EMC/B-HTE-HC-for SL-M32-HMC

Product Overview

The Han 6EMC/B-HTE-HC-for SL-M32-HMC is an EMC-shielded connector hood from the Han EMC/B series for industrial applications requiring electromagnetic compatibility protection with high mating cycles capability. Features aluminum die-cast construction with Hood Top Entry configuration and single locking mechanism with M32 cable entry for reliable electrical connections in demanding EMC-sensitive environments with enhanced electromagnetic shielding.

Key Features

• Han EMC/B series with electromagnetic compatibility shielding
• Hood Top Entry (HTE) with High Construction (HC) design
• Size 6B with single locking (SL) lever mechanism
• M32 cable entry for larger cable capacity
• High Mating Cycles (HMC) capability for frequent operations
• Aluminum die-cast construction, uncoated and unpainted

Technical Specifications

• Series: Han® EMC/B (Electromagnetic Compatibility)
• Housing Size: 6B
• Construction: Hood Top Entry (HTE) with High Construction (HC)
• Cable Entry: Top entry, 1 x M32
• Locking System: Single locking (SL) lever
• Mating Cycles: High Mating Cycles (HMC) capability
• Material: Aluminum die-cast, uncoated and unpainted
• EMC Protection: Electromagnetic shielding for sensitive applications
• Standards: EMC compliance standards

Installation Details

• EMC shielding provides protection against electromagnetic interference
• Hood Top Entry configuration for vertical cable routing and access
• High construction design provides enhanced internal volume
• Single locking lever optimized for high mating cycle applications

Applications

• EMC-sensitive industrial automation systems
• Electronic equipment requiring electromagnetic shielding
• Control systems in electrically noisy environments
• Applications demanding high mating cycle capability with EMC protection
• Instrumentation and measurement equipment
• Data processing and communication systems requiring EMC compliance

Compatibility

• Compatible with Han 6B EMC/B series bases and inserts
• Part of Han® EMC/B connector system
• Designed for high mating cycles with EMC protection
• Single locking mechanism for frequent connection operations

Environmental Protection

• EMC Shielding: Electromagnetic compatibility protection
• Construction: Aluminum die-cast for durability and conductivity
• Mating Cycles: High cycle capability for frequent operations
• Performance: Reliable EMC protection in demanding environments

Certifications and Compliance

• EMC Standards: Compliance with electromagnetic compatibility requirements
• Mating Cycles: High Mating Cycles (HMC) capability
• Construction: Professional-grade aluminum die-cast housing
• Origin: Germany

Download existing graphical data for this product:

• Product Data Sheet
• Product Declaration Certificate
• EPLAN Data Portal
