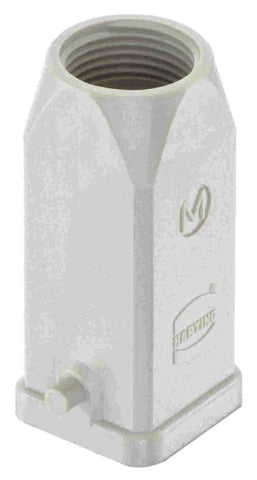

Han 3A Hood Top Entry 2 Pegs M20

Product Overview

The Han 3A Hood Top Entry 2 Pegs M20 (article no. 19 20 003 0420) is a standard industrial connector housing from Harting's Han A series. Features polycarbonate construction in gray (RAL 7037) with single locking lever, top entry M20 cable connection, and 2-peg mounting configuration for secure industrial automation applications requiring excellent mechanical and electrical protection.

Key Features:

• Han 3A size for compact industrial applications
• Top entry design with M20 cable connection
• 2-peg mounting configuration for secure installation
• Polycarbonate construction for durability
• Single locking lever mechanism
• Gray color coding (RAL 7037) for Han A series
• IP44 protection rating (upgradeable to IP67)
• Compatible with Han 3A inserts up to 10A

Applications:

Industrial automation systems, control panels, manufacturing equipment, automotive applications, mechanical engineering installations, process control systems, regulation control applications, demanding industrial environments requiring reliable connections.

Technical Specifications:

• Category: Hoods/Housings
• Series: Han A
• Size: Han 3A
• Material: Polycarbonate construction
• Color: Gray (RAL 7037)
• Cable Entry: Top entry, M20 thread
• Mounting: 2 pegs configuration
• Locking Mechanism: Single locking lever
• Protection Rating: IP44 standard (IP67 with seal screw)
• Current Rating: Up to 10A
• Insert Compatibility: Han 3A series inserts

Design Features

The Han 3A hood provides excellent mechanical and electrical protection in demanding environments. The top entry design allows for convenient overhead cable access, while the 2-peg mounting configuration ensures secure attachment. The single locking lever provides reliable connection with easy operation for field maintenance.

System Benefits:

• Compact 3A size optimizes space utilization
• Top entry configuration simplifies cable routing
• 2-peg mounting provides secure mechanical attachment
• Polycarbonate material offers chemical resistance
• Single lever operation reduces connection time
• Compatible with Han-Easy Lock and Han-Quick Lock systems

Standards:

• Industrial connector housing standards
• Han A series compatibility specifications
• IP protection rating standards (IEC 60529)
• Polycarbonate material standards
• Industrial automation connector requirements

Compliance:

• Harting Han A series specifications
• Industrial automation standards
• Environmental protection requirements
• Mechanical durability standards
• Chemical resistance specifications
