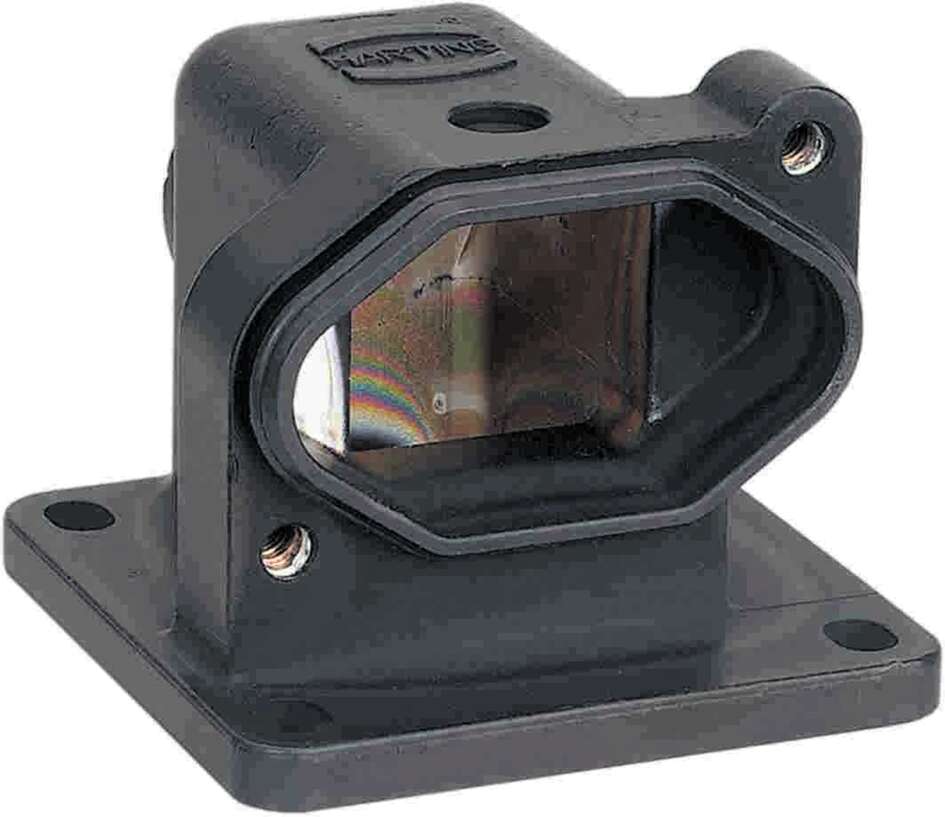

Han 3 HPR angled housing RoHS conf.

Product Overview

The Han 3 HPR Angled Housing is a compact bulkhead-mounted connector housing designed for harsh outdoor environments requiring space-efficient angled cable routing. Features zinc die-cast construction with screw locking mechanism and angled configuration for applications with limited straight-line cable access. Part of the Han® HPR series with size 3A configuration, providing superior environmental protection for demanding industrial applications where compact size and angled orientation are critical.

Key Features

• Bulkhead-mounted housing with angled configuration
• Compact size 3A design for space-constrained applications
• Screw locking mechanism for secure environmental sealing
• Open bottom design with feed-through holes for fixing screws
• Zinc die-cast construction for enhanced durability
• Multiple IP protection ratings: IP65/IP68/IP69
• Powder-coated surface in RAL 9005 (jet black)
• NBR sealing material for environmental protection
• RoHS compliant design for environmental compliance

Technical Specifications

• Housing Size: 3A
• Housing Type: Bulkhead-mounted angled housing
• Configuration: Angled with open bottom
• Locking Type: Screw locking mechanism
• Tightening Torque: 2 Nm (screw locking)
• Temperature Range: -40°C to +125°C
• IP Protection: IP65/IP68/IP69 (IPX9K per ISO 20653)
• UL Type Rating: 4, 4X, 12 (per UL 50/UL 50E)
• Housing Material: Zinc die-cast
• Surface Finish: Powder-coated
• Housing Color: RAL 9005 (jet black)
• Seal Material: NBR (Nitrile rubber)
• Series: Han® HPR
• Application Standard: IEC 61984

Installation Details

• Angled design for space-efficient cable routing
• Open bottom with feed-through holes for panel mounting
• Screw locking mechanism: 2 Nm torque specification
• Compatible with standard panel thicknesses
• Requires appropriate mating housing for complete assembly

Applications

• Compact industrial equipment with space constraints
• Machinery requiring angled cable connections
• Control panels with limited straight-line cable access
• Mobile equipment where space optimization is critical
• Outdoor industrial applications requiring weatherproof connections
• Equipment requiring 90-degree cable routing

Compatibility

• Compatible with Han 3 series connector inserts
• Designed for use with corresponding Han 3 HPR mating housings
• Suitable for various Han 3A insert configurations
• Part of comprehensive Han® HPR connector system

Environmental Protection

• IP65: Complete dust protection and water jet resistance
• IP68: Dust-tight and submersion protection
• IP69: High-pressure, high-temperature washdown protection
• Temperature Range: -40°C to +125°C operational
• Corrosion Resistant: Zinc die-cast construction with protective coating
• Weatherproof: Designed for harsh outdoor environments

Important Configuration

• Angled orientation requires proper cable management planning
• Panel thickness must be within specified range
• Proper sealing requires correct installation procedures
• Environmental protection depends on correct assembly
• Follow torque specifications for optimal performance

Certifications and Compliance

• Standards: IEC 61984, IEC 60529
• UL Type Rating: UL 50/UL 50E (Type 4, 4X, 12)
• CSA Certification: CSA-C22.2 No. 182.3
• Environmental: IP65/IP68/IP69 per IEC 60529
• ISO 20653: IPX9K high-pressure washdown protection
• RoHS: Compliant
• ELV: Compliant
• China RoHS: Compliant
• Country of Origin: Germany

Environmental Compliance

• RoHS compliant design for environmental responsibility
• REACH compliance documentation available
• ELV directive compliant
• Zinc die-cast construction with protective coating
• Designed for harsh outdoor environmental conditions
