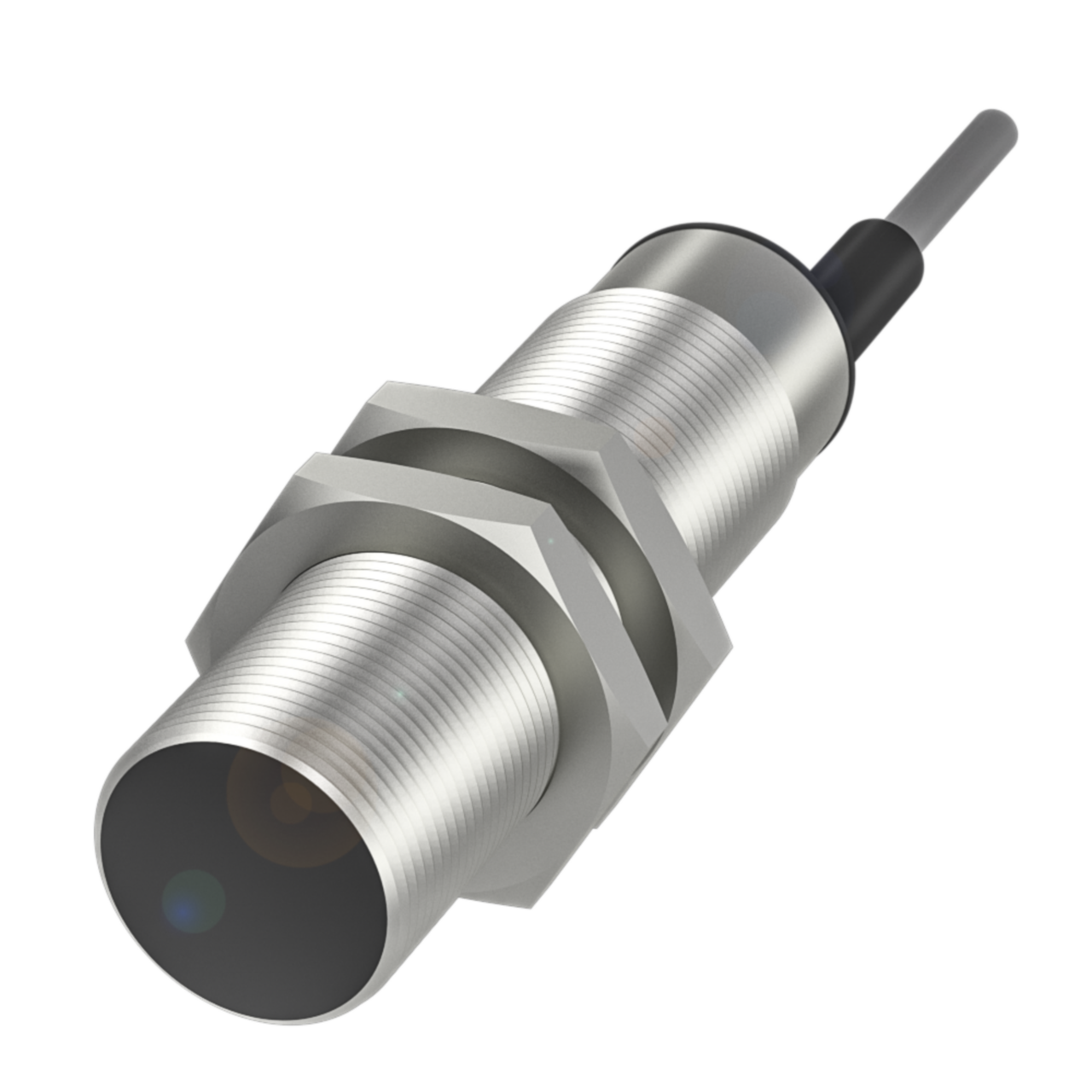

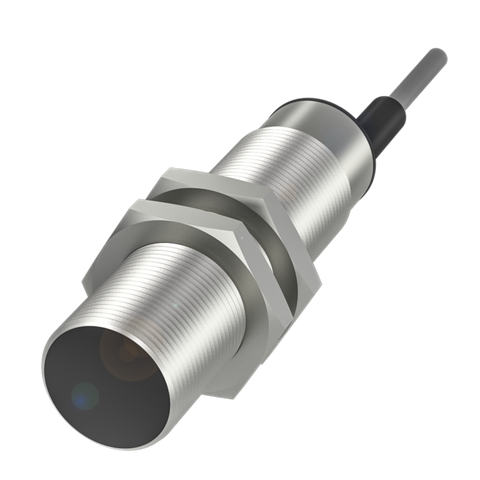

Balluff BCWM18B4M1-ICM80C-DV02 Capacitive sensor Part number BCW0001

The BCWM18B4M1-ICM80C-DV02 is a capacitive sensor with a Ø18 x 65 mm stainless steel (1.4301) housing, designed for flush mounting and sensing over a range of 0 to 8 mm. It operates on 12...35 VDC, switches at frequencies up to 100 Hz, and connects via a 2.00 m PVC cable. With an IP67 rating and an operating temperature range of 10...55 °C, it suits industrial automation applications requiring reliable object detection in enclosed or panel-mounted installations.

Key specifications

• IP rating: IP67
• Operating voltage: 12...35 VDC
• Connection: Cable, 2.00 m, PVC
• Operating temperature: 10...55 °C
• Dimensions: Ø 18 x 65 mm
• Material: 1.4301 stainless steel
