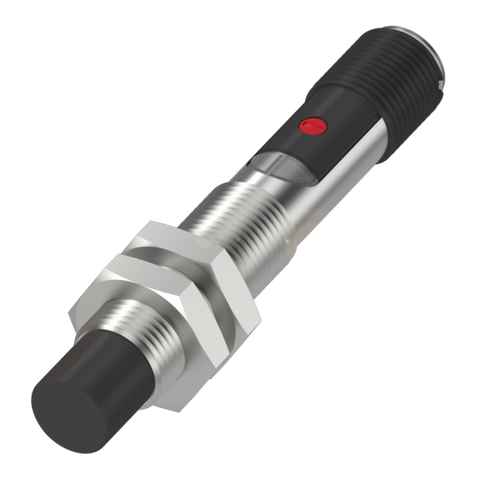

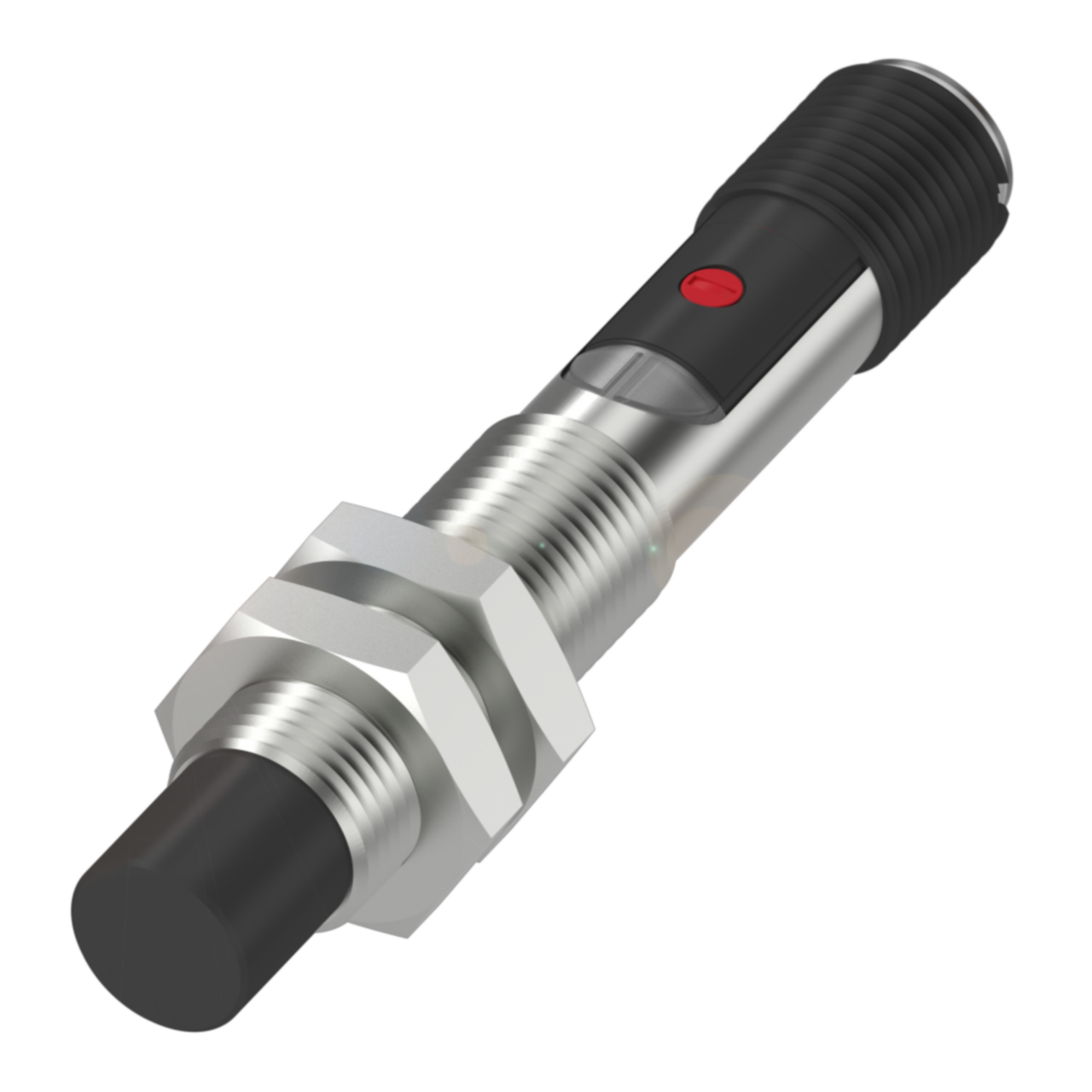

Balluff BCS M12B4E2-PSC80H-S04K Capacitive level sensor Part number BCS00P4

This capacitive sensor detects the presence or level of media through non-metallic vessel walls, using a non-flush installation style for mounting on tanks or containers. It provides a PNP normally open switching output via an M12x1 male connector, operating from 10 to 30 VDC with a switching frequency of 100 Hz. The stainless steel housing and IP67 rating suit installation in industrial process environments where washdown or exposure to moisture is expected, across an ambient temperature range of -25 to 85°C.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Connector, M12x1-Male, 3-pin
• Output: PNP normally open (NO)
• Operating temperature: -25...85 °C
• Dimensions: Ø 12 x 75 mm
