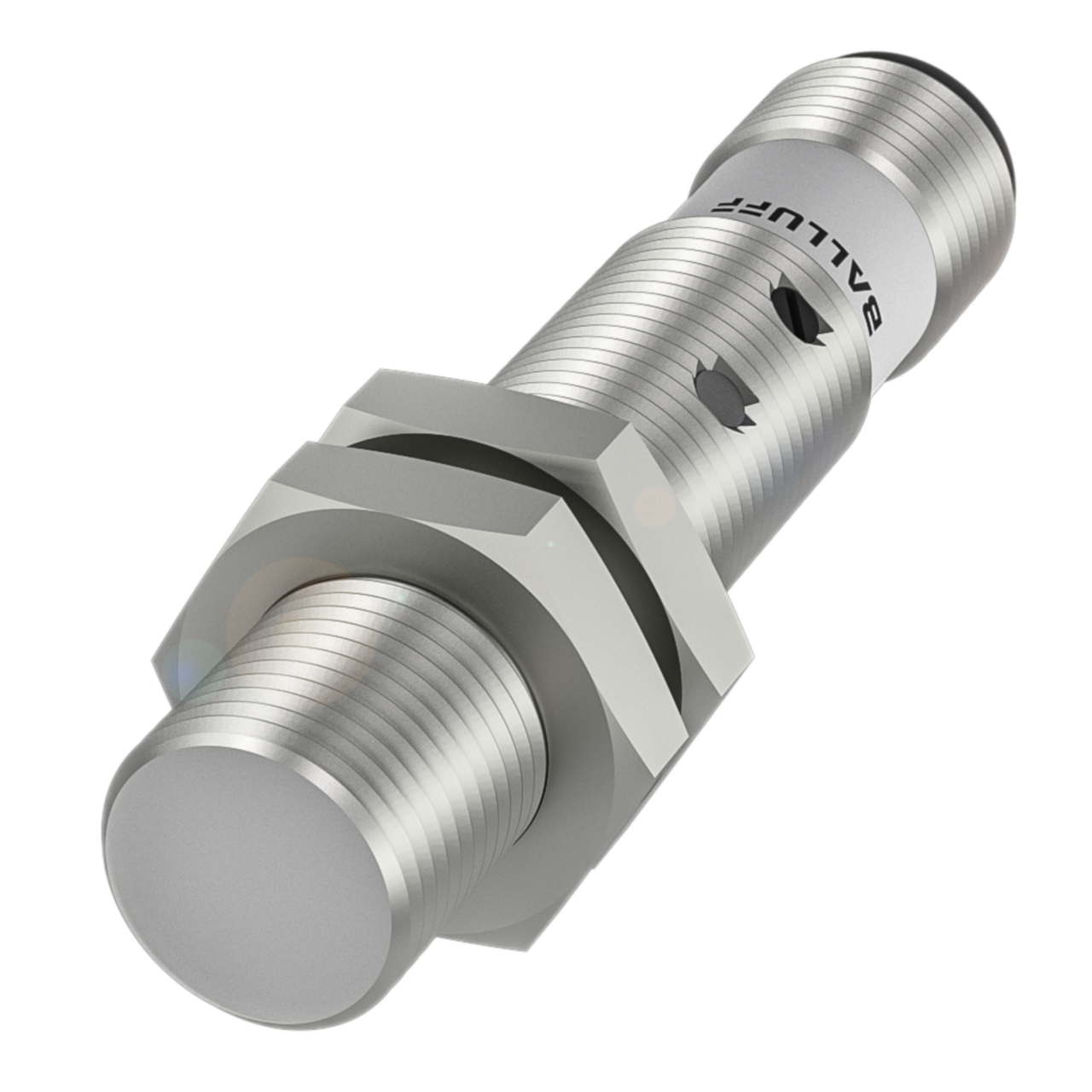

Balluff BCS M12T4D2-PSM40C-S04G Capacitive sensor, PNP, NO Part number BCS0037

The BCS M12T4D2-PSM40C-S04G is a capacitive proximity sensor with a PNP normally open output, housed in a stainless steel M12 barrel with a PTFE sensing surface. It detects objects at a rated operating distance of 4mm and is designed for flush mounting, making it suitable for installations where the sensor face sits level with surrounding machine surfaces. With an IP65 rating and an M12 connector on a 0.30m PUR cable, it is intended for use in industrial automation panels and machinery where protection against dust and water ingress is required.

Key specifications

• IP rating: IP65
• Operating voltage: 12 - 35 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP normally open (NO)
• Mounting: Flush mounting
