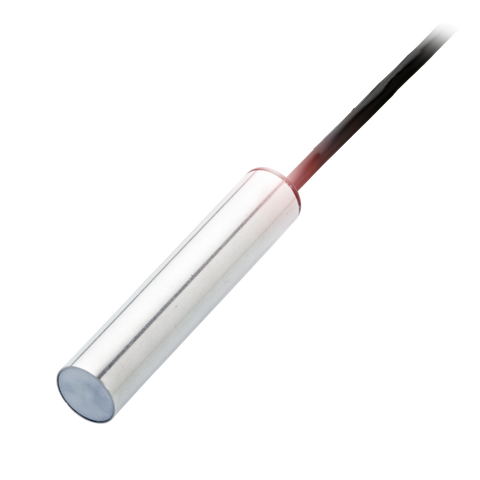

Balluff BCS G10T4H-PSM40C-EP02 Capacitive sensor, PNP, NO
Balluff BCS G10T4H-PSM40C-EP02 Capacitive sensor, PNP, NO

Balluff BCS G10T4H-PSM40C-EP02 Capacitive sensor, PNP, NO

This capacitive sensor is designed for detecting non-metallic objects. It offers an adjustable switching distance of 1 to 4 mm and features short-circuit protection. The sensor operates at voltages from 12 to 35 VDC and is suitable for flush mounting.
Vendor: Balluff
SKU: BCS002T
Availability: In stock
Product type: Field Sensing & Connectivity
Please hurry! Only 1 left in stock
Ask an expert
Description
Description
x

This capacitive sensor is designed for detecting non-metallic objects. It offers an adjustable switching distance of 1 to 4 mm and features short-circuit protection. The sensor operates at voltages from 12 to 35 VDC and is suitable for flush mounting.

Specifications
Specifications
x
IP RatingIP65
Compliance/CertificationsCE UKCA cULus WEEE / IEC 60947-5-2
Material: Housing / GripStainless steel
Material: Jacket / Cover NutPUR
Material: Sensing Surface / ContactsPTFE
SizeD10.0
Cable Length (mm)2 000mm
Conductor Cross-section0.14 mm²
Rated Operating Distance (mm)4mm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)100 Hz
Rated Insulation Voltage75 VDC
Operating Voltage 12 - 35 VDC
Rated Voltage24 V
Mounting TypeFlush mounting
Rated Operating Current200 mA
Documents
Documents
x
Download Datasheet
