Description

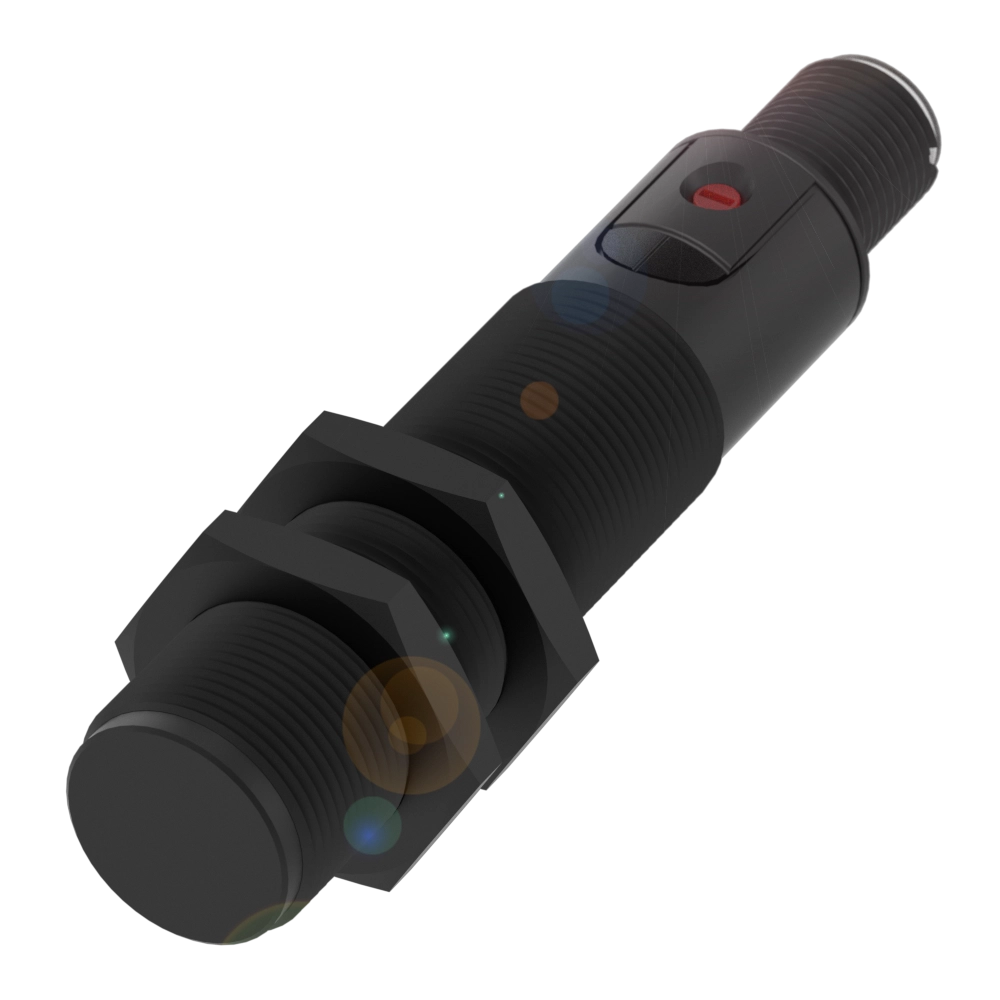

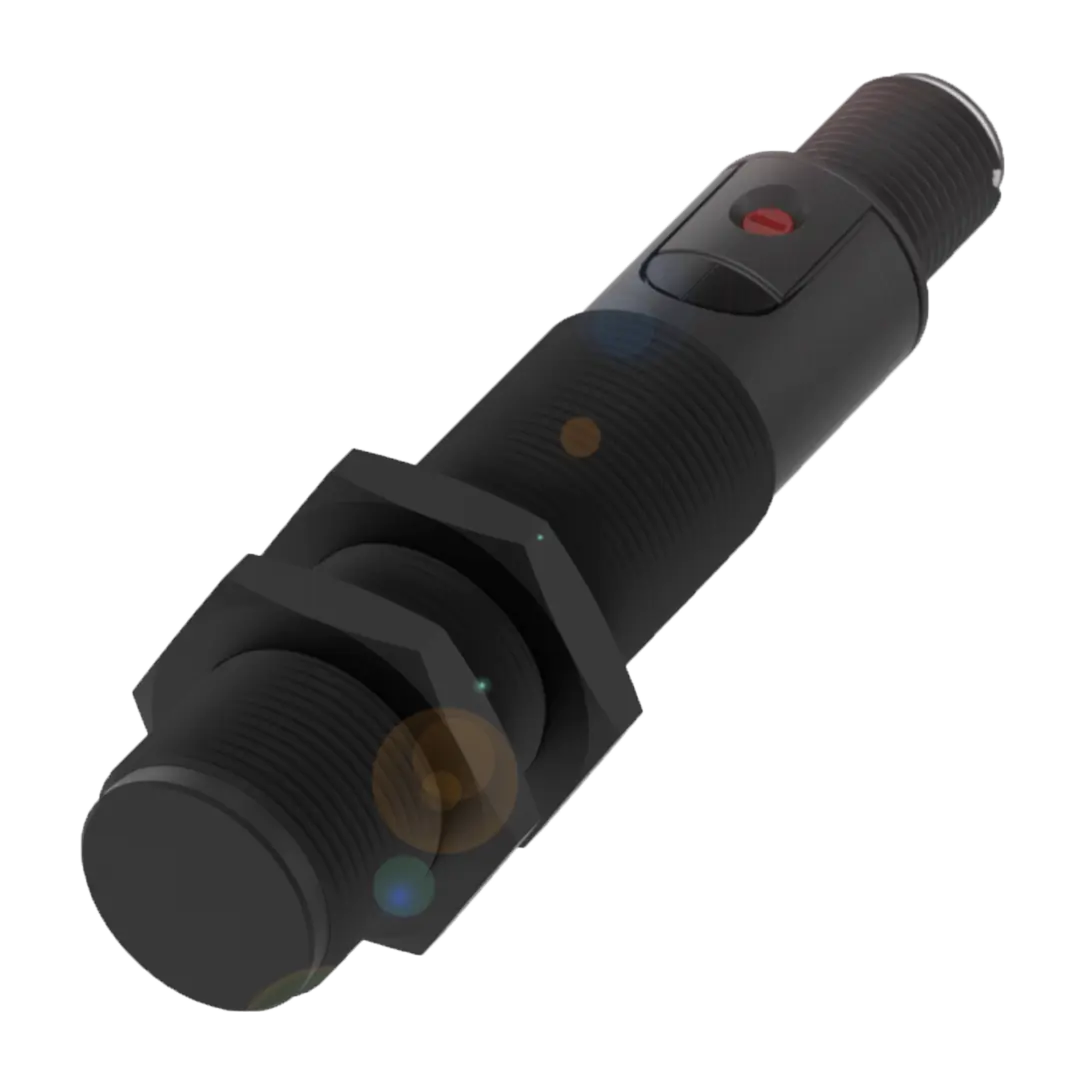

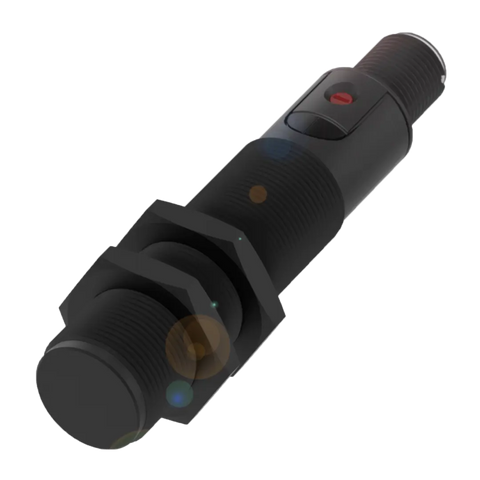

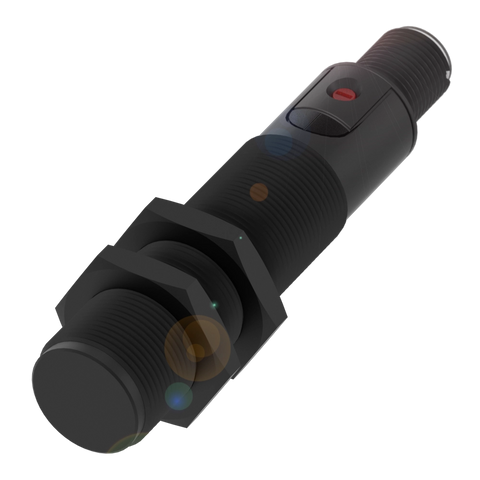

xCapacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE / UKCA / cULus / WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | PBT |
| Material: Jacket / Cover Nut | PA / PBT |
| Material: Sensing Surface / Contacts | PBT |
| Size | M18 x 1 |
| Thread | M18 x 1 |
| Connection Type | M12x1 / Male / 3-pin / A-coded |
| Tightening Torque | 2 Nm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 100Hz |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Current Rating / Rated Current | 100mA |
