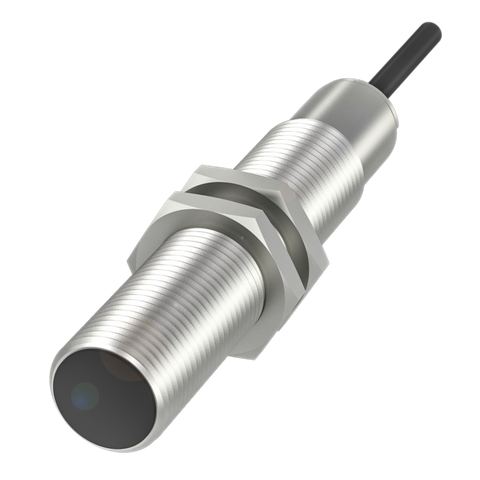

Balluff BCS M12B4I1-PSC40D-EP02 Capacitive sensor
Balluff BCS M12B4I1-PSC40D-EP02 Capacitive sensor

Balluff BCS M12B4I1-PSC40D-EP02 Capacitive sensor

This capacitive sensor features a stainless steel housing and an adjustable switching distance of 1 to 4 mm. It operates with a PNP normally open (NO) output and is ideal for detecting non-metallic objects in industrial environments.
Vendor: Balluff
SKU: BCS00R4
Availability: Out Of Stock
Product type: Field Sensing & Switching
Please hurry! Only 0 left in stock
Description
Description
x

This capacitive sensor features a stainless steel housing and an adjustable switching distance of 1 to 4 mm. It operates with a PNP normally open (NO) output and is ideal for detecting non-metallic objects in industrial environments.

Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationsCE UKCA cULus WEEE / IEC 60947-5-2
Material: Housing / GripStainless steel
Material: Jacket / Cover NutPUR
Material: Sensing Surface / ContactsPBT
Part Length (mm)61mm
Cable Length (mm)2 000mm
Part Diameter (mm)12mm
Cable Diameter (mm)3.5mm
Tightening Torque8 Nm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)100 Hz
Rated Insulation Voltage75 VDC
Operating Voltage 10 - 30 VDC
Rated Operating Current100 mA
Documents
Documents
x
Download Datasheet
