Balluff BCS M08T4E2-PSM30G-S49G Capacitive level sensor Part number BCS002M

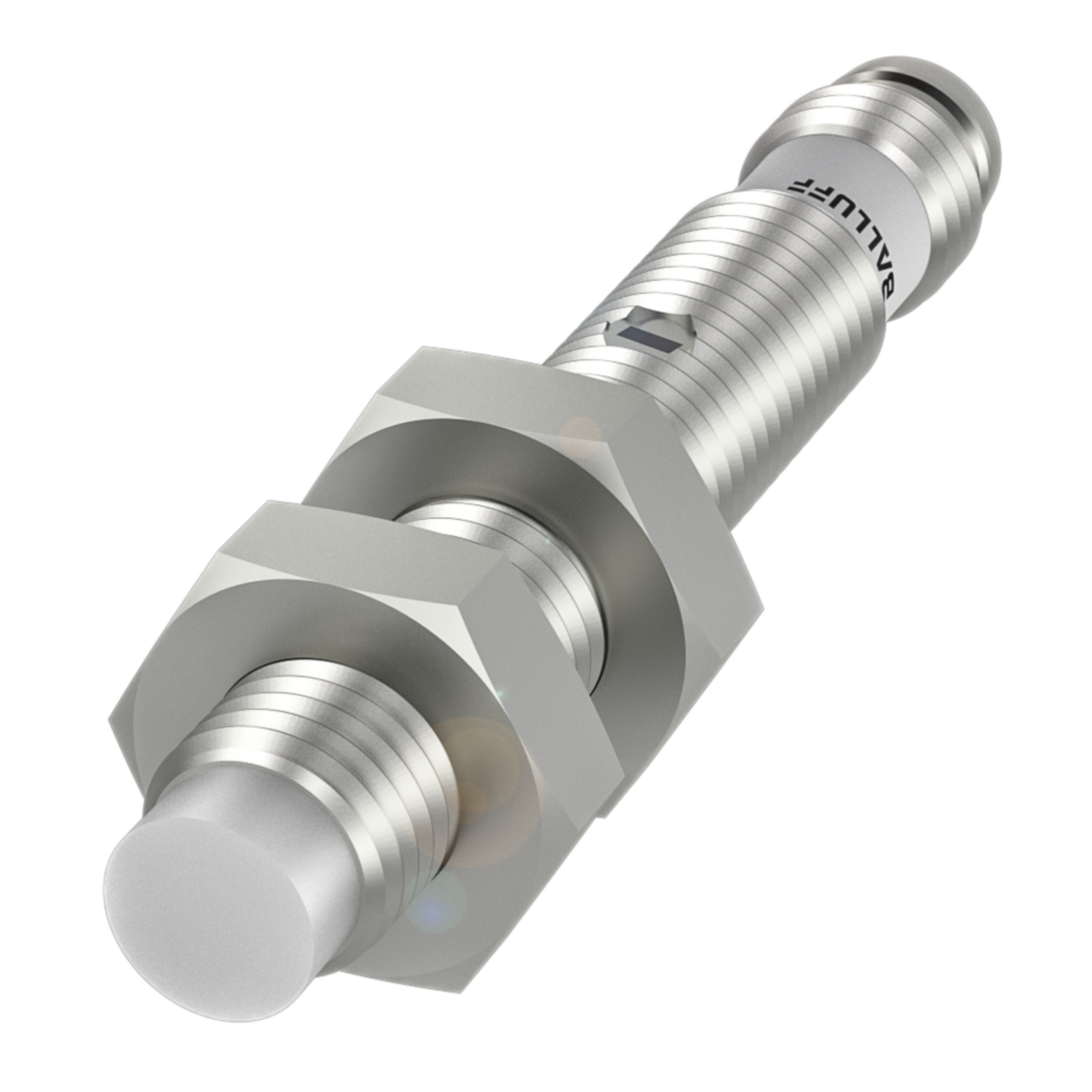

The BCS M08T4E2-PSM30G-S49G is a capacitive level sensor with a stainless steel housing and PTFE sensing surface, housed in an M8, 8mm diameter body for compact installation. It detects at a rated operating distance of 3mm and provides a PNP normally open switching output, operating from 11-30 VDC with an IP65 rating for use in wet or contaminated environments. The non-flush mounting style and M8x1 male 3-pin connector suit installation in panels or machine frames where level or presence sensing of liquids or bulk materials is required.

Key specifications

• IP rating: IP65
• Operating voltage: 11 - 30 VDC
• Rated voltage: 24 V
• Connection: M8x1 / Male / 3-pin
• Output: PNP normally open (NO)
• Mounting: Non-flush mounting
