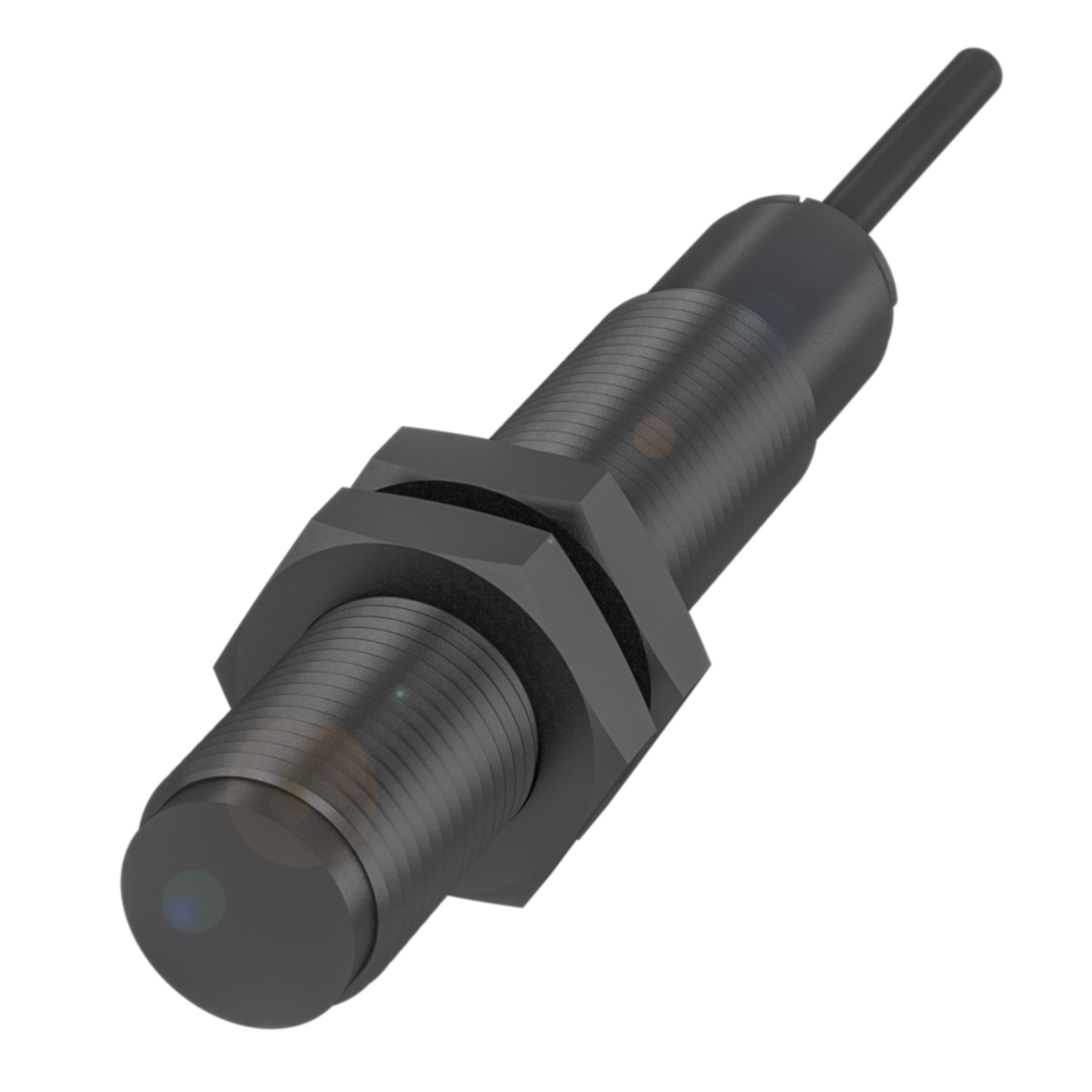

Balluff BCS M12BBI1-PSC40D-EP02 Capacitive sensor Part number BCS00PU

This capacitive sensor detects the presence of materials without requiring direct contact, using a sensing range of 1...4 mm. It is designed for flush mounting and housed in a Ø12 x 61 mm PBT body, making it suitable for compact panel or machine installations where space is limited. The sensor operates on 10...30 VDC, provides a PNP normally open output, and is rated IP67 for use in environments with exposure to dust or moisture, with a 2.00 m PUR cable for connection.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Cable, 2.00 m, PUR
• Output: PNP normally open (NO)
• Operating temperature: -25...85 °C
• Dimensions: Ø 12 x 61 mm
