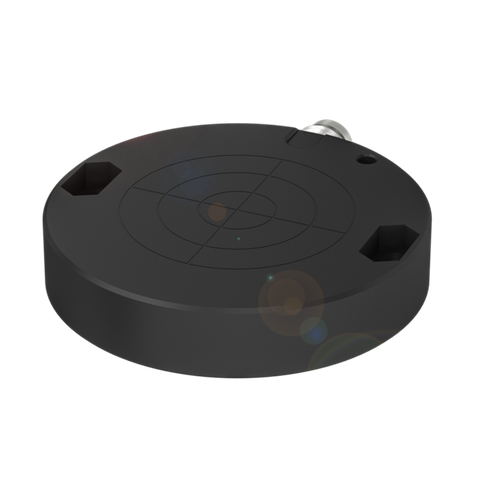

Balluff BCS D50OO03-YPC25C-S49G Capacitive sensor, male Part number BCS003L

This capacitive sensor detects the presence of materials without direct contact, using a sensing range of 2...25 mm. Its Ø 50 x 10 mm housing is designed for flush mounting, suiting installations where the sensor face must sit level with the surrounding surface. The PNP/NPN NO/NC programmable switching output and M8x1 3-pin male connector allow it to be configured for different control circuit requirements, with an IP65 rating supporting use in industrial environments across an operating temperature range of -30...60 °C.

Key specifications

• IP rating: IP65
• Operating voltage: 10...30 VDC
• Connection: Connector, M8x1-Male, 3-pin
• Output: PNP/NPN NO/NC programmable
• Operating temperature: -30...60 °C
• Dimensions: Ø 50 x 10 mm
