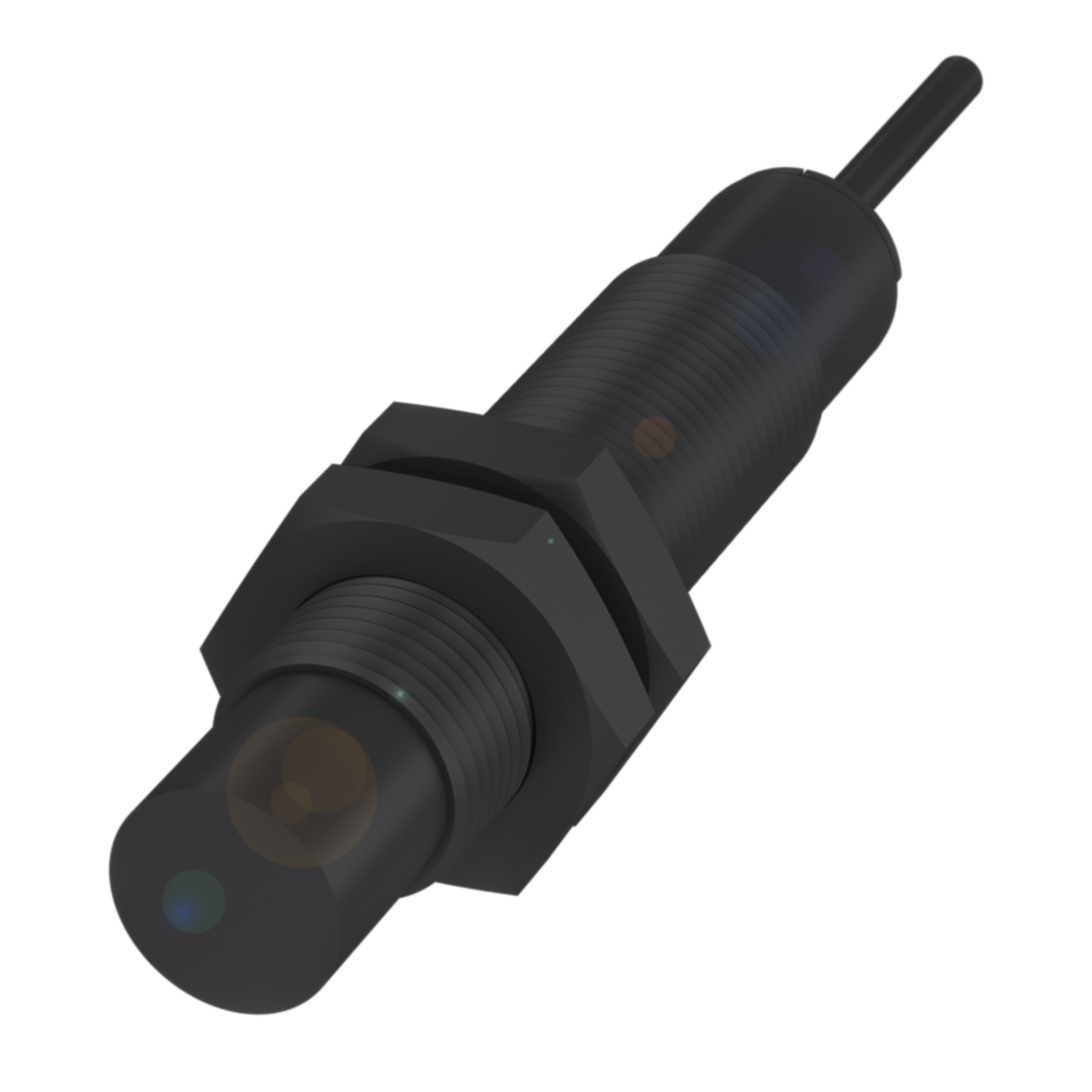

Balluff BCS M12BBG1-PSC80H-EP02 Capacitive level sensor Part number BCS00R0

This capacitive level sensor detects the presence of material through non-metallic vessel walls, using a PBT housing and sensing face in a Ø12 x 61 mm non-flush package. It provides a PNP normally open switching output at up to 100 Hz, operates from 10...30 VDC, and connects via a 2.00 m PUR cable. With an IP67 rating and an operating temperature range of -25...85 °C, it is suited to level detection tasks on tanks and containers in industrial automation panels and machines.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Cable, 2.00 m, PUR
• Output: PNP normally open (NO)
• Operating temperature: -25...85 °C
• Dimensions: Ø 12 x 61 mm
