Description

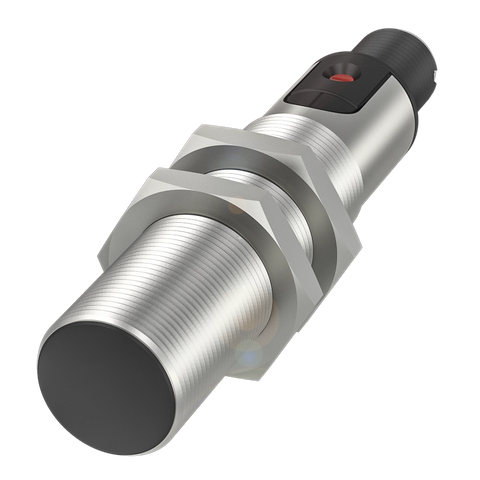

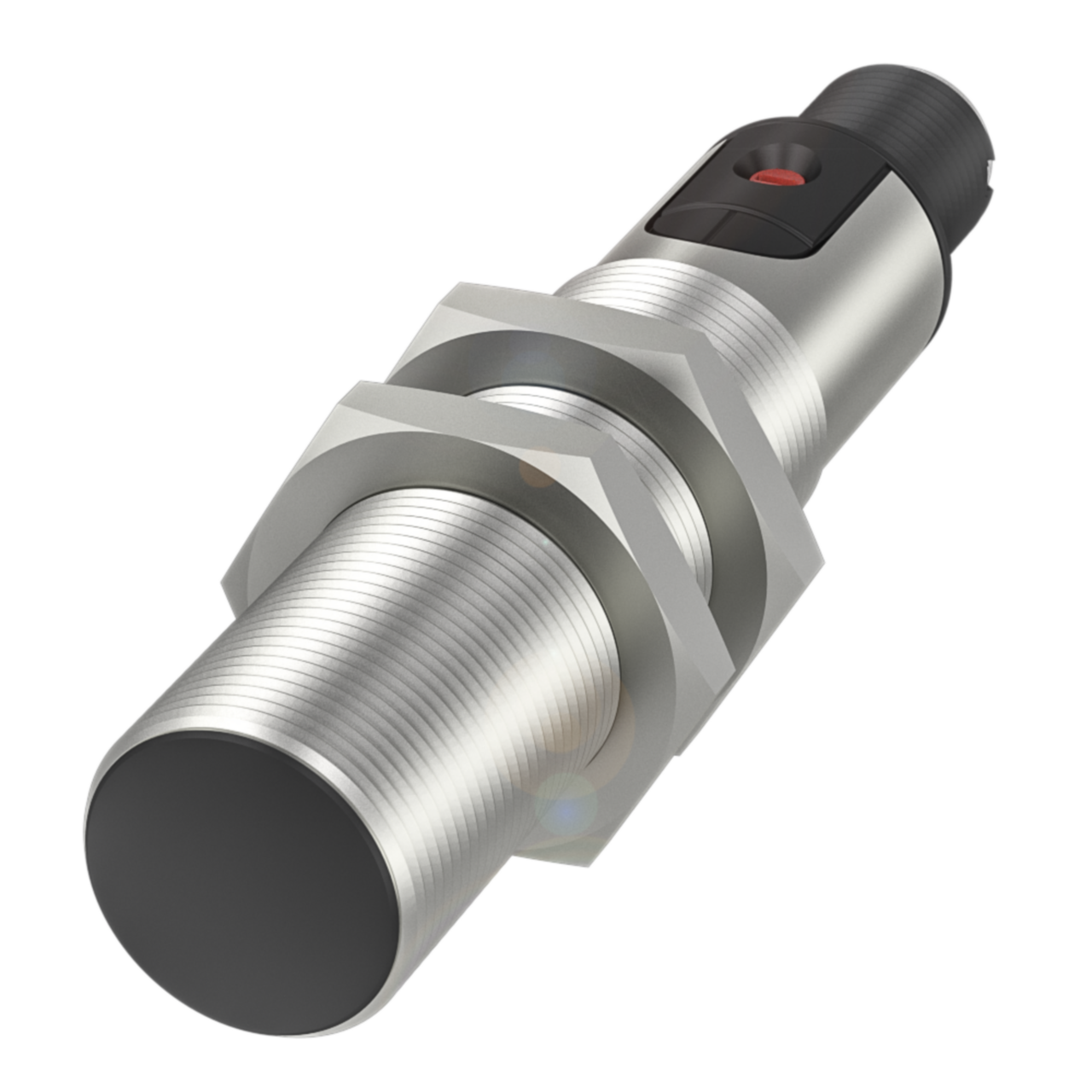

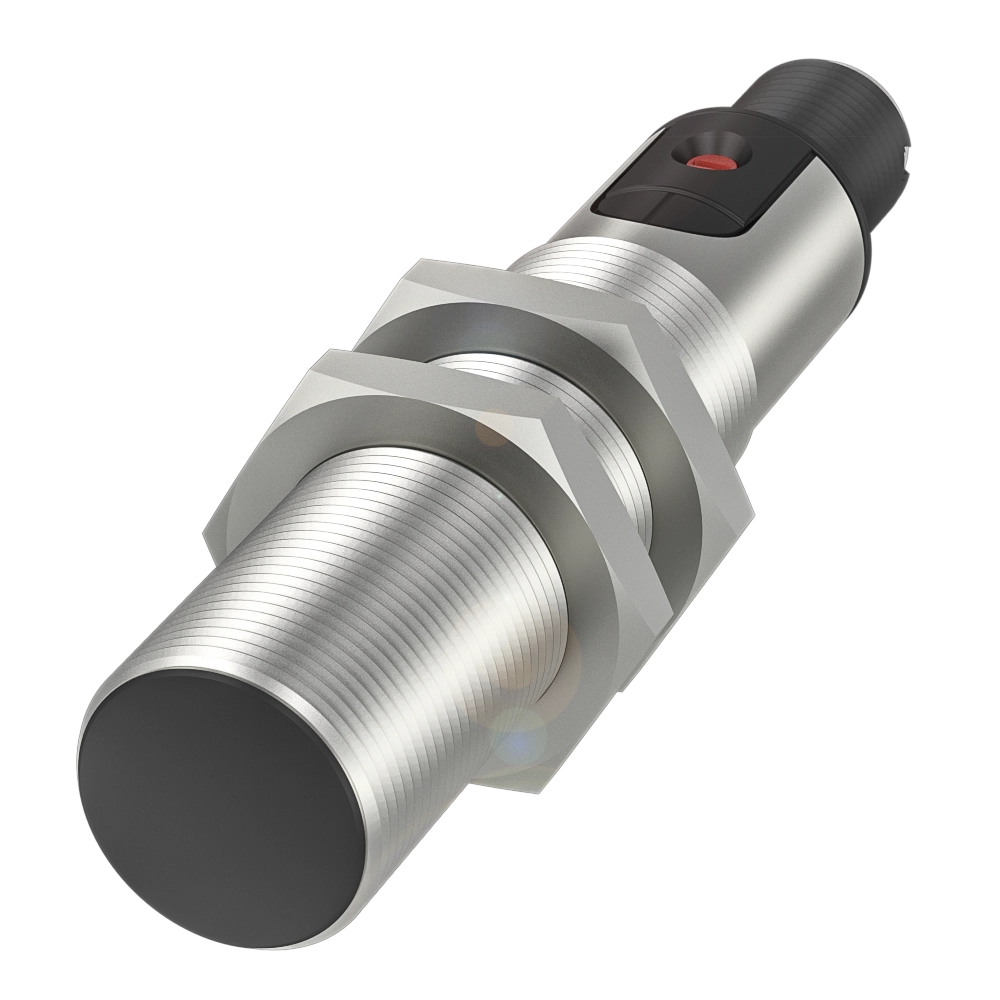

xDimension Ø 18 x 88.5 mm Series M18 Thread (A) M18x1 Installation for flush mounting Connection Connector, M12x1-Male, 3-pin
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE / UKCA / cULus / WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Stainless steel |
| Material: Jacket / Cover Nut | PA / PBT |
| Material: Sensing Surface / Contacts | PBT |
| Connection Type | M12x1 / Male / 3-pin / A-coded |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 100Hz |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Current Rating / Rated Current | 100mA |
