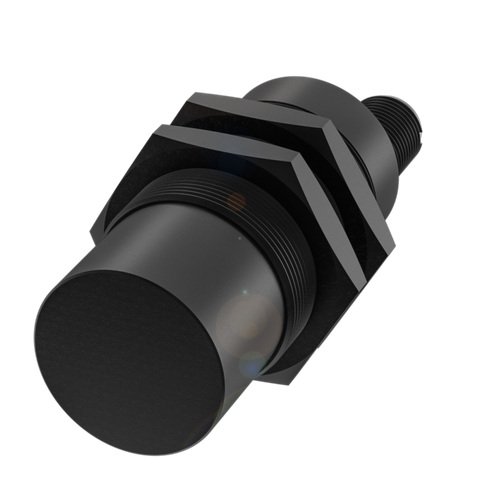

Balluff BCS M30BBE2-PSC25H-S04K Capacitive sensor, PNP Part number BCS00NH

This capacitive sensor detects the presence of both conductive and non-conductive materials without requiring physical contact, making it suitable for level, fill and object detection in a range of industrial applications. The M30, non-flush housing allows for a wider detection field, and the PNP normally open output provides a switched signal at up to 100 Hz. Housed in a PBT body rated IP67, it connects via a 4-pin M12x1 male connector and operates across a supply range of 10...30 VDC and an ambient temperature range of -25...85 °C.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Connector, M12x1-Male, 4-pin
• Output: PNP normally open (NO)
• Operating temperature: -25...85 °C
• Dimensions: Ø 30 x 78.5 mm
