Product Overview

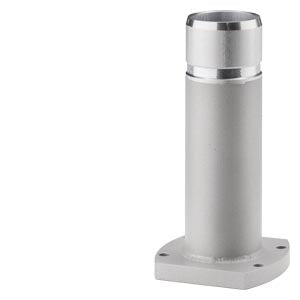

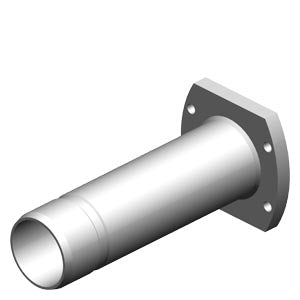

Round pipe adapter for PRO devices (expandable, round pipe) for mounting on a support arm scope of supply: 1 pipe adapter

Key Features

• Support Arm Mounting: Designed specifically for mounting 16:9 widescreen PRO devices on support arms with round pipe connections
• Expandable Design: Accommodates different pipe sizes for flexible installation options
• PRO Device Compatibility: Compatible with 16:9 PRO devices that have extension preparation for support arm mounting
• Complete Kit: Includes one pipe adapter with all necessary mounting components

Technical Specifications

• Article Number: 6AV7674-1KF00-0AA0
• Application: Round pipe adapter for PRO devices with expandable round pipe design
• Mounting Type: Support arm mounting for 16:9 widescreen PRO devices
• Compatibility: PRO devices with round pipe connection and extension preparation
• Physical Properties: Net Weight: 0.877 kg | Packaging: 8.80 x 17.80 x 8.50 cm
• Identifiers: EAN: 4047623407157 | UPC: 804766378010 | Country of Origin: Slovenia

Applications

• Support arm mounting solutions for SIMATIC HMI PRO devices
• Industrial control panel installations requiring flexible positioning
• Machine operator interface installations with space constraints
• Ergonomic positioning of 16:9 widescreen PRO devices in manufacturing environments

Installation Requirements

• Compatibility Note: Not suitable for support arm PRO devices without extension preparation
• Device Requirements: Requires 16:9 widescreen PRO devices with round pipe connection capability
• Support Structure: Must be installed on appropriate support arm infrastructure
• Professional Installation: Recommended for proper mounting and safety compliance

Scope of Supply

• 1 Round pipe adapter
• Mounting hardware and accessories
• Installation documentation

Compliance

• Status: PM300: Active Product | RoHS Compliant since 07.10.2016 | Export Control: AL: N / ECCN: EAR99H
• REACH: Contains Lead in concentrations >0.1% w/w (no risk when used as intended)
• Product Class: A - Standard product which is a stock item

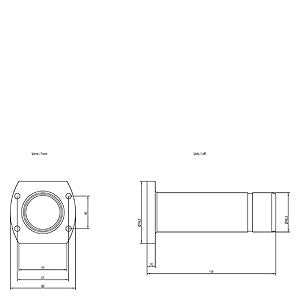

Download existing graphical data for this product:
