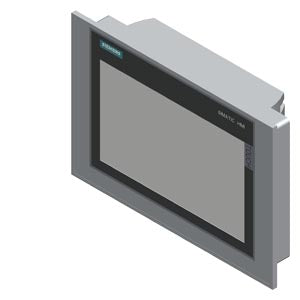

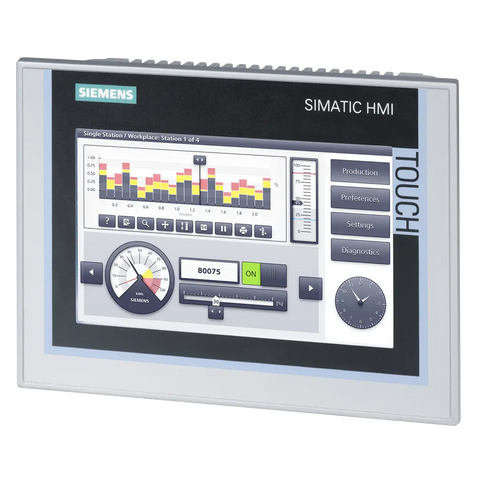

Siemens Simatic HMI TP700 Comfort, touch operation, 7" TFT Part number 6AV2124-0GC01-0AX0

The SIMATIC HMI TP700 Comfort is a compact yet powerful industrial touch panel designed for optimal machine-level operator control and monitoring. This comfort panel features a 7" widescreen TFT display with superior visual clarity, supporting 16 million colors for excellent readability and enhanced user experience.

Key Features

• Display Technology: 7" widescreen TFT display with 800 x 480 resolution
• Color Support: 16 million colors for vivid and detailed process visualization
• Touch Operation: Intuitive touch interface with graphical user interface for easy navigation
• Operating System: Windows CE 6.0 with Microsoft support including security updates
• Configuration Memory: 12 MB for comprehensive project storage
• Connectivity: PROFINET interface and MPI/PROFIBUS DP interface for flexible network integration
• Configuration Software: Compatible with WinCC Comfort V11

Technical Specifications

• Supply Voltage: 24V DC
• Permissible Voltage Range: 19.2-28.8V DC
• Current Consumption: 0.5A

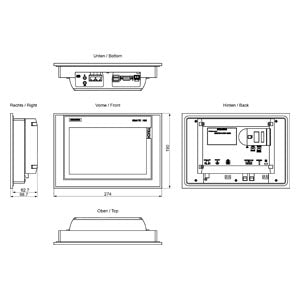

• Display Dimensions: Width 152.2 mm, Height 91.4 mm
• Mounting Cutout: Width 197 mm, Height 141 mm
• Device Depth: 63 mm
• Operating Temperature: 0°C to +50°C
• Protection Rating: IP65 (front panel), IP20 (rear)
• Housing Material: Aluminum die-cast front panel

Design & Durability

• Robust Construction: Durable aluminum die-cast front panel that withstands corrosion and wear
• Weather Protection: IP65-rated panel is dust-tight and protected against low-pressure water jets from any direction
• Energy Efficiency: Adjustable screen brightness with dimming capability to reduce energy consumption
• Data Protection: Built-in energy buffer to back up archived data and properly terminate active archives during power faults

Compliance & Certifications

• Net Weight: 1.598 kg
• Packaging Dimensions: 19.70 x 26.60 x 11.80 cm
• RoHS Compliance: Yes, compliant since November 30, 2015
• Export Control: AL: N / ECCN: 9N9999
• Country of Origin: Germany
• EAN: 4025515079026
• UPC: 040892783421

Environmental & Safety Information

This product complies with WEEE (2012/19/EU) take-back obligations and includes information regarding REACH Article 33 substance disclosures. The device contains certain substances of the candidate list in concentrations higher than 0.1% weight by weight, including Lead, Lead monoxide, Silicic acid (lead salt), Bisphenol A, and Boric acid. Based on current information, these substances do not pose risks when the product is used as intended, including disposal.

Applications

Perfect for industrial automation applications requiring reliable and compact human-machine interface solutions. Commonly used in automotive manufacturing, automated production processes, machinery control, shipping systems, and various industrial monitoring applications. The panel integrates seamlessly into existing SIMATIC automation environments.
