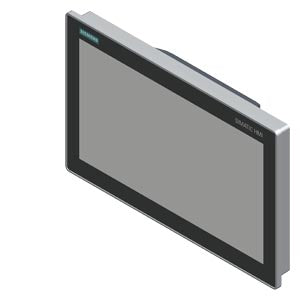

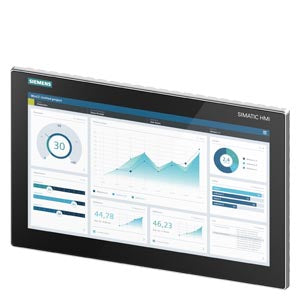

Siemens MTP1500 Unified comfort panel, touch, 15.6" widescreen

Product Overview

SIMATIC HMI MTP1500 Unified Comfort Panel featuring touch operation on 15.6" widescreen TFT display with 16 million colors, PROFINET interface, configurable from WinCC Unified Comfort V16. Advanced operator interface with enhanced hardware performance, proprietary SIMATIC Industrial OS security, and comprehensive connectivity for demanding industrial automation applications.

Key Features

• Advanced Display Technology: 15.6" widescreen TFT display with 16 million colors providing exceptional visual clarity and touch responsiveness for industrial environments
• Enhanced Performance Platform: Next-generation hardware with doubled system limits, SIMATIC Industrial OS security, and WinCC Unified Comfort V16 configuration capabilities
• Comprehensive Connectivity: PROFINET interface, 4x USB 3.1, RS-485 (RS-422 capable), and industrial Ethernet for flexible automation system integration

Technical Specifications

• Article Number: 6AV2128-3QB06-0AX1
• Display: 15.6" widescreen TFT, 16 million colors, touch operation with industrial glove compatibility
• Interfaces: PROFINET, 4x USB 3.1, 1x RS-485 (RS-422 possible), 2x Industrial Ethernet ports

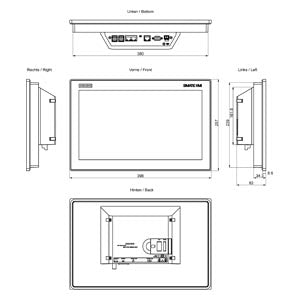

• Physical Properties: Net Weight: 4.300 kg | Packaging: 30.00 x 46.00 x 14.00 cm | Front Height: 257 mm
• Identifiers: EAN: 4047618128012 | UPC: 195125282070 | Country of Origin: Germany

Software & Configuration

• Engineering Software: WinCC Unified Comfort V16 and later versions
• Operating System: Proprietary SIMATIC Industrial OS with enhanced security features
• Open Source Components: Contains open-source software provided free of charge (see enclosed DVD)
• System Updates: Security and firmware updates via TIA Portal or SIMATIC Automation Tool

Applications

Designed for advanced process visualization, machine operation, manufacturing control systems, large-scale automation applications, edge computing integration, and industrial environments requiring high-performance HMI with enhanced security and connectivity features.

Unified Comfort Advantages

• Scalable Platform: Consistent hardware interfaces and functionality across all Unified Comfort Panel sizes (7" to 21.5")
• Industrial Durability: IP65 front protection, operational with standard working gloves, smart touch error detection
• Enhanced Security: Proprietary operating system with configurable interfaces and system apps for maximum protection
• Future-Ready Design: Enhanced processing power for edge applications and complex visualization requirements

Compliance

• Status: PM300: Active Product | RoHS Compliant since 23.04.2023 | Export Control: AL: N / ECCN: 9N9999
• REACH: Contains Silicic acid lead salt, Bisphenol A (BPA), Lead, and Lead monoxide in concentrations >0.1% w/w (no risk when used as intended)

Installation Note: Professional installation required for industrial automation applications. Ensure proper PROFINET network configuration, strain relief installation, and mounting compliance with IP65 front protection requirements.
