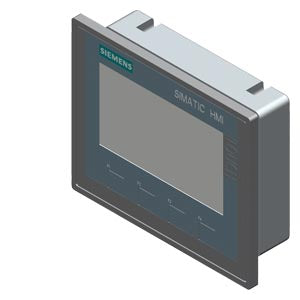

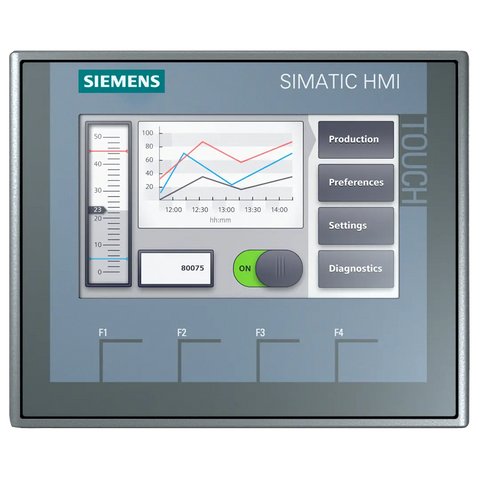

Siemens Simatic HMI KTP400 Basic panel, TFT display Part number 6AV2123-2DB03-0AX0

EAN / Barcode 4034106029203
Product Type Control Panel
Product Class Graphic panel
Category HMI's & PLC's
Sub-category HMI
ETIM Class Graphic panel
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

The SIMATIC HMI KTP400 Basic is a compact industrial human-machine interface panel designed for cost-effective implementation of simple visualization tasks. This 4.3" TFT display panel combines key and touch operation with 65,536 color visualization, offering reliable process monitoring for entry-level automation applications and machine-level control.

Key Features & Specifications

  • Display: 4.3" TFT with LED backlighting, 480 x 272 pixel resolution, 65,536 colors
  • Display Dimensions: 95.04 x 53.856 mm active area, 100% dimmable brightness
  • Operation: Combined key/touch operation with 4 configurable function keys
  • Connectivity: PROFINET interface, USB port for peripherals and data transfer
  • Power: 24V DC supply (19.2-28.8V DC range), 0°C to +50°C operating temperature
  • Protection: IP65 front panel rating, plastic housing construction
  • Dimensions: 141 x 116 x 33 mm (W x H x D)
  • Configuration: Compatible with WinCC Basic V13/STEP 7 Basic V13
  • Additional: Includes open-source software (enclosed CD), supports vertical/horizontal mounting

Applications & Features

Perfect entry-level device for simple HMI tasks in industrial automation, particularly suited for compact plants and smaller applications requiring cost-effective visualization. Features innovative graphical interface, integrated software functions (reporting, recipe management, graphs), and energy-efficient operation. Supports TCP/IP, MODBUS, and EtherNet/IP protocols for versatile connectivity.

Compliance & Certifications

  • Weight: 0.458 kg, Packaging: 12.80 x 19.90 x 5.20 cm
  • Standards: RoHS compliant (since March 2014), IP65 front protection, WEEE compliant
  • Origin: China, EAN: 4034106029203, UPC: 887621830281
  • Safety: Contains REACH substances (Lead, Lead monoxide, Bisphenol A) at <0.1% w/w - no risk when used as intended

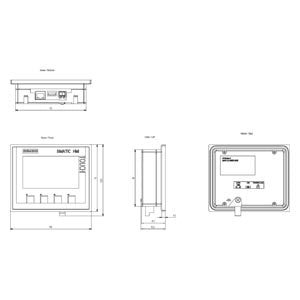

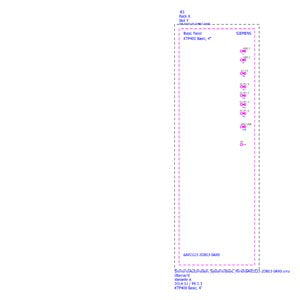

Download existing graphical data for this product:

Technical Specifications

Built-in depth34.9 mm
Colour displayYes
Current Consumption125 mA
Degree of protection (IP), front sideIP65
Height of the front116 mm
IP RatingIP (at the front) IP65 IP (rear) IP20
Number of colours of the display65536
Number of function buttons, programmable4
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces USB1
Number of interfaces PROFINET1
Number of online languages10
Number of password levels50
Number of pixels, horizontal480
Number of pixels, vertical272
Operating temperature0 °C
Packaging size / unitpc(s)
Part Depth (mm)34.9mm
Part Height (mm)100mm
Part Width (mm)140mm
Process default value (input) possibleYes
Process value representation (output) possibleYes
Screen diagonal4.3 inch
Supply Voltage24 V (DC Rated Value) / 19.2 V (DC Lower Limit) / 28.8 V (DC Upper limit)
Supply voltage DC28.8 V
Supporting protocol for EtherNet/IPYes
Supporting protocol for ModbusYes
Supporting protocol for other bus systemsYes
Supporting protocol for TCP/IPYes
Temperature: Operating0°C - +50°C
Touch technologyResistive touch
Type of VoltageDC
Useful project memory/user memory10000 kByte
Voltage type (supply voltage)DC
Weight (g)360g
Width of the front140 mm
With alpha numeric keyboardYes
With message indicationYes
With message system (incl. buffer and confirmation)Yes
With numeric keyboardYes
With recipesYes
Country of OriginGermany
View complete specifications on Siemens
