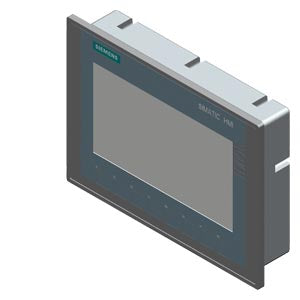

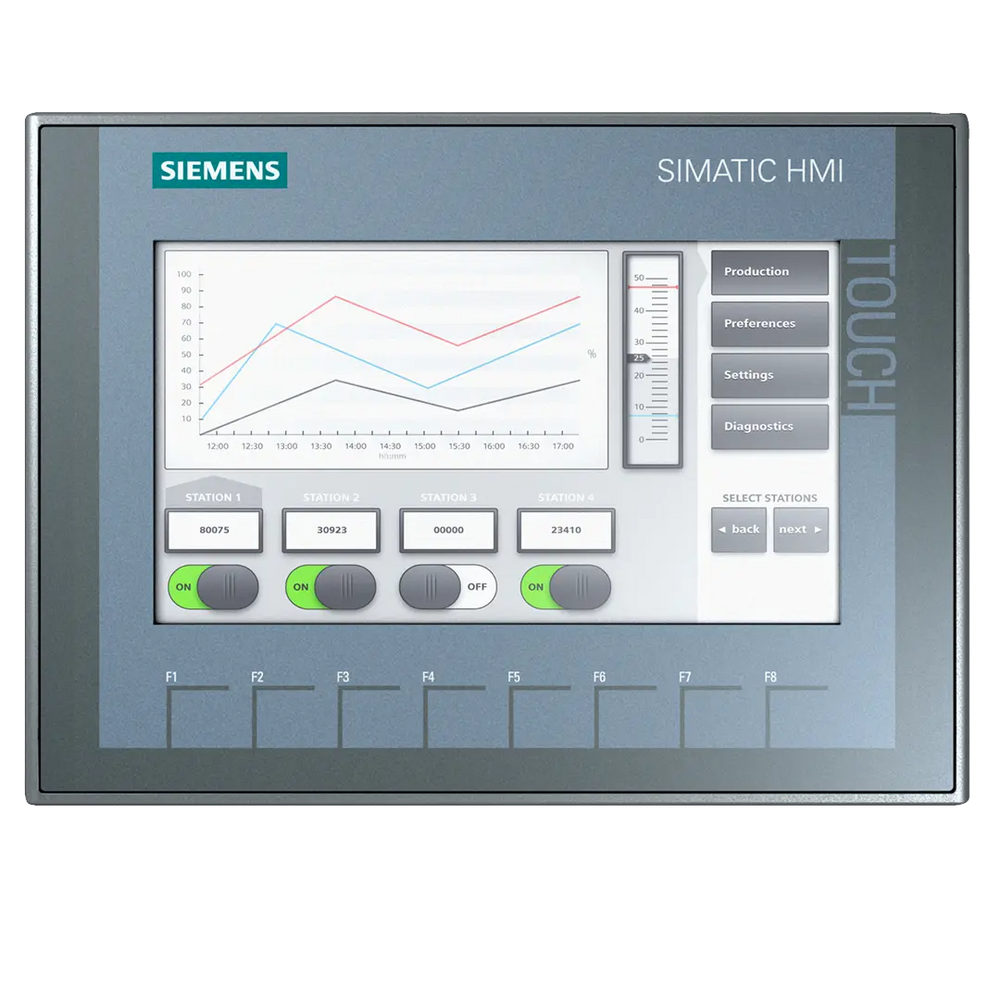

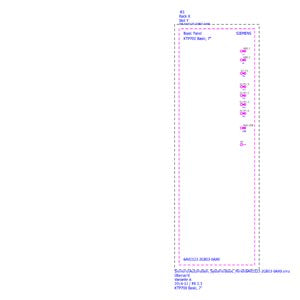

Siemens Simatic HMI KTP700 Basic panel, 7" TFT display Part number 6AV2123-2GB03-0AX0

The SIMATIC HMI KTP700 Basic is a compact and efficient industrial human-machine interface panel designed for straightforward visualization tasks at the machine level. This basic panel combines key and touch operation capabilities with a 7" TFT display, offering reliable process visualization for simple operation and monitoring applications. The panel features an innovative graphical user interface that provides enhanced user experience while maintaining cost-effectiveness for budget-friendly HMI tasks.

Key Features

• Display Technology: 7" TFT display with 800 x 480 pixel resolution
• Color Support: 65,536 colors for clear and detailed process visualization
• Operation Methods: Combined key and touch operation for flexible user interaction
• Function Keys: 8 configurable function keys for enhanced operational control
• Display Properties: Dimmable backlight up to 100% for optimal flexibility and ambient light adjustment
• Configuration Software: Compatible with WinCC Basic V13 and STEP 7 Basic V13
• Connectivity: PROFINET interface (Ethernet) for network integration
• Additional Features: Contains open-source software provided free of charge (see enclosed CD)

Technical Specifications

• Display Size: 7" TFT display
• Display Resolution: 800 x 480 pixels

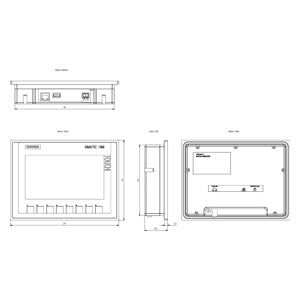

• Display Dimensions: 154.1 mm (width) x 85.9 mm (height)
• Active Display Area: 170.5 mm (length) x 102.5 mm (width)
• Number of Function Keys: 8 keys
• Interface: PROFINET (Ethernet/TCP/IP) interface
• Additional Ports: USB port for connectivity and data transfer
• Supply Voltage: 24V DC (19.2-28.8V DC permissible range)
• Operating Temperature: 0°C to +50°C
• Protection Rating: IP65 (front panel) - dust-tight and protected against low-pressure water jets
• Overall Dimensions: Standard panel mounting configuration

Design & Construction

• Material: Robust construction designed for industrial environments
• Mounting: Standard panel mounting with IP65 protection class
• User Interface: Innovative graphical user interface providing enhanced operation capabilities
• Vertical Configuration: Supports both vertical and horizontal mounting orientations
• Color Depth: High resolution and 64,000 color depth facilitate improved process visualization
• Touch Screen: Reliable touch technology for consistent operation in harsh environments
• Energy Efficiency: 100% dimmable brightness for energy savings and optimal visibility

Protocol Support

• Primary Protocols: TCP/IP, MODBUS, EtherNet/IP
• Network Integration: PROFINET interface for seamless PLC connectivity
• USB Interface: Supports connection of keyboard, mouse, or barcode scanner
• Data Transfer: Easy data archiving and transfer capabilities via USB

Compliance & Certifications

• Net Weight: 0.977 kg
• Packaging Dimensions: 20.50 x 27.60 x 7.80 cm
• RoHS Compliance: Yes, compliant since March 19, 2014
• Export Control: AL: N / ECCN: N
• Country of Origin: China
• EAN: 4034106029210
• UPC: 887621773120

Environmental & Safety Information

This product complies with WEEE (2012/19/EU) take-back obligations and includes information regarding REACH Article 33 substance disclosures. The device contains certain substances of the candidate list in concentrations higher than 0.1% weight by weight, including Lead, Lead monoxide, Silicic acid (lead salt), and Bisphenol A. Based on current information, these substances do not pose risks when the product is used as intended, including disposal.

Applications

Perfect for simple visualization tasks in industrial automation environments, particularly suited for newcomers aiming to operate and monitor basic machinery and plant setups. Ideal for compact plants, smaller manufacturing processes, machine-level control applications, and various automated systems requiring reliable yet cost-effective operator interface solutions.

Enhanced Usability Features

The KTP700 Basic allows for considerably increased process quality with compact plants and smaller applications. Featuring all important HMI basic functions, this SIMATIC HMI Basic Panel opens up new possibilities for operation and monitoring in mechanical engineering applications at a particularly attractive price point. The panel supports integrated software functions such as reporting systems, recipe management, and graph functions.
