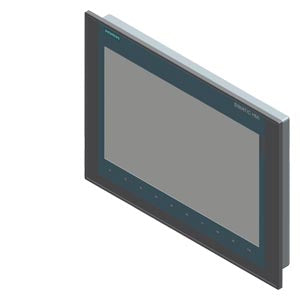

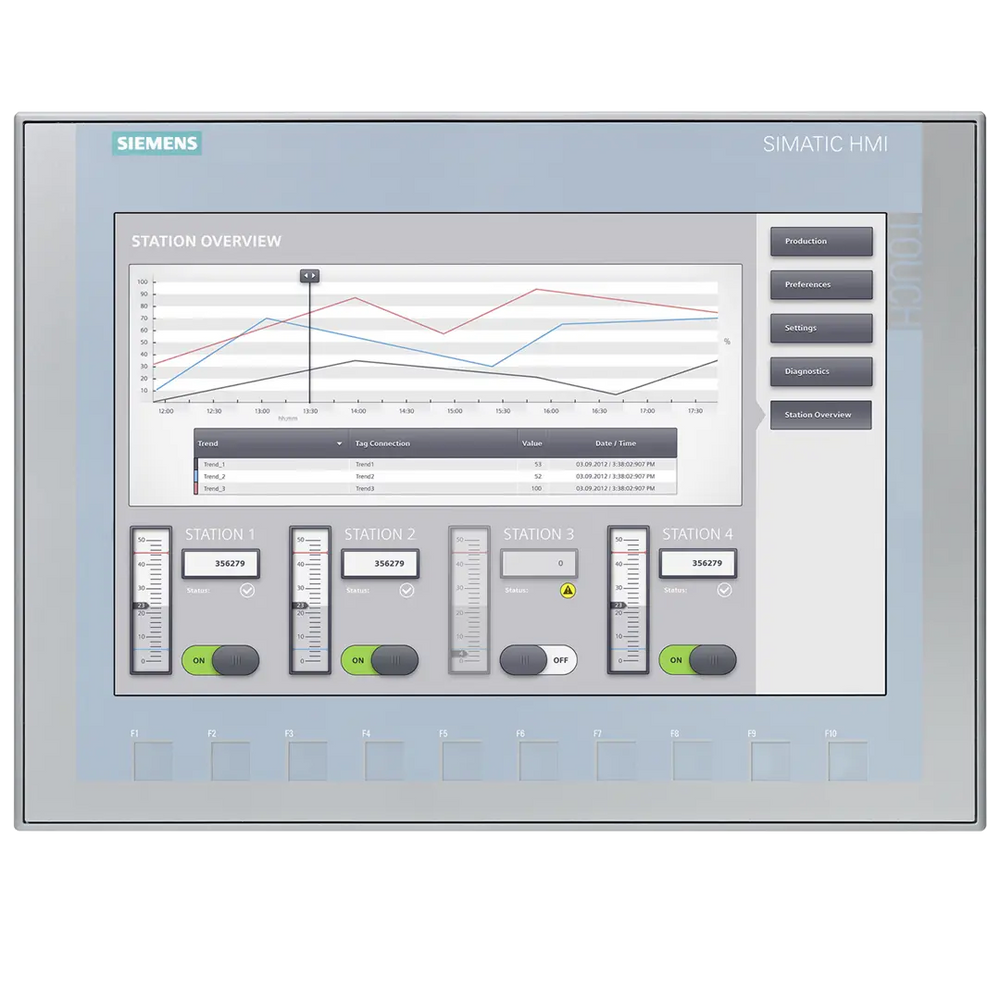

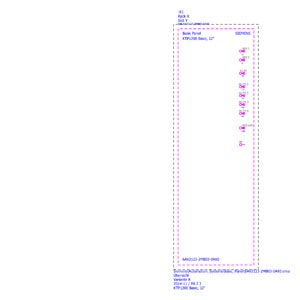

Siemens Simatic HMI KTP1200 Basic panel, 12" TFT display Part number 6AV2123-2MB03-0AX0

The SIMATIC HMI KTP1200 Basic is a versatile industrial human-machine interface panel designed for medium to upper-level S7-1200 controller systems. This basic panel combines key and touch operation capabilities with a large 12" TFT display, offering enhanced process visualization for entry-level HMI applications. The panel features an innovative graphical user interface with user-friendly touch screens and freely configurable function keys.

Key Features

• Display Technology: 12" TFT display with high resolution for clear visualization
• Color Support: 65,536 colors for detailed process visualization
• Operation Methods: Combined key and touch operation for flexible user interaction
• Display Properties: Dimmable backlight up to 100% for optimal flexibility and ambient light adjustment
• Configuration Software: Compatible with WinCC Basic V13 and STEP 7 Basic V13
• Connectivity: PROFINET interface for versatile network integration
• Additional Features: Contains open-source software provided free of charge (see enclosed CD)

Technical Specifications

• Display Size: 12" TFT widescreen display
• Display Resolution: Based on high-resolution technology for superior clarity

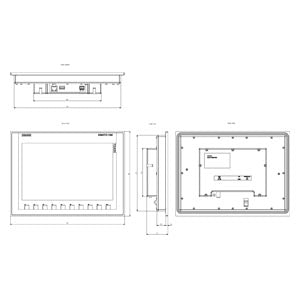

• Display Dimensions: 280.5 mm (length) x 183 mm (width)
• Operation Types: Key operation and touch operation
• Interface: PROFINET for network connectivity
• Supply Voltage: 24V DC
• Operating Temperature: 0°C to +50°C
• Protection Rating: IP65 (front panel) - dust-tight and protected against low-pressure water jets
• Mounting: Standard panel mounting configuration

Design & Functionality

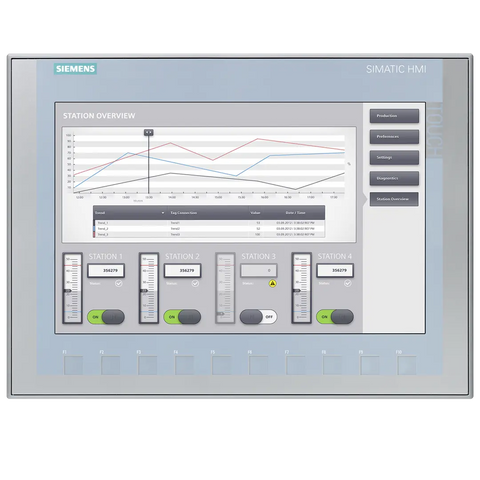

• User Interface: Innovative graphical user interface providing great variety in user experience and operation
• Function Keys: 10 configurable function keys for enhanced operational flexibility
• USB Interface: Facilitates connection of keyboard, mouse, or barcode scanner and supports easy data archiving on USB stick
• Vertical Configuration: Supports vertical configuration for flexible installation options
• Data Backup: Energy buffer capability for data protection during power interruptions

Compliance & Certifications

• Net Weight: 2.050 kg
• Packaging Dimensions: 29.60 x 39.90 x 9.30 cm
• RoHS Compliance: Yes, compliant since September 5, 2014
• Export Control: AL: N / ECCN: N
• Country of Origin: China
• EAN: 4034106029241
• UPC: 887621895433

Environmental & Safety Information

This product complies with WEEE (2012/19/EU) take-back obligations and includes information regarding REACH Article 33 substance disclosures. The device contains certain substances of the candidate list in concentrations higher than 0.1% weight by weight, including Lead, Lead monoxide, Silicic acid (lead salt), and Bisphenol A. Based on current information, these substances do not pose risks when the product is used as intended, including disposal.

Applications

Perfect for medium and upper S7-1200 controller applications requiring reliable human-machine interface solutions. Ideal for industrial automation in manufacturing processes, machinery control, plant monitoring, and various automated systems. The panel provides excellent interaction capabilities with PLCs through PROFINET interface, making it suitable for diverse industrial environments.

Enhanced Usability Features

The KTP1200 Basic offers considerably increased process quality for compact plants and smaller applications. With all important HMI basic functions included, this panel opens up new possibilities for operation and monitoring in mechanical engineering applications at an attractive price point.
