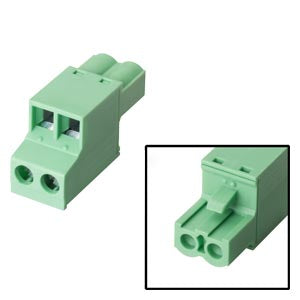

Siemens Connector, female, 2-pin, type 1
Log in to view pricing
Sign in with your trade account to access live pricing and place orders. New to Rubicon Industrial Technology? Create an account in seconds.
Product Description
Product Overview
Plug, female, 2-pole, type 1, grid size 5.08 mm, scope of supply: 10 plugs
Key Features
- Service Package: Complete set of 10 female connectors for SIMATIC HMI panels maintenance and replacement
- Universal Compatibility: Designed for all SIMATIC HMI panels (except key panels) with 24V DC power supply
- Standardized Connection: 2-pole female connector with 5.08mm grid size for reliable electrical connections
- Quality Construction: Type 1 connector with wire cross-section compatibility up to 0.75 mm²
Technical Specifications
- Article Number: 6AV6671-8XA00-0AX0
- Connector Type: Female, 2-pole, Type 1
- Grid Size: 5.08 mm
- Voltage Rating: 24V DC
- Wire Cross-Section: Up to 0.75 mm²
- Physical Properties: Net Weight: 0.064 kg | Packaging: 9.30 x 11.20 x 2.80 cm
- Identifiers: EAN: 4025515077213 | UPC: 662643343298 | Country of Origin: Germany
Applications
- Power connection for SIMATIC HMI panels and devices
- Maintenance and service replacement for existing HMI installations
- 24V DC power supply connections in industrial automation systems
- Field wiring for HMI panel installations and retrofits
Scope of Supply
- 10 female plugs (2-pole, Type 1)
- Compatible with 5.08mm grid spacing
- Suitable for wire cross-sections up to 0.75 mm²
Compatibility
- Compatible with: All SIMATIC HMI panels with 24V DC power supply
- Not compatible with: Key panels (specific exclusion noted)
- Installation: Standard plug-in connection with secure retention
- Maintenance: Suitable for field replacement and service applications
Installation Notes
- Wire Preparation: Compatible with wire cross-sections up to 0.75 mm²
- Connection Method: Standard plug-in installation with secure retention mechanism
- Grid Spacing: 5.08mm spacing ensures compatibility with standard HMI terminals
- Service Package: Bulk quantity (10 pieces) ideal for maintenance inventory
Compliance
- Status: PM300: Active Product | RoHS Compliant since 15.08.2008 | Export Control: AL: N / ECCN: N
- REACH: Contains Lead in concentrations >0.1% w/w (no risk when used as intended)
- Product Class: A - Standard product which is a stock item
Download existing graphical data for this product:
Additional Information
| Part Width (mm) | 9,30mm |
| Part Height (mm) | 11,20mm |
| Part Depth (mm) | 2,80mm |
| Weight (g) | 0,063 Kg |
| description | plug, female, 2-pole, type 1, grid size 5.08 mm, scope of supply: 10 plugs |
| country_of_origin | Germany |
Technical Documentation & Downloads
Videos & Interactive Media
Product Media
Add Siemens videos or media manifest entries to showcase this product.
Interactive 3D CAD Model
🛠 Siemens 3D CAD Viewer Interactive
📄
Part Number: 6AV66718XA000AX0
🌐
Source: Siemens PartCommunity
📥
Downloads: STEP, DWG, 3DS, and more formats available
Tip: Use your mouse to rotate, zoom, and pan the 3D model. Click "Open Full Screen" for additional download options including STEP, DWG, 3DS, and other CAD formats.
