Siemens Pin busbar, touch-safe, 1-phase , 1016mm long, 16mm² Part number 5ST3701

Product Overview

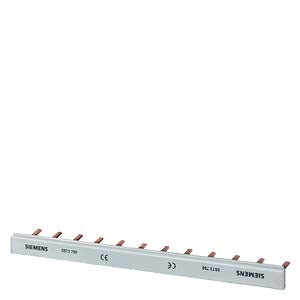

The Siemens 5ST3701 is a high-quality single-phase pin busbar designed for professional electrical distribution systems in modular installation devices. This touch-safe pin busbar features a 16 mm² cross-section, 1-phase configuration, and 1016 mm length that can be cut to size, making it ideal for creating custom electrical distribution solutions in residential, commercial, and industrial panel installations without requiring end caps.

Key Features

• Touch-Safe Design: Provides enhanced safety protection against accidental contact during installation and operation
• Single-Phase Configuration: Optimized for 1-phase electrical distribution systems
• 16 mm² Cross-Section: Suitable for medium-current applications with reliable current-carrying capacity
• Customizable Length: 1016 mm long busbar can be cut to required dimensions for flexible installation
• No End Caps Required: Designed for direct installation without additional termination accessories
• German Engineering: Manufactured in Germany ensuring premium quality and reliability

Technical Specifications

• Phase Configuration: 1-phase
• Cross-Section: 16 mm²
• Length: 1016 mm (can be cut)
• Design: Touch-safe pin busbar
• End Caps: Not included (not required)
• Net Weight: 0.201 kg
• Packaging Dimensions: 100.00 x 1020.00 x 80.00 mm
• Country of Origin: Germany
• EAN: 4001869209227

Applications

This single-phase pin busbar is particularly suitable for:

• Single-phase electrical distribution panels
• Residential electrical panel installations
• Commercial building electrical systems
• Industrial control panel assemblies
• Modular installation device connections
• Electrical panel board modifications
• Distribution system upgrades
• Custom electrical distribution solutions
• Building automation systems
• Small commercial electrical installations

Compliance & Certifications

• RoHS Compliance: Compliant since January 1, 2006
• WEEE Directive: Subject to take-back obligations under directive 2012/19/EU
• REACH Regulation: Currently no SVHC substances identified above 0.1% w/w threshold
• Export Control: AL: N / ECCN: N
• Product Class: A - Standard product with standard return guidelines

Product Classification

• eClass: 27-37-13-06 (versions 6-14)
• ETIM: EC000215 (versions 7-9)
• Product Group: 5506
