Siemens Simatic S7-1500 Shielding set **spare part**

Product Overview

The Siemens 6ES7590-5CA00-0AA0 is a comprehensive shielding set spare part for SIMATIC S7-1500 analog and technology modules, featuring a complete three-component system including shield terminal, shielding bracket, and 24V DC infeed element with screw-type connection system. This essential maintenance kit ensures proper electromagnetic shielding and power supply for 35mm wide modules, providing reliable signal integrity and electrical continuity for analog and technology applications in industrial automation systems.

Key Features

• Complete Shielding System: Includes shield terminal, shielding bracket, and 24V DC infeed element for comprehensive module protection
• Universal Compatibility: Suitable for all SIMATIC S7-1500 analog and technology modules with 35mm width
• Screw-Type Connection: Reliable screw-type connection system for secure and maintainable installations
• Tool-Free Assembly: No tools required for assembly and disassembly, enabling quick maintenance
• Front Connector Compatible: Suitable for all front connectors for 35mm wide modules
• Bulk Packaging: 5 units per packing unit for efficient spare parts management

Technical Specifications

• Module Compatibility: SIMATIC S7-1500 analog and technology modules (35mm wide)

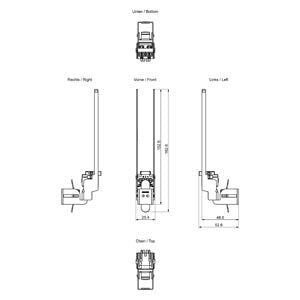

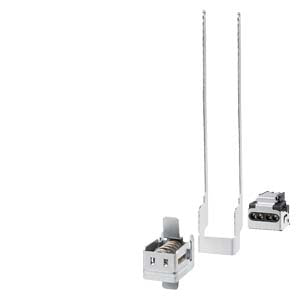

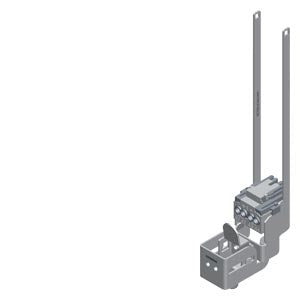

• Components: Shield terminal, shielding bracket, 24V DC infeed element
• Connection System: Screw-type connection system
• Front Connector Support: All front connectors for 35mm wide modules
• Package Quantity: 5 units per packing unit
• Weight: 0.303 kg per package
• Packaging Dimensions: 12.60 x 18.10 x 3.40 cm
• Country of Origin: Germany
• EAN: 4025515081012
• UPC: 887621139803

Applications Essential for maintenance and service of SIMATIC S7-1500 analog and technology modules in industrial automation systems including process control applications, manufacturing automation, building automation, power distribution monitoring, and any application requiring high signal integrity and electromagnetic compatibility for analog signal processing and technology functions.

System Integration Benefits

• Signal Integrity Protection: Proper shielding ensures reliable analog signal transmission and reduces electromagnetic interference
• Maintenance Efficiency: Complete spare part kit reduces downtime during module servicing
• Universal Application: Compatible with all S7-1500 analog and technology modules for simplified inventory management
• Quick Installation: Tool-free assembly enables rapid maintenance and replacement
• Cost-Effective Solution: Bulk packaging provides economical spare parts management
• Electrical Safety: Proper grounding and shielding enhance system safety and reliability

SIMATIC S7-1500 Integration Essential component for maintaining the electromagnetic compatibility and signal integrity of SIMATIC S7-1500 analog and technology modules. The shielding system connects cable shields with the shield bracket while providing mechanical fixing, ensuring proper grounding and EMC compliance within the S7-1500 automation system architecture.

Compliance & Certifications

• RoHS Compliant: Since 25.02.2013, meets substance restriction requirements
• WEEE Compliance: No take-back obligation required
• REACH Regulation: Contains lead in concentrations >0.1% w/w (safe for intended use)
• Export Control: AL: N / ECCN: N
• Product Class: Class A standard product with return capability

Important Note This product is currently active (PLM Status: PM300) and readily available for immediate delivery. The shielding set is included in the scope of supply of analog modules but is available as a spare part for maintenance and replacement purposes.
