Product Overview

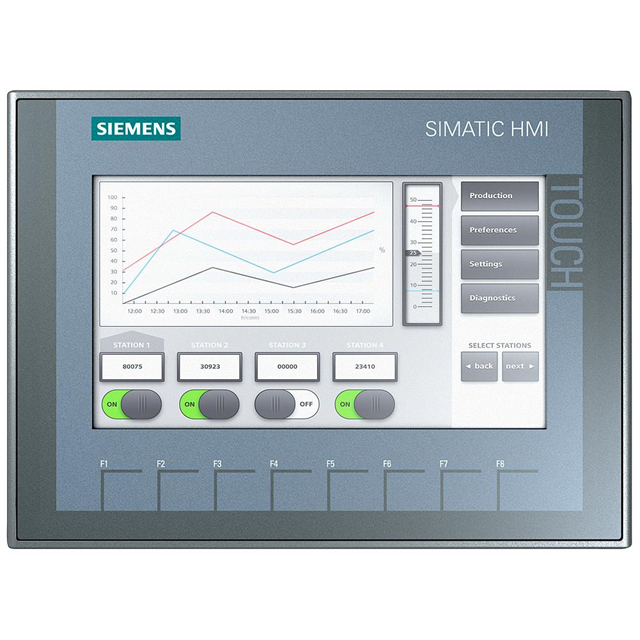

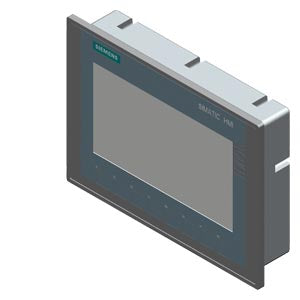

SIMATIC HMI, KTP700 Basic, Basic Panel, Key/touch operation, 7" TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD. This advanced Human Machine Interface panel provides intuitive operation and monitoring capabilities for industrial automation applications with exceptional visual clarity and robust performance.

Key Features

Display Technology:

• 7-inch TFT display with high resolution
• 800 x 480 pixel resolution for crisp visualization
• 65,536 colors (16-bit color depth) for vibrant graphics
• 100% dimmable brightness for optimal viewing conditions

Operation Interface:

• Key/Touch Operation: Dual input methods for versatility
• 8 Function Keys: Dedicated programmable function buttons
• Touch Screen: Intuitive touch interface for direct interaction
• IP65 Protection: Front panel protection for harsh environments

Connectivity and Communication:

• PROFINET Interface: Industrial Ethernet communication
• Ethernet Port: TCP/IP connectivity
• USB Interface: For data transfer, keyboard, mouse, or barcode scanner
• 24V DC Power Supply: Standard industrial voltage

Technical Specifications

Display Characteristics:

• Screen Size: 7 inches diagonal
• Display Type: TFT (Thin Film Transistor)
• Resolution: 800 x 480 pixels
• Color Depth: 65,536 colors (16-bit)
• Active Display Area: 154.1 x 85.9 mm
• Brightness: 100% dimmable

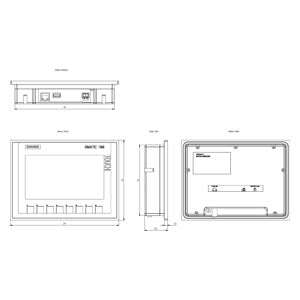

Physical Specifications:

• Net Weight: 0.977 kg
• Overall Dimensions: 214 x 158 x 39 mm (W x H x D)
• Panel Cutout: Compact mounting requirements
• Packaging Dimensions: 20.50 x 27.60 x 7.80 cm

Electrical Specifications:

• Supply Voltage: 19.2V to 28.8V DC (24V DC nominal)
• Power Consumption: Energy-efficient operation
• Operating Temperature: 0°C to +50°C
• Storage Temperature: Extended temperature range

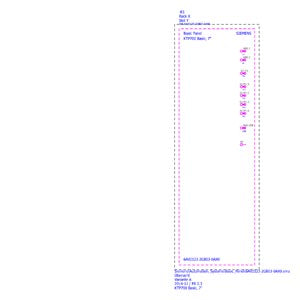

Interface Specifications:

• PROFINET: 1 x Industrial Ethernet interface
• USB: 1 x USB 2.0 interface
• Communication Protocols: PROFINET, Ethernet TCP/IP
• Connection: RJ45 connector for network communication

Protection and Environmental:

• Front Protection: IP65 (dust and water resistant)
• Operating Environment: Industrial grade
• Vibration Resistance: Suitable for industrial applications
• EMC Compliance: Industrial electromagnetic compatibility

Standards and Compliance:

• RoHS Compliance: Yes, since 19.03.2014
• WEEE Take-Back Obligation: Yes
• Export Control: AL: N / ECCN: N
• Country of Origin: China

Product Information:

• EAN: 4034106029210
• UPC: 887621773120
• Packaging Quantity: 1 piece
• Quantity Unit: 1 Piece

Software and Configuration

Engineering Software:

• WinCC Basic V13: Integrated engineering environment
• STEP 7 Basic V13: PLC programming and HMI configuration
• TIA Portal: Unified engineering framework
• Free Software: Open-source components included on CD

Programming Features:

• Basic HMI Functions: Essential visualization capabilities
• Recipe Management: Data management functionality
• Reporting System: Built-in reporting capabilities
• Graph Functions: Trend and data visualization
• Alarm Management: Event and alarm handling

System Integration:

• PLC Connectivity: Direct connection to SIMATIC controllers
• Multi-Protocol Support: Various communication protocols
• Project Data Sharing: Integrated with TIA Portal ecosystem
• Configuration Assistant: Guided setup and configuration

Applications

The SIMATIC HMI KTP700 Basic is ideal for:

• Machine operation and monitoring
• Process visualization and control
• Industrial automation interfaces
• Manufacturing execution systems
• Building automation applications
• Simple to medium complexity HMI tasks
• Cost-effective visualization solutions
• Retrofit and upgrade projects

Operational Benefits

User Experience:

• Intuitive Interface: Easy-to-use touch and key operation
• High-Resolution Display: Clear and detailed visualization
• Flexible Orientation: Portrait and landscape mounting options
• Ergonomic Design: Comfortable operation in industrial environments

System Advantages:

• Cost-Effective: Optimized price-performance ratio
• Reliable Operation: Industrial-grade components
• Easy Integration: Seamless SIMATIC ecosystem compatibility
• Future-Proof: Scalable and upgradeable platform

Installation and Mounting

Mounting Options:

• Panel Mounting: Standard control cabinet installation
• IP65 Front Protection: Suitable for harsh environments
• Compact Design: Space-efficient installation
• Standard Cutout: Compatible with industry standards

Connection Requirements:

• 24V DC Power Supply: Standard industrial power
• PROFINET Network: Ethernet infrastructure
• Grounding: Proper electrical grounding required
• Environmental Considerations: Temperature and humidity limits

Compatibility

Controller Integration:

• SIMATIC S7 Series: Full compatibility with S7 controllers
• LOGO! Controllers: Basic automation integration
• Third-Party PLCs: Standard PROFINET communication
• Distributed I/O: ET 200 series integration

Software Compatibility:

• TIA Portal: V13 and higher versions
• WinCC Basic: Integrated HMI development
• STEP 7 Basic: PLC programming environment
• Migration Tools: Upgrade path from legacy systems
