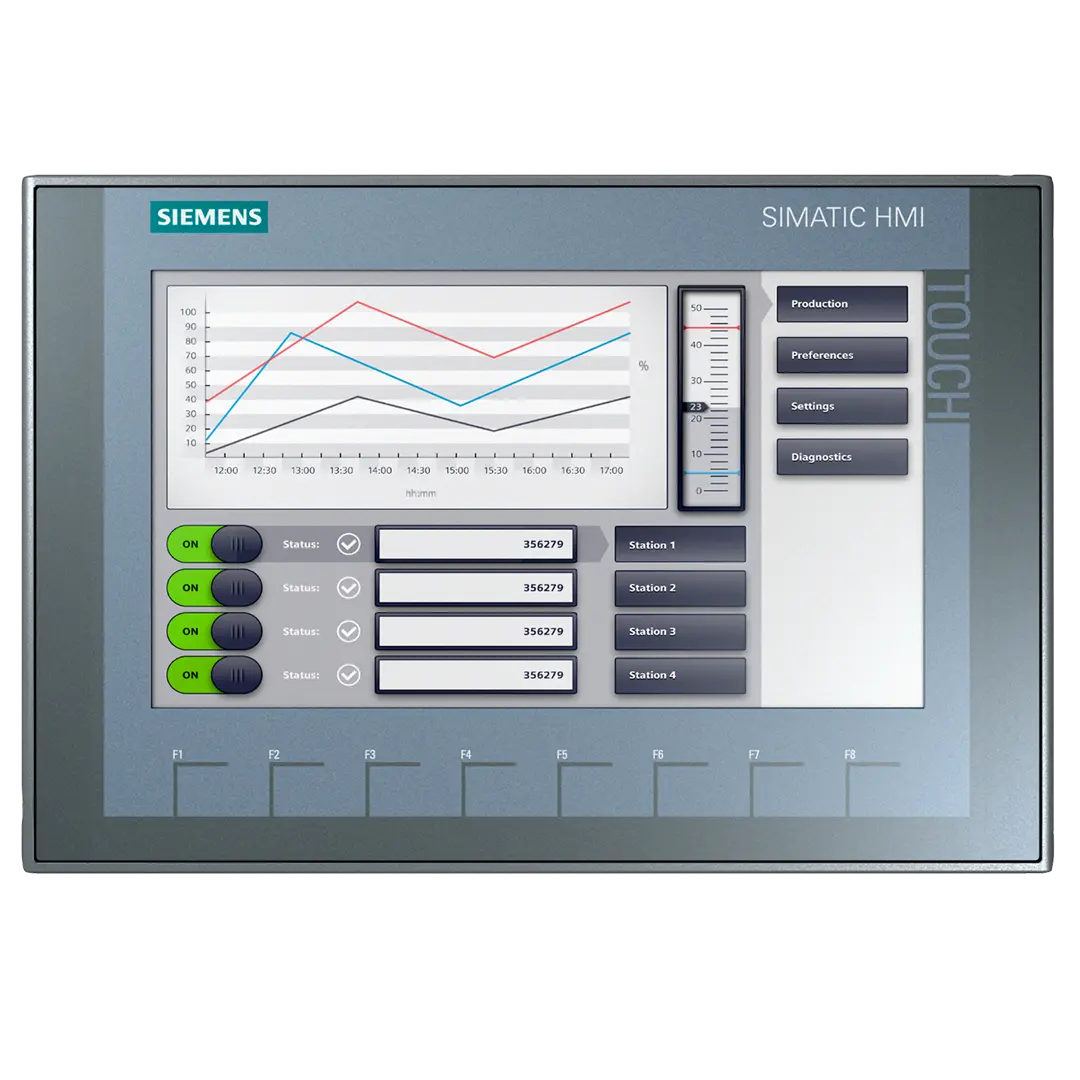

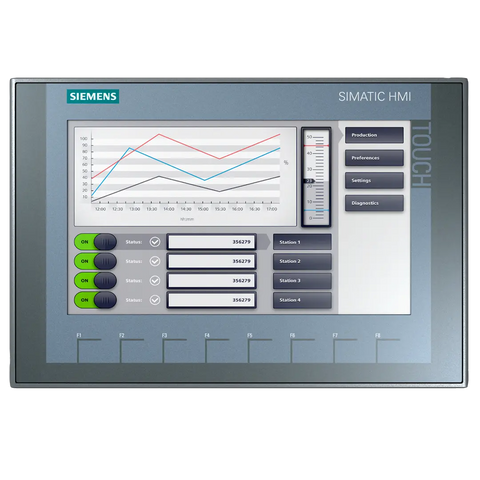

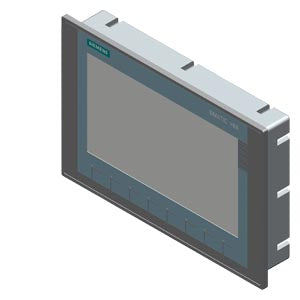

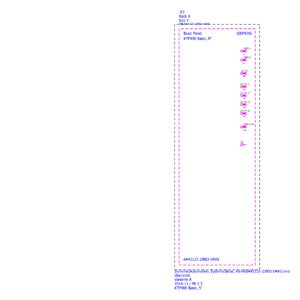

Siemens Simatic HMI KTP900 Basic panel, 9" TFT display Part number 6AV2123-2JB03-0AX0

The SIMATIC HMI KTP900 Basic is a versatile industrial human-machine interface panel designed for medium performance range HMI tasks, particularly suited for SIMATIC S7-1200 controllers and other compatible systems. This basic panel combines key and touch operation capabilities with a 9" TFT display, offering enhanced process visualization for compact plants and smaller applications while meeting higher requirements for screen size and resolution.

Key Features

• Display Technology: 9" TFT display with 800 x 480 pixel resolution
• Color Support: 65,536 colors for detailed and clear process visualization
• Operation Methods: Combined key and touch operation for flexible user interaction
• Function Keys: 8 configurable function keys for enhanced operational control
• Display Properties: Dimmable backlight up to 100% for optimal flexibility and ambient light adjustment
• Configuration Software: Compatible with WinCC Basic V13 and STEP 7 Basic V13
• Connectivity: PROFINET interface (Ethernet) for network integration
• Additional Features: Contains open-source software provided free of charge (see enclosed CD)

Technical Specifications

• Display Size: 9" TFT display
• Display Resolution: 800 x 480 pixels
• Display Dimensions: 198 mm (width) x 111.7 mm (height)
• Active Display Area: 215.5 mm (length) x 129.3 mm (width)
• Number of Function Keys: 8 keys
• Memory: 10 MB onboard memory
• Interface: PROFINET (Ethernet) interface
• Supply Voltage: 24V DC
• Operating Temperature: 0°C to +50°C
• Protection Rating: IP65 (front panel) - dust-tight and protected against low-pressure water jets

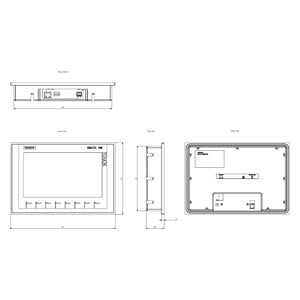

• Overall Dimensions: 267 mm (width) x 182 mm (height) x 55 mm (depth)

Design & Construction

• Material: Plastic housing construction for durability
• Mounting: Standard panel mounting configuration
• User Interface: Innovative graphical user interface providing enhanced user experience and operation
• Vertical Configuration: Supports vertical configuration for flexible installation options
• Color Depth: High resolution and color depth facilitate improved process visualization
• Touch Screen: Resistive touch technology for reliable operation in industrial environments

Compliance & Certifications

• Net Weight: 1.383 kg
• Packaging Dimensions: 23.30 x 33.00 x 7.50 cm
• RoHS Compliance: Yes, compliant since March 25, 2014
• Export Control: AL: N / ECCN: 9N9999
• Country of Origin: China
• EAN: 4034106029234
• UPC: 887621830274

Environmental & Safety Information

This product complies with WEEE (2012/19/EU) take-back obligations and includes information regarding REACH Article 33 substance disclosures. The device contains certain substances of the candidate list in concentrations higher than 0.1% weight by weight, including Lead, Lead monoxide, Silicic acid (lead salt), and Bisphenol A. Based on current information, these substances do not pose risks when the product is used as intended, including disposal.

Applications

Perfect for basic panel HMI tasks in medium performance range applications, particularly designed for SIMATIC S7-1200 controllers but also compatible with other controller systems. Ideal for industrial automation in compact plants, smaller manufacturing processes, machinery control, and various automated systems requiring reliable operator interface solutions.

Enhanced Usability Features

The KTP900 Basic allows for considerably increased process quality with compact plants and smaller applications. Featuring all important HMI basic functions, this SIMATIC HMI Basic Panel opens up new possibilities for operation and monitoring in mechanical engineering applications at an attractive price point. The panel is exclusively available with Ethernet interface for use in PROFINET networks.
