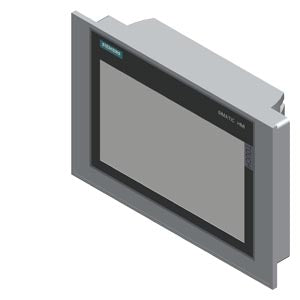

Siemens Simatic HMI TP900 Comfort panel, touch operation, 9" Part number 6AV2124-0JC01-0AX0

EAN / Barcode 4025515079019
Product Type Control Panel
Product Class Graphic panel
Category HMI's & PLC's
Sub-category HMI
ETIM Class Graphic panel
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

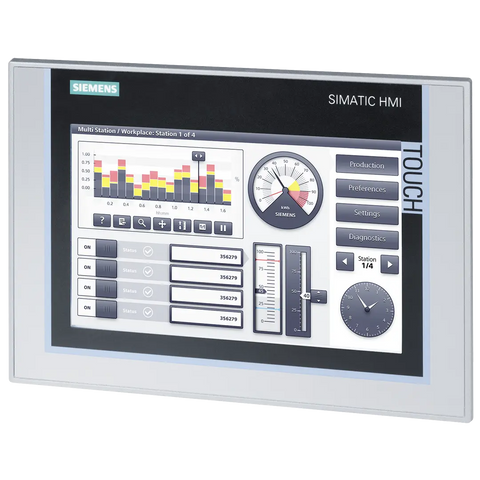

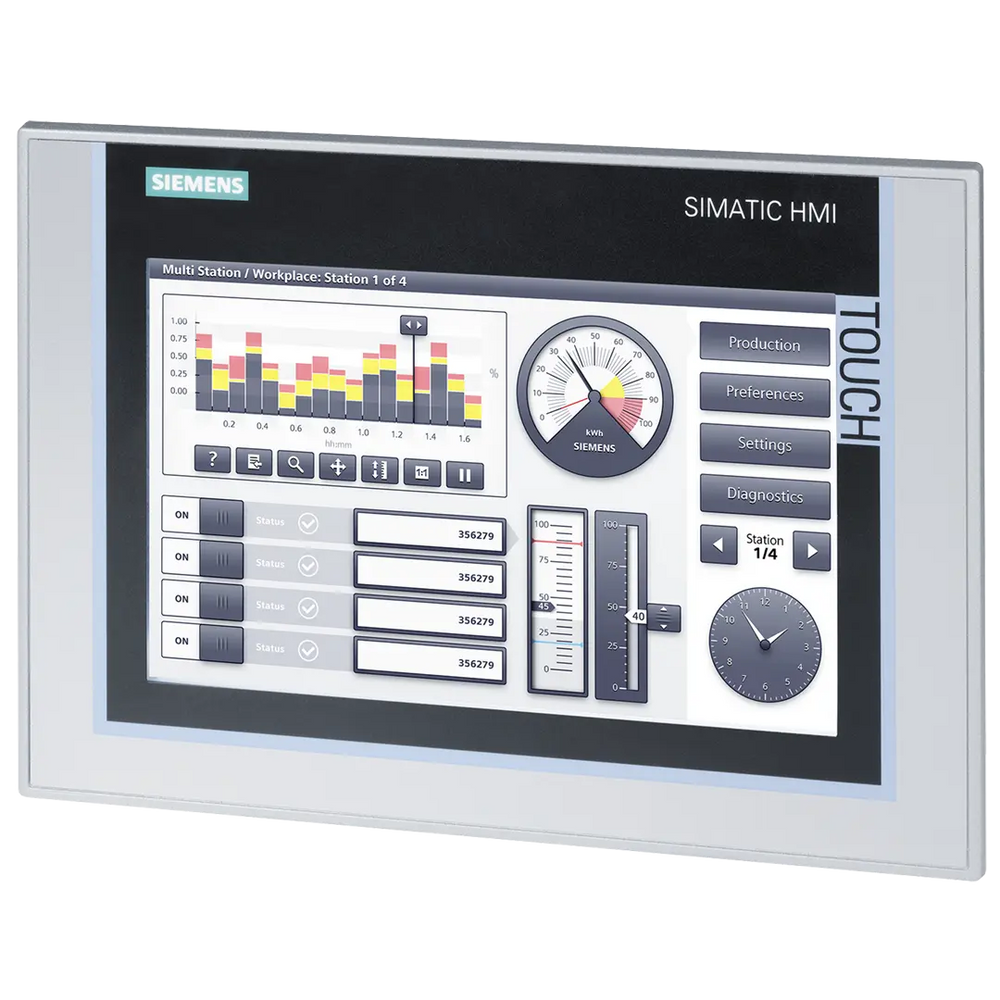

The SIMATIC HMI TP900 Comfort is a high-performance industrial touch panel designed for efficient machine-level operator control and monitoring. This comfort panel features a 9" widescreen TFT display with exceptional visual clarity, supporting 16 million colors for optimal readability and user experience.

Key Features

  • Display Technology: 9" widescreen TFT display with 800 x 480 resolution
  • Color Support: 16 million colors for vivid visualization
  • Touch Operation: Intuitive touch interface for easy navigation
  • Operating System: Windows CE 6.0 with Microsoft support including security updates
  • Configuration Memory: 12 MB for extensive project storage
  • Connectivity: PROFINET interface and MPI/PROFIBUS DP interface for versatile network integration
  • Configuration Software: Compatible with WinCC Comfort V11

Technical Specifications

  • Supply Voltage: 24V DC
  • Power Consumption: 18 Watts
  • Operating Temperature: 0°C to +50°C
  • Protection Rating: IP20/65, NEMA 4/4X enclosure
  • Material: Aluminum front panel
  • Net Weight: 2.539 kg
  • Dimensions: 36.00 x 50.90 x 12.30 cm (packaging)

Compliance & Certifications

  • Approvals: UL (Canada and US), CE, C-TICK, KC
  • RoHS Compliance: Yes, compliant since January 31, 2011
  • Export Control: AL: N / ECCN: 9N9999
  • Country of Origin: Germany
  • EAN: 4025515079019
  • UPC: 040892686043

Environmental & Safety Information

This product complies with WEEE (2012/19/EU) take-back obligations and includes information regarding REACH Article 33 substance disclosures. The device contains certain substances of the candidate list in concentrations higher than 0.1% weight by weight, including Lead, Lead monoxide, Silicic acid (lead salt), and Bisphenol A. Based on current information, these substances do not pose risks when the product is used as intended, including disposal.

Applications

Ideal for industrial automation applications requiring reliable human-machine interface solutions, including manufacturing processes, machinery control, and plant monitoring systems. The panel seamlessly integrates into existing SIMATIC automation environments.

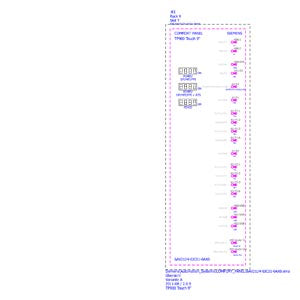

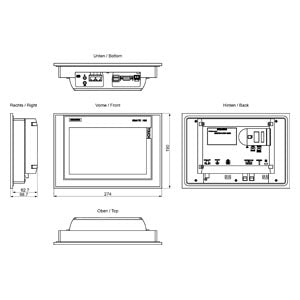

Download existing graphical data for this product:

Technical Specifications

Additional software components, loadableYes
Built-in depth62.7 mm
Colour displayYes
Current Consumption0.75 A
Degree of protection (IP), front sideIP65
Height of the front190 mm
IP RatingIP65 (at the front) / IP20 (rear)
Number of colours of the display16777216
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-4851
Number of HW-interfaces USB2
Number of interfaces PROFINET1
Number of online languages32
Number of password levels50
Number of pixels, horizontal800
Number of pixels, vertical480
Operating temperature50 °C
Packaging size / unitpc(s)
Part Depth (mm)62.7mm
Part Height (mm)190mm
Part Width (mm)274mm
Process default value (input) possibleYes
Process value representation (output) possibleYes
Screen diagonal9 inch
Supply Voltage24 VDC
Supply voltage DC28.8 V
Supporting protocol for EtherNet/IPYes
Supporting protocol for ModbusYes
Supporting protocol for other bus systemsYes
Supporting protocol for PROFIBUSYes
Supporting protocol for PROFINET IOYes
Supporting protocol for TCP/IPYes
Temperature: Operating0°C to 50°C; (55 °C, see entry ID: 64847814) (for vertical installation) / 0°C to 40°C (for tilt angle) / 0°C to 40°C (for vertical installation, portrait format) / 0°C to 35°C (for tilt anlge portrait format)
Touch technologyResistive touch
Type of displayTFT
Useful project memory/user memory12000 kByte
Voltage type (supply voltage)DC
Weight (g)1 900g
Width of the front274 mm
With alpha numeric keyboardYes
With message indicationYes
With message system (incl. buffer and confirmation)Yes
With numeric keyboardYes
With printer outputYes
With recipesYes
Country of OriginGermany
