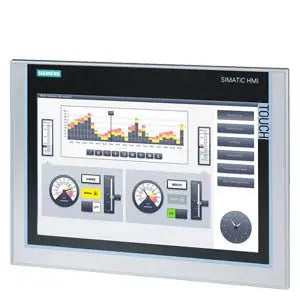

Siemens Simatic HMI TP1200 Comfort panel, touch, 12" TFT Part number 6AV2124-0MC01-0AX0

EAN / Barcode 4025515079002
Product Type Control Panel
Product Class Graphic panel
ETIM Class Graphic panel
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

Mid-range SIMATIC HMI Comfort Panel designed for touch operation applications. This industrial-grade human-machine interface features a 12" widescreen TFT display with enhanced memory capacity and comprehensive connectivity options, delivering reliable performance for automation monitoring and control applications requiring a balance of screen size and functionality.

Key Features

  • Display Technology: 12" widescreen TFT display with 16 million colors
  • Operation Method: Touch operation for intuitive user interaction
  • Connectivity: PROFINET interface and MPI/PROFIBUS DP interface
  • Memory: 12 MB configuration memory for application storage
  • Operating System: Windows CE 6.0 for stable industrial operation
  • Configuration: Compatible with WinCC Comfort V11 software
  • Panel Type: SIMATIC HMI TP1200 Comfort Panel

Technical Specifications

  • Display Size: 12" widescreen format
  • Color Depth: 16 million colors
  • Memory Capacity: 12 MB configuration memory
  • Communication Interfaces: PROFINET, MPI/PROFIBUS DP
  • Net Weight: 3.460 kg
  • Packaging Dimensions: 36.20 x 50.90 x 12.60 cm
  • Quantity Unit: 1 Piece
  • EAN: 4025515079002
  • UPC: 040892686050
  • Country of Origin: Germany

Compliance

  • RoHS Compliance: Compliant since January 31, 2011
  • Export Control: AL: N / ECCN: 9N9999
  • WEEE Take-Back Obligation: Yes

Environmental & Safety Information

This product meets industrial environmental standards and contains several substances listed under REACH Article 33 regulations in concentrations higher than 0.1% by weight, including Lead, Silicic acid lead salt, Bisphenol A (BPA), and Lead monoxide. When used as intended, including proper disposal, these substances do not pose risk to users.

Configuration & Software

Designed for seamless integration with Siemens automation systems, this HMI panel is configurable using WinCC Comfort V11 software, providing comprehensive tools for creating intuitive operator interfaces and system monitoring solutions. The 12" display size offers an optimal balance between screen real estate and installation space requirements.

Download existing graphical data for this product:

For technical documentation and detailed specifications, please refer to the official Siemens support resources:

Technical Specifications

Additional software components, loadableYes
Built-in depth64 mm
Colour displayYes
Current Consumption0.85A
Degree of protection (IP), front sideIP65
Height of the front241 mm
IP RatingIP (at the front) IP65 IP (rear) IP20
Number of colours of the display16777216
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-4851
Number of HW-interfaces USB2
Number of interfaces PROFINET1
Number of online languages32
Number of password levels50
Number of pixels, horizontal1280
Number of pixels, vertical800
Operating temperature0 °C
Packaging size / unitpc(s)
Process default value (input) possibleYes
Process value representation (output) possibleYes
Screen diagonal12.1 inch
Supply Voltage24 V (DC Rated Value) / 19.2 V (DC Lower Limit) / 28.8 V (DC Upper limit)
Supply voltage DC19.2 V
Supporting protocol for EtherNet/IPYes
Supporting protocol for ModbusYes
Supporting protocol for other bus systemsYes
Supporting protocol for PROFIBUSYes
Supporting protocol for PROFINET IOYes
Supporting protocol for TCP/IPYes
Temperature: Operating0°C - +50°C
Touch technologyResistive touch
Type of displayTFT
Type of VoltageDC
Useful project memory/user memory12000 kByte
Voltage type (supply voltage)DC
Weight (g)2 800g
Width of the front330 mm
With alpha numeric keyboardYes
With message indicationYes
With message system (incl. buffer and confirmation)Yes
With numeric keyboardYes
With printer outputYes
With recipesYes
Country of OriginGermany
