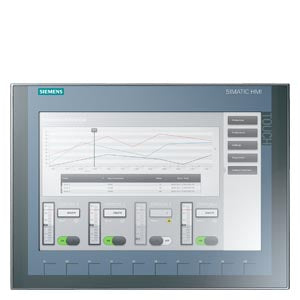

Siemens Simatic HMI KTP1200 Basic panel, key/touch
View on Siemens 📄 Datasheet
Siemens

Siemens Simatic HMI KTP1200 Basic panel, key/touch Part number 6AV2123-2MA03-0AX0

EAN / Barcode 4034106029258
Product Type Control Panel
Product Class Graphic panel
ETIM Class Graphic panel
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

SIMATIC HMI, KTP1200 Basic DP, Basic Panel, Key/touch operation, 12 TFT display, 65536 colors, PROFIBUS interface, configurable as of WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD Basic Panels are perfect for the cost-effective implementation of simple visualization tasks at machine level. Their basic features and functionality as well as an especially attractive price make them perfect entry-level devices.

Technical Specifications

Built-in depth54.9 mm
Colour displayYes
country_of_originChina
Degree of protection (IP), front sideIP65
descriptionSIMATIC HMI, KTP1200 Basic DP, Basic Panel, Key/touch operation, 12" TFT display, 65536 colors, PROFIBUS interface, configurable as of WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD
Height of the front245 mm
IP RatingIP65
IP Rating DetailedIP65 IP (rear) IP20 NEMA (front) Enclosure Type 4 at the front Yes Enclosure Type 4x at the front Yes Standards, approvals, certificates CE mark Yes cULus Yes RCM (formerly C
Number of colours of the display65536
Number of function buttons, programmable10
Number of HW-interfaces RS-4221
Number of HW-interfaces RS-4851
Number of HW-interfaces USB1
Number of online languages10
Number of password levels50
Number of pixels, horizontal1280
Number of pixels, vertical800
Operating temperature0 °C
Part Depth (mm)9,10mm
Part Height (mm)39,80mm
Part Width (mm)29,90mm
Process default value (input) possibleYes
Process value representation (output) possibleYes
Screen diagonal12 inch
Supply voltage DC28.8 V
Supporting protocol for ModbusYes
Supporting protocol for other bus systemsYes
Supporting protocol for PROFIBUSYes
Touch technologyResistive touch
Useful project memory/user memory10000 kByte
Voltage type (supply voltage)DC
Weight (g)2,050 Kg
Width of the front330 mm
With alpha numeric keyboardYes
With message indicationYes
With message system (incl. buffer and confirmation)Yes
With numeric keyboardYes
With recipesYes
View complete specifications on Siemens
