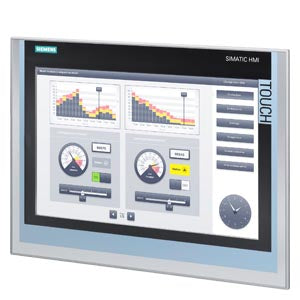

Simatic HMI TP1500 Comfort panel, touch operation, 15" Part number 6AV2124-0QC02-0AX1

Product Overview

Large-format SIMATIC HMI Comfort Panel designed for touch operation applications. This industrial-grade human-machine interface features a 15" widescreen TFT display with enhanced memory capacity and comprehensive connectivity options, delivering superior performance for complex automation monitoring and control applications with extended temperature operation capabilities.

Key Features

• Display Technology: 15" widescreen TFT display with 16 million colors
• Operation Method: Touch operation for intuitive user interaction
• Connectivity: PROFINET interface and MPI/PROFIBUS DP interface
• Memory: 24 MB configuration memory for extensive application storage
• Operating System: WEC 2013 for robust industrial operation
• Configuration: Compatible with WinCC Comfort V14 SP1 with HSP
• Panel Type: SIMATIC HMI TP1500 Comfort
• Temperature Range: Ambient temperature up to 50°C (up to 55°C with restrictions)

Technical Specifications

• Display Size: 15" widescreen format
• Color Depth: 16 million colors
• Memory Capacity: 24 MB configuration memory
• Communication Interfaces: PROFINET, MPI/PROFIBUS DP
• Operating Temperature: Up to 50°C (up to 55°C with restrictions)
• Net Weight: 5.460 kg
• Packaging Dimensions: 44.50 x 60.00 x 17.50 cm
• Quantity Unit: 1 Piece
• EAN: 4047623407843
• UPC: 804766523915
• Country of Origin: Germany

Compliance

• RoHS Compliance: Compliant since August 30, 2017
• Export Control: ECCN: 9N9999 / AL: N
• WEEE Take-Back Obligation: Yes

Environmental & Safety Information

This product meets industrial environmental standards and contains several substances listed under REACH Article 33 regulations in concentrations higher than 0.1% by weight, including Lead, Silicic acid lead salt, and Lead monoxide. When used as intended, including proper disposal, these substances do not pose risk to users.

Configuration & Software

Engineered for seamless integration with Siemens automation systems, this HMI panel is configurable using WinCC Comfort V14 SP1 with HSP, providing advanced tools for creating comprehensive operator interfaces and sophisticated system monitoring solutions for large-scale industrial applications requiring extended temperature operation.

Download existing graphical data for this product:

For technical documentation and detailed specifications, please refer to the official Siemens support resources:

• Technical Data Sheet
• Product Information Page
