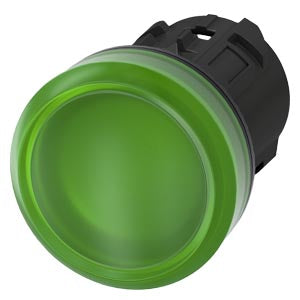

Siemens Indicator light, round, plastic, green, 22mm

Product Overview The SIRIUS ACT 3SU1001-6AA40-0AA0 is a premium 22 mm round indicator light designed for industrial control applications requiring clear visual status indication. This green, plastic lens with smooth surface combines robust construction with excellent light transmission for demanding industrial environments requiring reliable status signaling and operational confirmation functions.

Key Features Design & Construction:

• 22 mm round mounting diameter with indicator light design
• High-grade plastic front ring and collar construction
• Green smooth lens for optimal light transmission
• Pure indication function without switching capability
• Snap-on mounting system without tools required
• Smooth lens surface for easy cleaning and maintenance

Visual Indication:

• Pure Indicator Function: Dedicated status indication without switching
• Green Color Coding: Universal indication for normal operation, safe status, or go conditions
• Smooth Lens Design: Even light distribution and optimal visibility
• LED Compatible: Designed for integration with LED modules
• High Visibility: Clear indication for operational status and ready condition monitoring

Technical Specifications:

• Protection Rating: IP66, IP67, IP69K (front face)
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +80°C
• Mounting Hole Diameter: 22.3 mm
• Lens Type: Smooth green plastic lens
• Function: Pure indication (no switching contact)
• Illumination: LED compatible for status indication
• Mechanical Life: Maintenance-free indicator operation
• Vibration Resistance: 10-500 Hz, 5g (IEC 60068-2-6)

Certifications & Standards:

• UL, CSA, CE marked
• IEC 60947-5-1 compliant
• RoHS compliant since 01.10.2014
• REACH regulation compliant

Applications Ideal for use in:

• Normal operation and ready status indication systems
• Manufacturing equipment operational status monitoring
• Safety system go/ready indication
• Control panels requiring operational status visualization
• Process control systems with green ready lights
• Equipment requiring operational status indication without switching
• Green-coded ready and operational identification systems
• Machine status monitoring requiring go/ready signals

Indication Features

• LED Integration: Compatible with 3SU14 series LED modules
• Status Visualization: Clear indication of ready, operational, or go conditions
• Green Color Coding: Excellent light transmission through green lens for operational signals
• Energy Efficient: LED technology for low power consumption
• Long Life: Extended operational life with LED illumination
• Maintenance-Free: Pure indicator function requires minimal maintenance

Mounting & Installation

• Front Panel Mounting: Suitable for panel thicknesses up to 8 mm
• Tool-Free Installation: Snap-on holder system
• LED Modules: Compatible with 3SU14 series LED modules for illumination
• Modular Design: Supports integration with control system architectures
• Easy Maintenance: Smooth lens design facilitates cleaning and upkeep

Series Compatibility Part of the comprehensive SIRIUS ACT 3SU1 command and signaling device family, ensuring:

• Consistent design language across installations
• Interchangeable components and modules
• Extensive accessory ecosystem
• Global availability and support

Technical Documentation:

• Net Weight: 0.012 kg
• Country of Origin: China
• EAN: 4011209946286
• Package Dimensions: 30 x 38 x 30 mm

Download existing graphical data for this product: Technical Documentation:

• Official Technical Datasheet (PDF)
• Product Support Page
• SIRIUS ACT System Manual

CAD Data & Drawings:

• 3D CAD Models - Multiple Formats

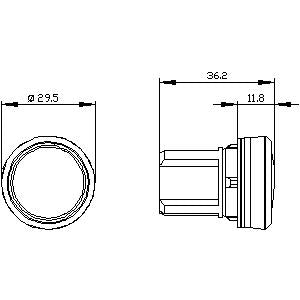

• 2D Dimension Drawings
