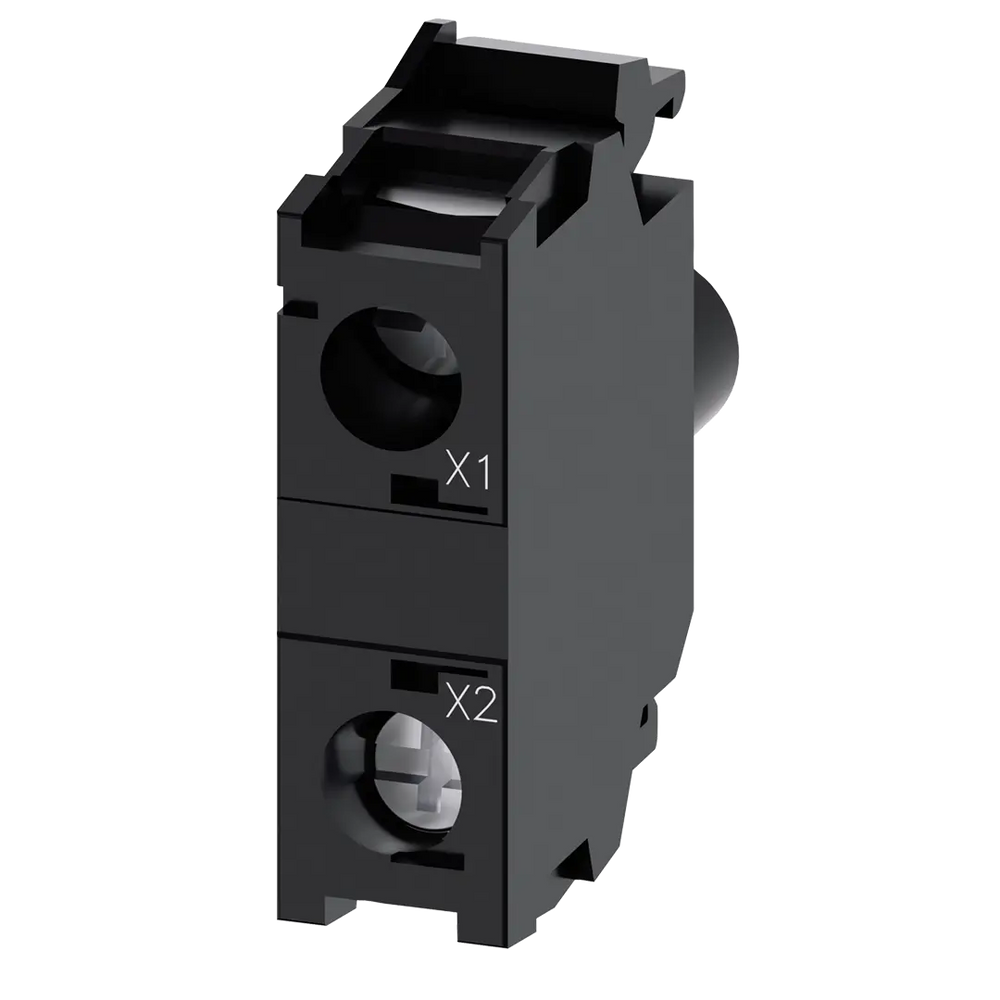

Siemens LED module with integrated LED 24 VAC/DC, yellow

Product Overview

LED module with integrated LED 24 V AC/DC, yellow, screw terminal, for front plate mounting from the SIRIUS ACT series. This energy-efficient LED illumination module provides brilliant high-luminosity yellow lighting for pushbuttons and indicator lights, utilizing advanced LED technology for reliable visual indication in industrial automation applications.

Key Features

• Integrated LED technology for superior illumination
• Yellow color for caution and intermediate status indication
• 24 V AC/DC dual voltage capability
• Screw terminal connection for reliable wiring
• Front plate mounting configuration
• Energy-efficient LED technology with extended operational lifespan
• High luminosity output with brilliant light intensity
• Part of the SIRIUS ACT portfolio with worldwide product approvals
• Innovative snap-on concept for easy installation with one hand and without special tools

Technical Specifications

• LED Color: Yellow
• Operating Voltage: 24 V AC/DC
• Frequency: 50/60 Hz (AC operation)
• Connection Type: Screw terminal
• Mounting Method: Front plate mounting

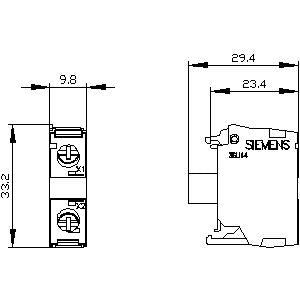

• Dimensions: 33.2mm H x 9.8mm W x 29.4mm D
• Protection Rating: IP40 enclosure
• Net Weight: 0.0075 kg
• Packaging Dimensions: 30.00 x 30.00 x 10.00 mm
• Country of Origin: Czech Republic
• EAN: 4011209943117
• UPC: 804766073489

Compliance & Standards

• RoHS compliant since 01.10.2014
• WEEE (2012/19/EU) Take-Back Obligation: Yes
• Export Control Regulations: AL: N / ECCN: N
• REACH Article 33 compliance for specific substances

Applications This yellow LED module is designed for illuminating SIRIUS ACT pushbuttons and indicator lights in industrial automation systems. Perfect for caution signaling, intermediate process status indication, warning conditions, machine operation modes, and general status communication. The yellow color is ideal for drawing attention to transitional states and cautionary conditions without the urgency of red emergency signals.

LED Technology Benefits

• Energy efficiency: Significantly lower power consumption compared to traditional incandescent bulbs
• Extended lifespan: Long operational life reduces maintenance requirements
• Instant illumination: No warm-up time for immediate visual feedback
• Vibration resistance: Solid-state technology withstands industrial environments
• Temperature stability: Consistent performance across wide temperature ranges
• High reliability: Reduced failure rates compared to conventional lighting
• Brilliant luminosity: Energy-efficient LED technology delivers exceptional brightness

Mounting & Installation

• Front plate mounting design for standard panel installations
• Snap-on concept allows one-hand installation
• No special tools required for assembly
• Compatible with SIRIUS ACT pushbuttons and indicator lights
• Groove-free mounting holes with integrated twist prevention
• Self-holding function of actuator when mounting
• Stackable with contact modules for space-efficient configurations

Yellow LED Advantages

• Caution indication: Industry-standard color for warning and caution signals
• Intermediate status: Perfect for transitional states and process monitoring
• High visibility: Excellent contrast and attention-getting capability without urgency
• Eye comfort: Comfortable for continuous monitoring applications
• Universal recognition: Globally understood caution and warning indication
• Process communication: Ideal for indicating machine modes and operational states

Electrical Features

• Dual voltage capability: 24 V AC/DC operation for flexible power supply options
• Low current consumption: Energy-efficient operation reduces system power requirements
• Screw terminal connection: Secure and reliable electrical connections
• Voltage tolerance: Stable operation across voltage variations
• Simple geometry: Easy mounting hole requirements

Environmental Durability

• Industrial grade construction: Made from robust genuine metal and high-grade plastic
• High degree of protection: IP40 enclosure rating for industrial environments
• Extreme environment capability: Suitable for demanding industrial conditions
• High-pressure cleaning: Can withstand high-pressure jet cleaning
• Outdoor suitability: Designed for both industrial and outdoor applications
• Chemical resistance: Suitable for various industrial chemical environments

Integration Capabilities

• SIRIUS ACT compatibility: Seamless integration with SIRIUS ACT pushbuttons and indicators
• System flexibility: Easy incorporation into existing control panels
• Modular design: Simple replacement and maintenance procedures
• Universal mounting: Standard front plate configuration
• Panel efficiency: Compact design maximizes panel space utilization
• Stackable design: Faultless connection even when stacked with contact blocks

Visual Performance

• Brilliant luminosity: Exceptional brightness for clear visibility
• Uniform illumination: Even light distribution for consistent appearance
• Color consistency: Reliable yellow output throughout operational life
• Contrast optimization: Clear distinction from other panel indicators
• Professional appearance: Clean, modern aesthetic for industrial applications
• Attention-grabbing: Effective for drawing operator attention to cautionary conditions

SIRIUS ACT Series Benefits

• Patented holder design: Integrated twist prevention for secure mounting
• Easy connectivity: Faultless connection capabilities
• Robust construction: Genuine metal and high-grade plastic materials
• Worldwide approvals: Global product certifications for international use
• Modern design: Three contemporary design series for various applications

Product Classification

• eClass: 27-37-12-09
• ETIM: EC000204
• UNSPSC: 39-12-15-44
