Product Overview

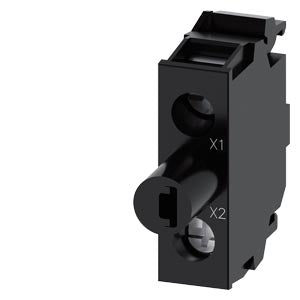

LED module with integrated LED 24 V AC/DC, red, screw terminal, for floor mounting

Article Number: 3SU1401-2BB20-1AA0

Key Features:

• Voltage Rating: 24V AC/DC
• LED Color: Red
• Connection Type: Screw terminal for secure installation
• Mounting: Floor mounting design for base applications
• Series: SIRIUS ACT
• Application: For illuminating SIRIUS ACT command and signaling devices in floor-mounted configurations

Technical Specifications:

• Operating Voltage: 24V AC/DC
• Forward Current: 20 mA
• Protection Rating: IP20, IP40
• Net Weight: 0.008 kg
• Packaging Dimensions: 52.00 x 102.00 x 25.00 mm
• Quantity Unit: 1 Piece
• EAN: 4011209943179
• UPC: 804766074080
• Country of Origin: Czech Republic

Product Benefits:

• Floor Mounting Design: Specifically engineered for base-mounted applications and floor-level installations
• High-Visibility Red LED: Provides clear visual indication with excellent visibility for status and alarm signals
• Energy-Efficient LED Technology: Delivers brilliant luminosity with low 24V power consumption
• Integrated Design: LED module with built-in LED eliminates need for separate lamp components
• Robust Construction: Designed for industrial environments with high protection against dust, oils, and caustic solutions
• Secure Connection: Screw terminal provides reliable electrical connection for critical applications
• Reliable Performance: Engineered for long service life in demanding floor-mounted installations

Applications: Ideal for floor-mounted SIRIUS ACT pushbuttons and indicator lights in industrial control systems, emergency stops, machinery interfaces, and automation systems where ground-level visual indication and control are required. Perfect for applications requiring red status or alarm indication.

Compliance & Certifications:

• RoHS Compliant: Since 01.10.2014
• WEEE Directive: Take-back obligation applies
• Export Control: AL: N / ECCN: N
• Product Class: A - Standard stock item

REACH Regulation Notice: This product contains substances from the candidate list in concentrations higher than 0.1% w/w:

• Lead monoxide (lead oxide)
• 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on current information, these substances do not pose risk when used as intended. Please refer to product documentation for complete details.

Download existing graphical data for this product:

• System Manual - SIRIUS ACT 3SU1 Pushbuttons and Signaling Devices
• Technical Documentation
• Product Support Page
• Product Datasheet
• Additional Product Information
