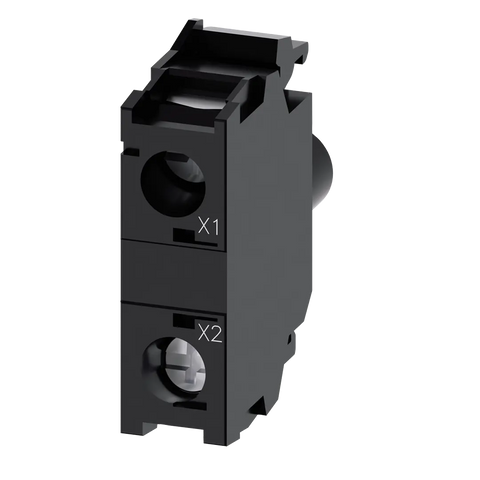

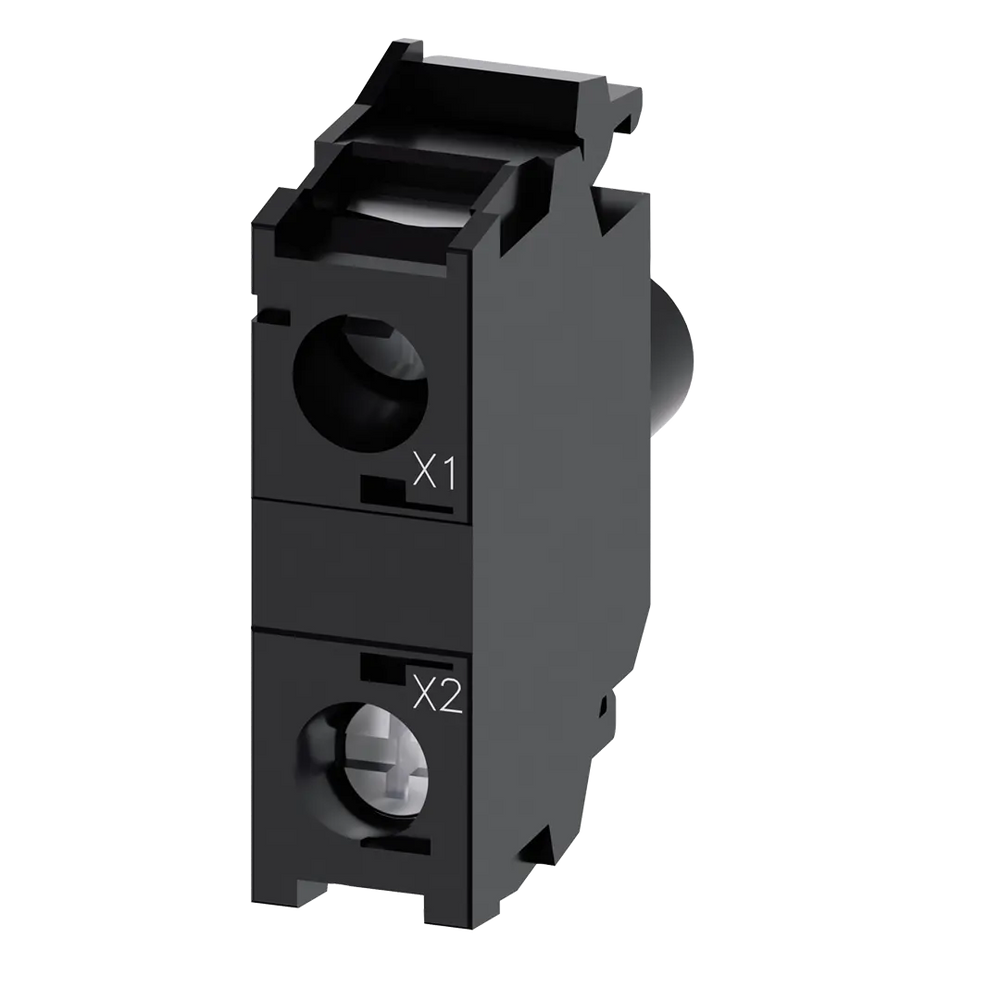

Siemens LED module with integrated LED 24 VAC/DC, red

Product Overview

LED module with integrated LED 24 V AC/DC, red, screw terminal, for front plate mounting from the SIRIUS ACT series. This energy-efficient LED illumination module provides high-luminosity red lighting for pushbuttons and indicator lights, utilizing advanced LED technology for reliable visual indication in industrial automation applications.

Key Features

• Integrated LED technology for superior illumination
• Red color for critical alerts and emergency indication
• 24 V AC/DC dual voltage capability
• Screw terminal connection for reliable wiring
• Front plate mounting configuration
• Energy-efficient LED technology with extended 100,000-hour lifespan
• High luminosity output (900-1400 mcd) for excellent visibility
• Part of the SIRIUS ACT portfolio with worldwide product approvals
• Innovative snap-on concept for easy installation with one hand and without special tools

Technical Specifications

• LED Color: Red
• Operating Voltage: 24 V AC/DC
• Frequency: 50/60 Hz (AC operation)
• Forward Current: 20mA maximum
• Light Intensity: 900-1400 mcd
• Operating Period: 100,000 hours
• Connection Type: Screw terminal (0.5-1.5mm²)
• Mounting Method: Front plate mounting

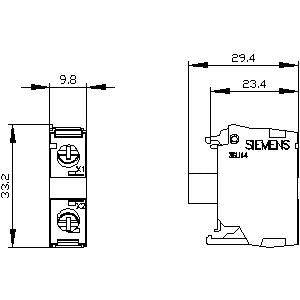

• Dimensions: 33.2mm H x 9.8mm W x 29.4mm D
• Insulation Voltage: 320V
• Tightening Torque: 0.8-0.9 Nm
• Protection Rating: IP40 enclosure, IP20 terminal
• Operating Temperature: -25°C to +70°C
• Net Weight: 0.008 kg
• Packaging Dimensions: 103.00 x 42.00 x 17.00 mm
• Country of Origin: Czech Republic
• EAN: 4011209943100
• UPC: 804766073465

Compliance & Standards

• RoHS compliant since 01.10.2014
• WEEE (2012/19/EU) Take-Back Obligation: Yes
• Export Control Regulations: AL: N / ECCN: N
• REACH Article 33 compliance for specific substances
• Degree of pollution: 3

Applications This red LED module is designed for illuminating SIRIUS ACT pushbuttons and indicator lights in critical industrial automation systems. Perfect for emergency stop indication, alarm signaling, fault notification, critical process alerts, and safety-related visual communication. The red color is industry-standard for emergency, danger, and critical warning applications.

LED Technology Benefits

• Energy efficiency: Significantly lower power consumption (20mA max) compared to traditional incandescent bulbs
• Extended lifespan: 100,000-hour operational life reduces maintenance requirements
• Instant illumination: No warm-up time for immediate visual feedback
• Vibration resistance: 5g (10-500Hz) withstands industrial environments
• Shock resistance: 50g rating for demanding applications
• Temperature stability: Consistent performance from -25°C to +70°C
• High reliability: Reduced failure rates compared to conventional lighting

Mounting & Installation

• Front plate mounting design for standard panel installations
• Snap-on concept allows one-hand installation
• No special tools required for assembly
• Compatible with SIRIUS ACT pushbuttons and indicator lights
• Secure mounting prevents accidental disconnection
• Optimal tightening torque: 0.8-0.9 Nm

Red LED Advantages

• Emergency indication: Industry-standard color for danger and emergency signals
• Critical alerts: Perfect for fault conditions and alarm states
• High visibility: Excellent contrast and attention-grabbing capability
• Universal recognition: Globally understood emergency and danger indication
• Safety compliance: Meets international standards for safety signaling
• Immediate response: Commands instant attention for critical situations

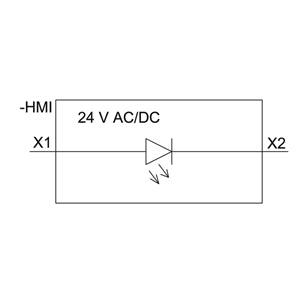

Electrical Features

• Dual voltage capability: 24 V AC/DC operation for flexible power supply options
• Low current consumption: 20mA maximum for energy-efficient operation
• High insulation voltage: 320V for electrical safety
• Screw terminal connection: Secure connections for 0.5-1.5mm² conductors
• Voltage tolerance: Stable operation across voltage variations

Environmental Durability

• Wide temperature range: -25°C to +70°C operational capability
• Vibration resistant: 5g rating for dynamic industrial environments
• Shock resistant: 50g rating for demanding applications
• IP40 enclosure protection: Protected against solid objects >1mm
• IP20 terminal protection: Safe terminal design for standard industrial use
• Pollution degree 3: Suitable for industrial environments

Integration Capabilities

• SIRIUS ACT compatibility: Seamless integration with SIRIUS ACT pushbuttons and indicators
• System flexibility: Easy incorporation into existing control panels
• Modular design: Simple replacement and maintenance procedures
• Universal mounting: Standard front plate configuration
• Panel efficiency: Compact design maximizes panel space utilization

Visual Performance

• High luminosity: 900-1400 mcd brightness for clear visibility
• Uniform illumination: Even light distribution for consistent appearance
• Color consistency: Reliable red output throughout 100,000-hour operational life
• Contrast optimization: Clear distinction from other panel indicators
• Professional appearance: Clean, modern aesthetic for industrial applications

Product Classification

• eClass: 27-37-12-09
• ETIM: EC000204
• UNSPSC: 39-12-15-44
