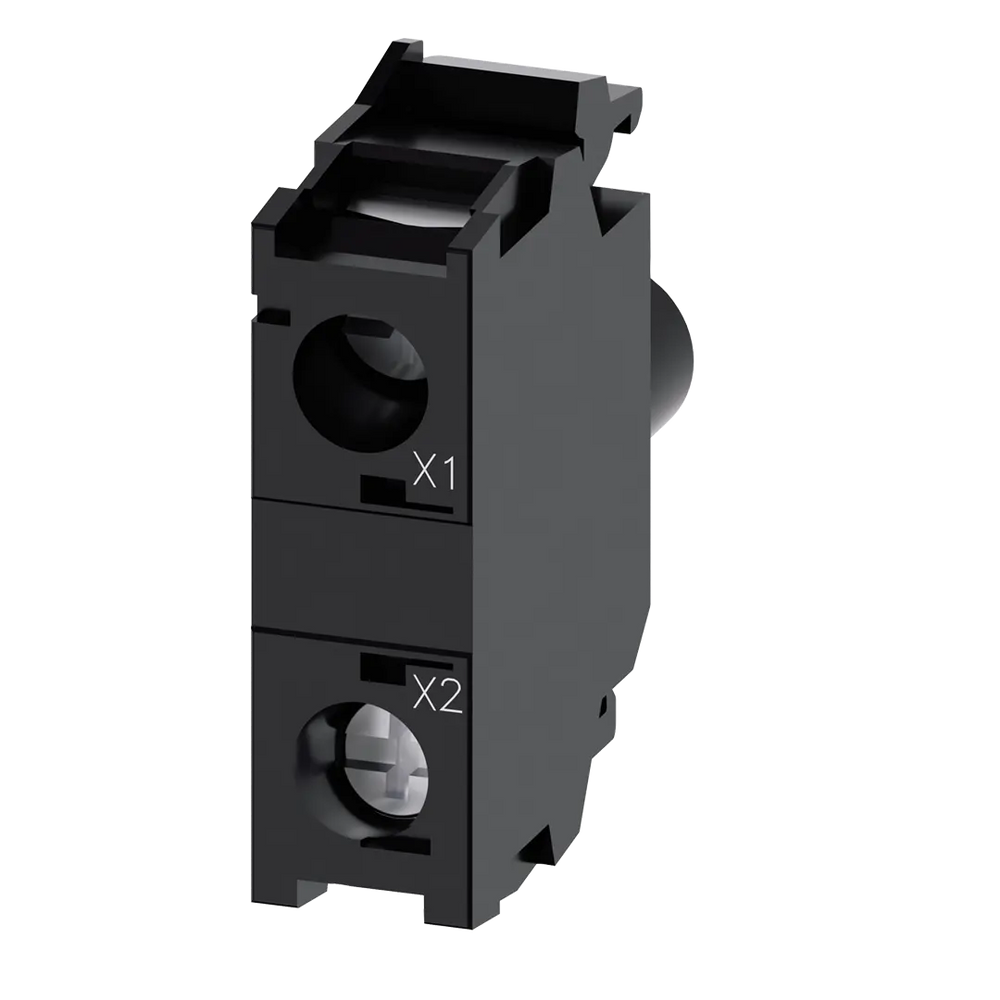

Siemens LED module with integrated LED 230 VAC, red

Product Overview

LED module with integrated LED 230 V AC, red, screw terminal, for front plate mounting. This SIRIUS ACT LED module features red LED illumination with 230V AC operating voltage and screw-type terminal electrical connection. The module is designed for front plate mounting applications and provides reliable indication in industrial control systems.

Technical Specifications:

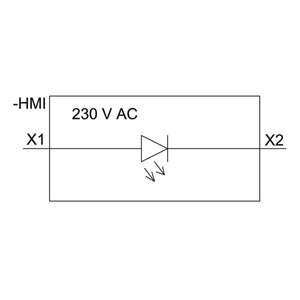

• Operating Voltage: 230V AC
• LED Color: Red
• Connection Type: Screw terminal
• Mounting: Front plate mounting

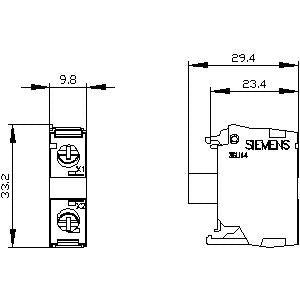

• Dimensions: 33.2 mm H x 9.8 mm W x 29.4 mm D
• Protection Class: IP40 enclosure, IP20 terminal (typical for SIRIUS ACT series)
• Operating Temperature: -25°C to +70°C (typical for SIRIUS ACT series)
• Shock and Vibration Resistance: Yes
• Pollution Degree: 3
• Series: SIRIUS ACT

Product Details:

• Article Number: 3SU1401-1BF20-1AA0
• Net Weight: 0.010 kg
• Package Dimensions: 80.00 x 113.00 x 17.00 mm
• Country of Origin: Czech Republic
• EAN: 4011209943421
• UPC: 804766073700

Application: For illuminating SIRIUS ACT pushbuttons and indicator lights. High luminosity thanks to energy efficient LED technology. Easy installation and mounting to holder. Part of SIEMENS's modular, tried-and-tested complete range of pushbuttons and indicator lights in round design.

Compliance and Certifications:

• RoHS compliant since October 1, 2014
• WEEE (2012/19/EU) Take-Back Obligation: Yes
• Export Control Regulations: AL: N / ECCN: N

REACH Information: This product contains substances from the REACH candidate list in concentrations higher than 0.1% w/w:

• Lead monoxide (lead oxide)
• 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on current information, these substances do not pose risk when used as intended.
