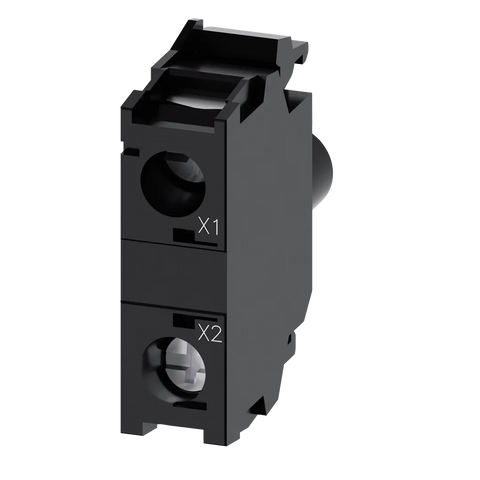

Siemens LED module with integrated LED 24 VAC/DC, white Part number 3SU1401-1BB60-1AA0

LED module with integrated LED 24 V AC/DC, white, screw terminal, for front plate mounting. This SIRIUS ACT LED module features white LED illumination with 24V AC/DC operating voltage and screw-type terminal electrical connection. The module is designed for front plate mounting applications and provides reliable indication in industrial control systems.

Technical Specifications:

• Operating Voltage: 24V AC/DC
• LED Color: White
• Current Consumption: 20mA typical
• Insulation Voltage: 320V
• Luminous Intensity: 900-1400 mcd
• Protection Class: IP40 enclosure, IP20 terminal
• Connection Type: Screw terminal
• Mounting: Front plate mounting
• Operating Temperature: -25°C to +70°C
• Shock and Vibration Resistance: Yes
• Pollution Degree: 3

Product Details:

• Article Number: 3SU1401-1BB60-1AA0
• Net Weight: 0.008 kg
• Package Dimensions: 30.00 x 30.00 x 10.00 mm
• Country of Origin: Czech Republic
• EAN: 4011209943070
• UPC: 804766073540

Compliance and Certifications:

• RoHS compliant since October 1, 2014
• WEEE (2012/19/EU) Take-Back Obligation: Yes
• Export Control Regulations: AL: N / ECCN: N

REACH Information: This product contains substances from the REACH candidate list in concentrations higher than 0.1% w/w:

• Lead monoxide (lead oxide)
• 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on current information, these substances do not pose risk when used as intended.
