Product Overview

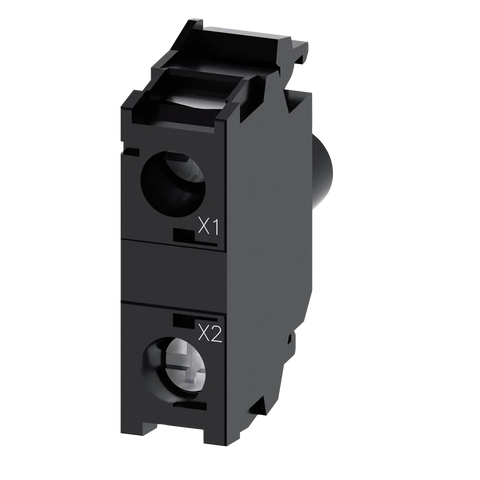

LED module with integrated LED 230 V AC, white, screw terminal, for front plate mounting

Article Number: 3SU1401-1BF60-1AA0

Key Features:

• Voltage Rating: 230V AC at 50/60 Hz
• LED Color: White
• Connection Type: Screw terminal for easy installation
• Mounting: Front plate mounting design
• Series: SIRIUS ACT
• Application: For illuminating SIRIUS ACT command and signaling devices

Technical Specifications:

• Operating Voltage: 230V AC (50/60 Hz)
• Forward Current: 20 mA
• Protection Rating: IP20, IP40
• Net Weight: 0.010 kg
• Packaging Dimensions: 65.00 x 73.00 x 32.00 mm
• Quantity Unit: 1 Piece
• EAN: 4011209943537
• UPC: 804766073786
• Country of Origin: Czech Republic

Product Benefits:

• Energy-Efficient LED Technology: Delivers brilliant luminosity with low power consumption
• Integrated Design: LED module with built-in LED eliminates need for separate lamp components
• Durable Construction: Designed for industrial environments with high protection against dust, oils, and caustic solutions
• Easy Installation: Tool-free single-handed installation with snap-on design
• Reliable Performance: Engineered for long service life in demanding applications

Applications: Ideal for use with SIRIUS ACT pushbuttons and indicator lights in industrial control panels, machinery, and automation systems where clear visual indication is required.

Compliance & Certifications:

• RoHS Compliant: Since 01.10.2014
• WEEE Directive: Take-back obligation applies
• Export Control: AL: N / ECCN: N
• Product Class: A - Standard stock item

REACH Regulation Notice: This product contains substances from the candidate list in concentrations higher than 0.1% w/w:

• Lead monoxide (lead oxide)
• 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on current information, these substances do not pose risk when used as intended. Please refer to product documentation for complete details.

Download existing graphical data for this product:

• System Manual - SIRIUS ACT 3SU1 Pushbuttons and Signaling Devices
• Technical Documentation
• Product Datasheet
• Additional Product Information
