Product Overview

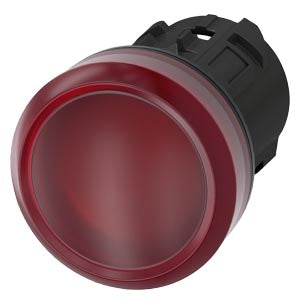

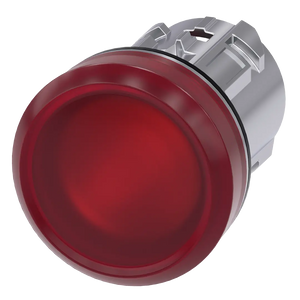

The SIRIUS ACT 3SU1001-6AA20-0AA0 is a premium 22 mm round indicator light designed for industrial control applications requiring clear visual status indication. This red, plastic lens with smooth surface combines robust construction with excellent light transmission for demanding industrial environments requiring reliable status signaling.

Key Features

Design & Construction:

• 22 mm round mounting diameter with indicator light design
• High-grade plastic front ring and collar construction
• Red smooth lens for optimal light transmission
• Pure indication function without switching capability
• Snap-on mounting system without tools required
• Smooth lens surface for easy cleaning and maintenance

Visual Indication:

• Pure Indicator Function: Dedicated status indication without switching
• Red Color Coding: Universal indication for alarm, stop, or fault conditions
• Smooth Lens Design: Even light distribution and optimal visibility
• LED Compatible: Designed for integration with LED modules
• High Visibility: Clear indication for critical status monitoring

Technical Specifications:

• Protection Rating: IP66, IP67, IP69K (front face)
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +80°C
• Mounting Hole Diameter: 22.3 mm
• Lens Type: Smooth red plastic lens
• Function: Pure indication (no switching contact)
• Illumination: LED compatible for status indication
• Mechanical Life: Maintenance-free indicator operation
• Vibration Resistance: 10-500 Hz, 5g (IEC 60068-2-6)

Certifications & Standards:

• UL, CSA, CE marked
• IEC 60947-5-1 compliant
• RoHS compliant since 01.10.2014
• REACH regulation compliant

Applications

Ideal for use in:

• Alarm and fault indication systems
• Manufacturing equipment status monitoring
• Safety system status indication
• Control panels requiring alarm/fault visualization
• Process control systems with red warning lights
• Equipment requiring status indication without switching
• Red-coded alarm and fault identification systems
• Machine status monitoring and visualization

Indication Features

• LED Integration: Compatible with 3SU14 series LED modules
• Status Visualization: Clear indication of alarm, fault, or stop conditions
• Red Color Coding: Excellent light transmission through red lens for warning signals
• Energy Efficient: LED technology for low power consumption
• Long Life: Extended operational life with LED illumination
• Maintenance-Free: Pure indicator function requires minimal maintenance

Mounting & Installation

• Front Panel Mounting: Suitable for panel thicknesses up to 8 mm
• Tool-Free Installation: Snap-on holder system
• LED Modules: Compatible with 3SU14 series LED modules for illumination
• Modular Design: Supports integration with control system architectures
• Easy Maintenance: Smooth lens design facilitates cleaning and upkeep

Series Compatibility

Part of the comprehensive SIRIUS ACT 3SU1 command and signaling device family, ensuring:

• Consistent design language across installations
• Interchangeable components and modules
• Extensive accessory ecosystem
• Global availability and support

Technical Documentation:

• Net Weight: 0.012 kg
• Country of Origin: China
• EAN: 4011209946361
• Package Dimensions: 35 x 45 x 35 mm

Download existing graphical data for this product:

Technical Documentation:

• Official Technical Datasheet (PDF)
• Product Support Page
• SIRIUS ACT System Manual

CAD Data & Drawings:

• 3D CAD Models - Multiple Formats

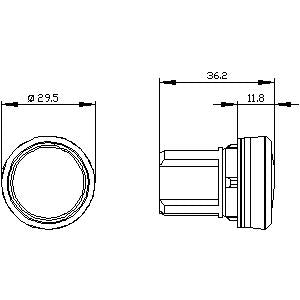

• 2D Dimension Drawings
• EPLAN Macros

Configuration Tools:

• SIRIUS ACT Online Configurator
• Product Selection Tool

Additional Resources:

• Installation Instructions
• Wiring Diagrams
• LED Module Compatibility Guide
• Compatibility Matrix
