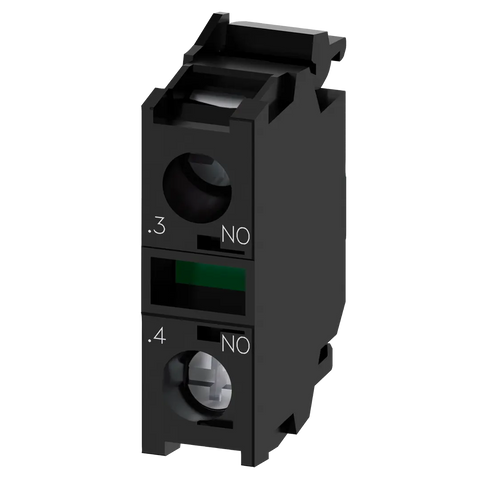

Siemens Contact module with 1NO, screw-type
Log in to view pricing
Sign in with your trade account to access live pricing and place orders. New to Rubicon Industrial Technology? Create an account in seconds.
Product Description
Product Overview
Article Number: 3SU1400-1AA10-1BA0
Product Description: Contact module with 1 contact element, 1 NO, screw terminal, for front plate mounting
Technical Specifications:
- Product Lifecycle (PLM): PM300:Active Product
- Net Weight: 0.008 kg
- Packaging Dimensions: 25.00 x 33.00 x 11.00 mm
- Quantity Unit: 1 Piece
- Packaging Quantity: 1
- EAN: 4011209937215
- UPC: 804766073267
- Country of Origin: Germany
Compliance & Certifications:
- Export Control Regulations: AL : N / ECCN : N
- RoHS Compliance: Since 01.10.2014
- WEEE (2012/19/EU) Take-Back Obligation: Yes
- Product Class: A: Standard product which is a stock item could be returned within the returns guidelines/period
REACH Information: There is currently no information on SVHC (Substances of Very High Concern) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classification Standards:
- eClass: 27-37-13-02 (versions 6, 7.1, 8, 9, 9.1, 12, 14)
- ETIM: EC000041 (versions 7, 8, 9)
- UNSPSC: 39-12-22-21 (version 15)
Download existing graphical data for this product:
Additional Information
| IP Rating | IP40 (of enclosure) / IP20 (of terminal) |
| Country of Origin | Germany |
| Temperature: Operating | -25°C to 70°C |
| Part Depth (mm) | 27.7mm |
| Part Width (mm) | 9.8mm |
| Part Height (mm) | 33.2mm |
| Tightening Torque | 0.8 - 0.9 N·m |
| Material: Product | Silver Alloy (contacts) |
| Connection Type | Screw terminal |
| Max Frequency | 3600 1/h |
| Type of Voltage | AC/DC |
| Operating Voltage | 5 / 500 V |
| Mounting Type | Front plate mounting |
| Current Rating / Rated Current | 0.1 - 10 A |
| Operating Period | 10 000 000 cycles (Mechanical) / 10 000 000 cycles (Electrical) |
Technical Documentation & Downloads
Additional Datasheet

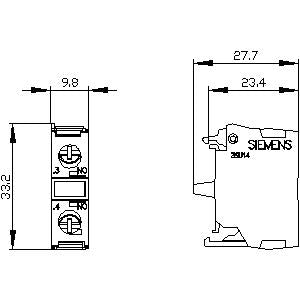

Dimensional Drawing
