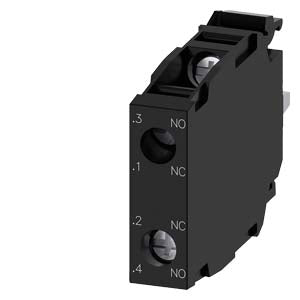

Siemens Contact module with 1NO + 1NC, screw terminal

Product Overview

Contact module with 2 contact elements, 1 NO+1 NC, screw terminal, for front plate mounting from the SIRIUS ACT series. This auxiliary contact block is designed to control the flow of electricity through switches and is suitable for switching power circuits.

Key Features

• 2 Contact elements: 1 Normally Open (NO) + 1 Normally Closed (NC)
• Screw terminal connection type
• Front plate mounting configuration
• Innovative snap-on concept for easy installation with one hand and without special tools
• Robust construction from high-quality materials
• Part of the SIRIUS ACT portfolio with worldwide product approvals

Technical Specifications

• Contact Configuration: 1 NO + 1 NC (1 make contact + 1 break contact)
• Number of Poles: 3 Pole
• Contact Current Max: 10A
• Voltage Rating: 500V AC/DC
• Rated Operating Current: 6A at AC-15, 230V
• Connection Type: Screw connection
• Net Weight: 0.017 kg
• Packaging Dimensions: 35.00 x 50.00 x 10.00 mm
• Country of Origin: Germany
• EAN: 4011209950979
• UPC: 804766335167

Compliance & Standards

• RoHS compliant since 01.10.2014
• WEEE (2012/19/EU) Take-Back Obligation: Yes
• Export Control Regulations: AL: N / ECCN: N

Applications This contact module is ideal for switching circuits in industrial automation applications. The dual contact configuration (1 NO + 1 NC) provides versatility for various control applications and is commonly used in electrical and automation systems requiring reliable switching performance.

Mounting & Installation

• Front plate mounting design
• Snap-on concept allows one-hand installation
• No special tools required for assembly
• Compatible with SIRIUS ACT command and signaling devices

Product Classification

• eClass: 27-37-13-02
• ETIM: EC000041
• UNSPSC: 39-12-22-21
