Siemens Switch disconnector, 3-pole, 315A max and fuse current
📄 Datasheet
Siemens

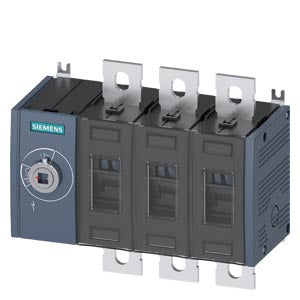

Siemens Switch disconnector, 3-pole, 315A max and fuse current Part number 3KD4030-0PE10-0

EAN / Barcode 4001869472799
Product Type Control Panel
Product Class Switch disconnector (low voltage)
ETIM Class Switch disconnector (low voltage)
Back Order
💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

Switch disconnector 315 A

High-performance main, EMERGENCY-OFF, or repair switch designed for reliable operator protection and high system availability.

Technical details:

  • Current rating: 315 A
  • Size: 3
  • Poles: 3-pole
  • Front operating mechanism: left
  • Basic unit: without handle flat terminal
  • Switch disconnector rating: up to 1600 A

Customer benefits:

  • Reliable operator protection
  • Ensures high system availability in industry, infrastructure, and buildings
  • Flexible usage suitable for wind and solar power plants
  • Available in different versions with variable connection and drive types
  • Versions for DC applications are also available
  • End-to-end safety for users and systems

Technical Specifications

Degree of protection (IP), front sideIP00

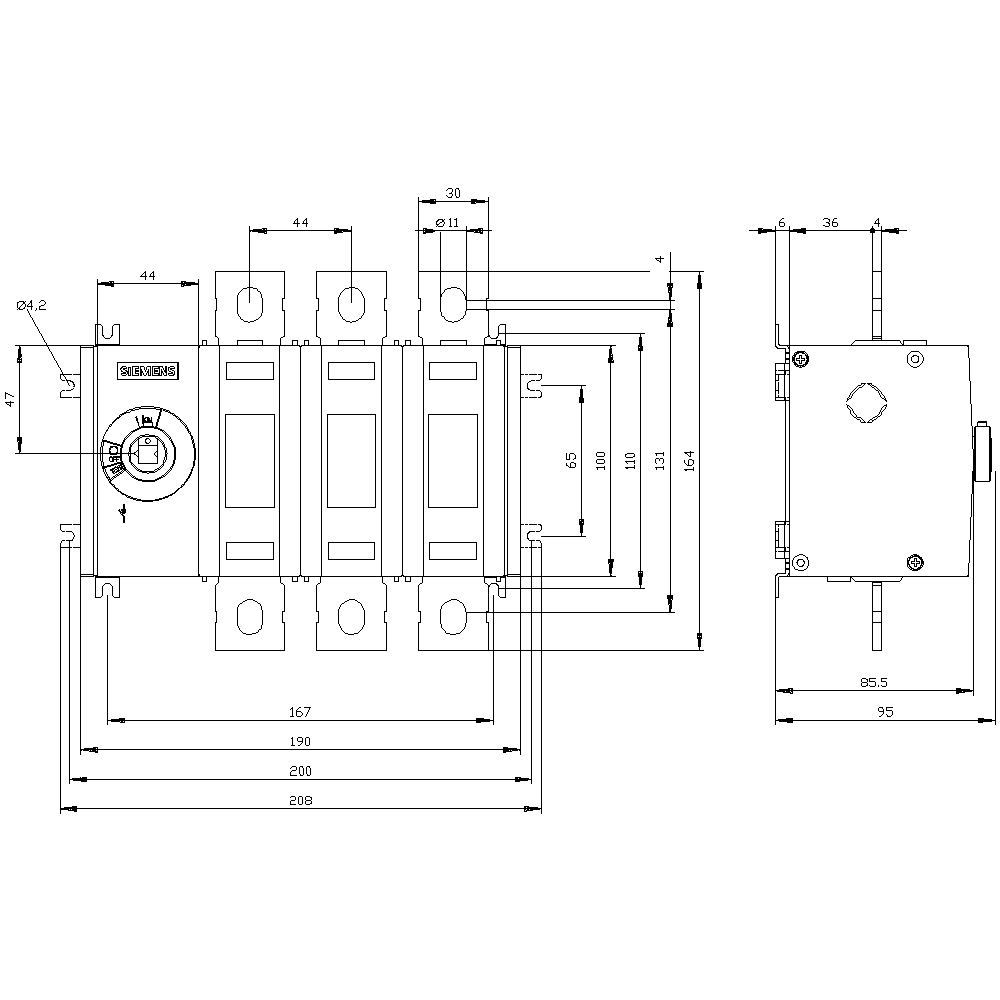

Depth94 mm
Device constructionBuilt-in device fixed built-in technique
Height164 mm
Max. rated operation voltage Ue AC1000 V
Number of auxiliary contacts as normally closed contact6
Number of auxiliary contacts as normally open contact6
Number of poles3
Number of switches1
Rated operation power at AC-23, 400 V160 kW
Rated permanent current at AC-21, 400 V315 A
Rated permanent current at AC-23, 400 V315 A
Rated permanent current Iu315 A
Rated short-time withstand current lcw13 kA
Suitable for floor mountingYes
Switching power at 400 V160 kW
Type of control elementOther
Type of electrical connection of main circuitFlat plug-in connection
Version as emergency stop installationYes
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchYes
Width190 mm
Width in number of modular spacings3
