Siemens Switch disconnector, red/yellow, 3-pole, 7.5kW, 16A
View on Siemens
Siemens

Siemens Switch disconnector, red/yellow, 3-pole, 7.5kW, 16A

SKU / Article No. 3LD2003-0TK53
Product Type Control Panel
Category Power Distribution
Sub-category Isolator
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

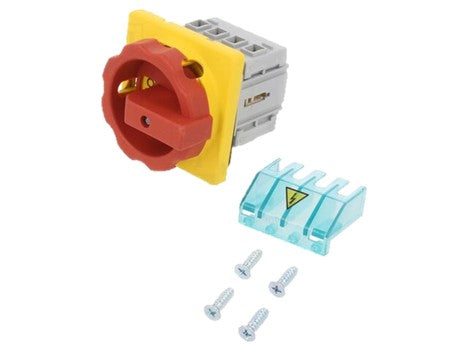

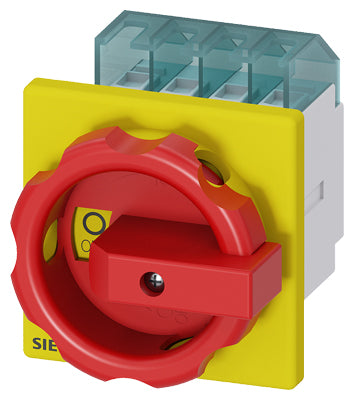

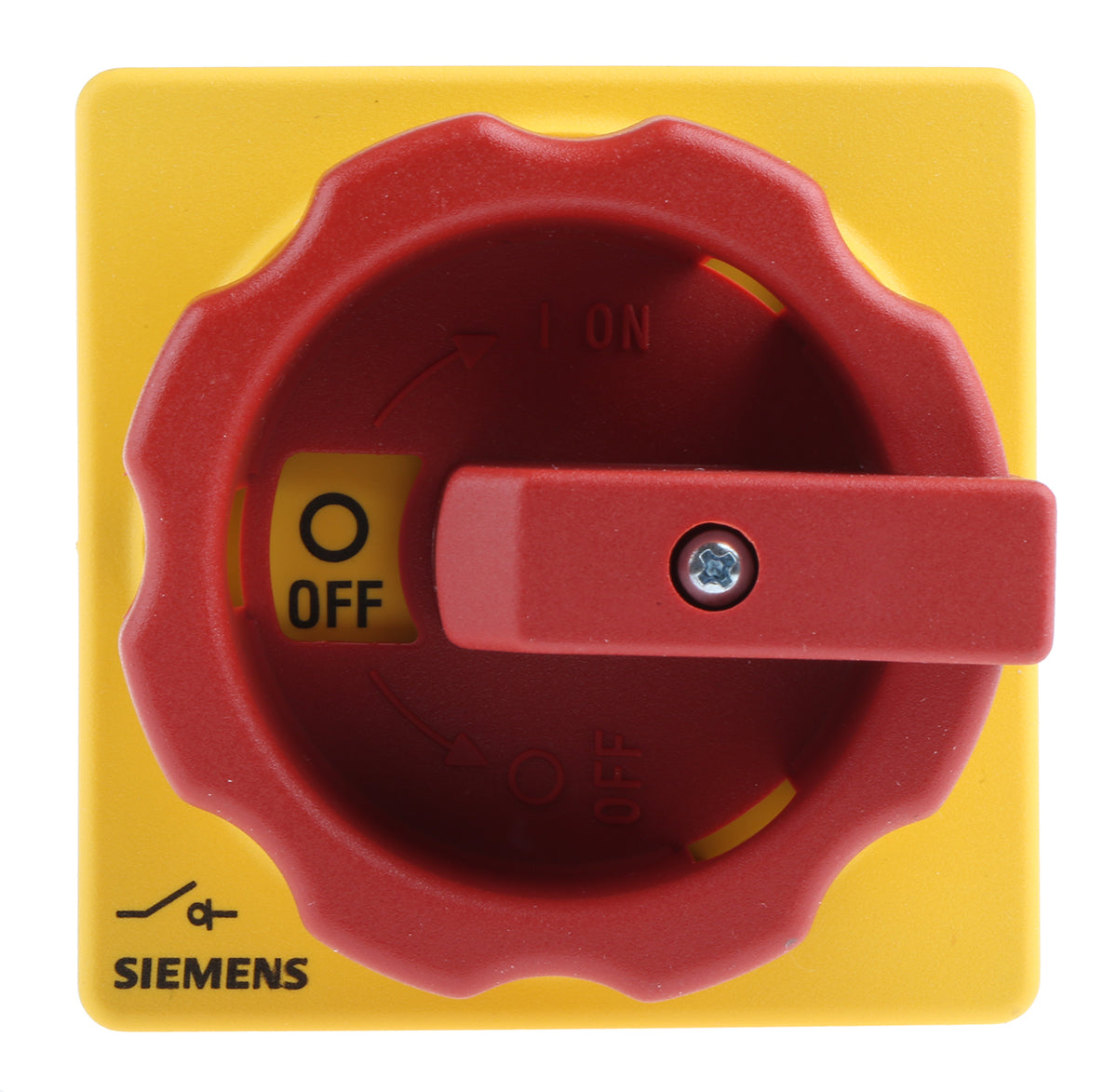

This SENTRON emergency-stop switch disconnector features 3 poles and a rotary operating mechanism. It has a rated operational current of 16 A and can be used for AC applications up to 690 V. The device is ideal for front-mounting applications and offers IP65 protection, making it suitable for industrial safety applications.

Technical Specifications

IP RatingIP65
Country of OriginGermany
Temperature: Operating-25°C to 55°C
Part Depth (mm)92.5mm
Part Width (mm)67mm
Part Height (mm)84mm
Weight (g)203g
Connection Style3 Poles
Connection TypeBox terminal (for main current circuit) / connection terminals (for auxiliary contacts)
Rated Operating Voltage690 VAC
Mounting Type4-hole front mounting / Built-in unit / Fixed mounting
Current Rating / Rated Current10 - 20 A
Operating Period100 000 cycles (Mechanical)
ColourRed
View complete specifications on Siemens
