Description

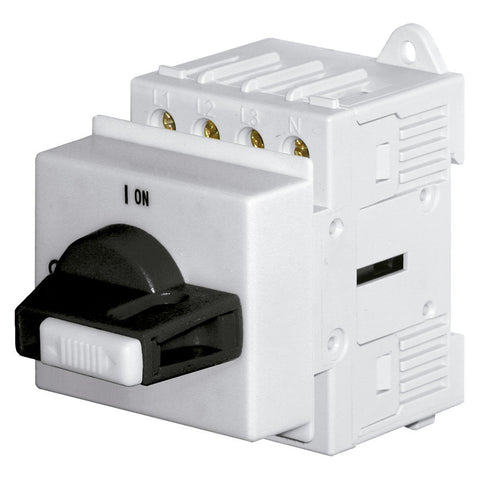

xDIN rail modular switch – disconnectors, are available from 20A to 125A in 3P - 3P+N and 25A to 80A in 6P - 8P. They are designed according to IEC/EN 60947-3 standard for use in civil and low voltage industrial installations, and is certificated UL 508 for use as Manual Motor Controllers. The different models of this series, allow several mounting options, effectively solving the most common needs for machine operating and panel boards.
\nTechnical Specifications:
\nRated Thermal Current: 20A
\nPoles: 3P
\nRated Insulated Voltage: 690Vac
\nBreaking Capacity: 3 x 220-240V (160A)
\nRated Impulse Voltage: 6kV
\nConnecting Capacity:
\nSolid or Stranded Cable: 0.5-10mm
\nSize of Terminal Screw: M3.5
\nTightening Torque: 0.8-1.7Nm
Specifications
x| IP Rating / Detailed | IP40 |
| IP Rating | IP40 |
| Compliance/Certifications | CE / EAC / IEC / UL /VDE 0660 / IEC 60947-3 / IEC 60947-5-1 |
| Part Depth (mm) | 60 mm |
| Part Width (mm) | 48 mm |
| Part Height (mm) | 64 mm |
| Tightening Torque | 0.8 - 1.7 Nm |
| Connection Type | 3P |
| Rated Operating Voltage | 600 V |
| Current Rating / Rated Current | 20 A |
| Operating Period | 200 000 cycles |
