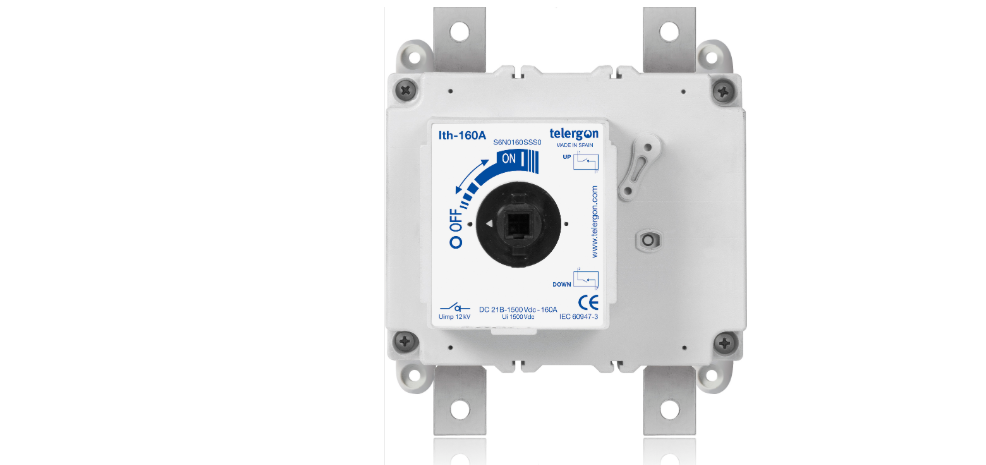

Telergon Switch disconnector, size 1, 2-pole, 1500VDC, 160A Telergon
Telergon Switch disconnector, size 1, 2-pole, 1500VDC, 160A Telergon

Telergon Switch disconnector, size 1, 2-pole, 1500VDC, 160A Part number S6N0160USS0

This switch disconnector provides manual isolation of two-pole circuits rated up to 1500VDC at 160A, allowing safe disconnection of power supply during maintenance or emergency shutdown. The size 1 frame suits control panel power distribution applications where DC isolation is required. It is typically installed as part of the main...
Vendor: Telergon
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x

This switch disconnector provides manual isolation of two-pole circuits rated up to 1500VDC at 160A, allowing safe disconnection of power supply during maintenance or emergency shutdown. The size 1 frame suits control panel power distribution applications where DC isolation is required. It is typically installed as part of the main disconnect arrangement ahead of downstream protective and control devices.

Specifications
Specifications
x
Rated Insulation Voltage (DC)1500 V
Rated Impulse Withstand Voltage12 kV
Rated Operational Current (DC21B)125 A / 160 A / 200 A / 250 A / 315 A / 400 A
Rated Short-Circuit Making Capacity10 kA (peak)
Rated Short-Time Withstand Current (1sec)10 kA rms
Number of Mechanical Operations8000 Cycles
Maximum Weight4.25 kg
Overall Width (max)265 mm
Overall Width (min)225 mm
Overall Height203.5 mm
Height to Top Mounting Hole170 mm
Height to Middle Mounting Hole150 mm
Height to Bottom Mounting Hole130 mm
Mounting Hole Diameterø5.5 mm
Documents
Documents
x
Download Datasheet
