Siemens Sentron Switch disconnector, 3-pole, 25A, 9.5kW
View on Siemens 📄 Datasheet
Siemens

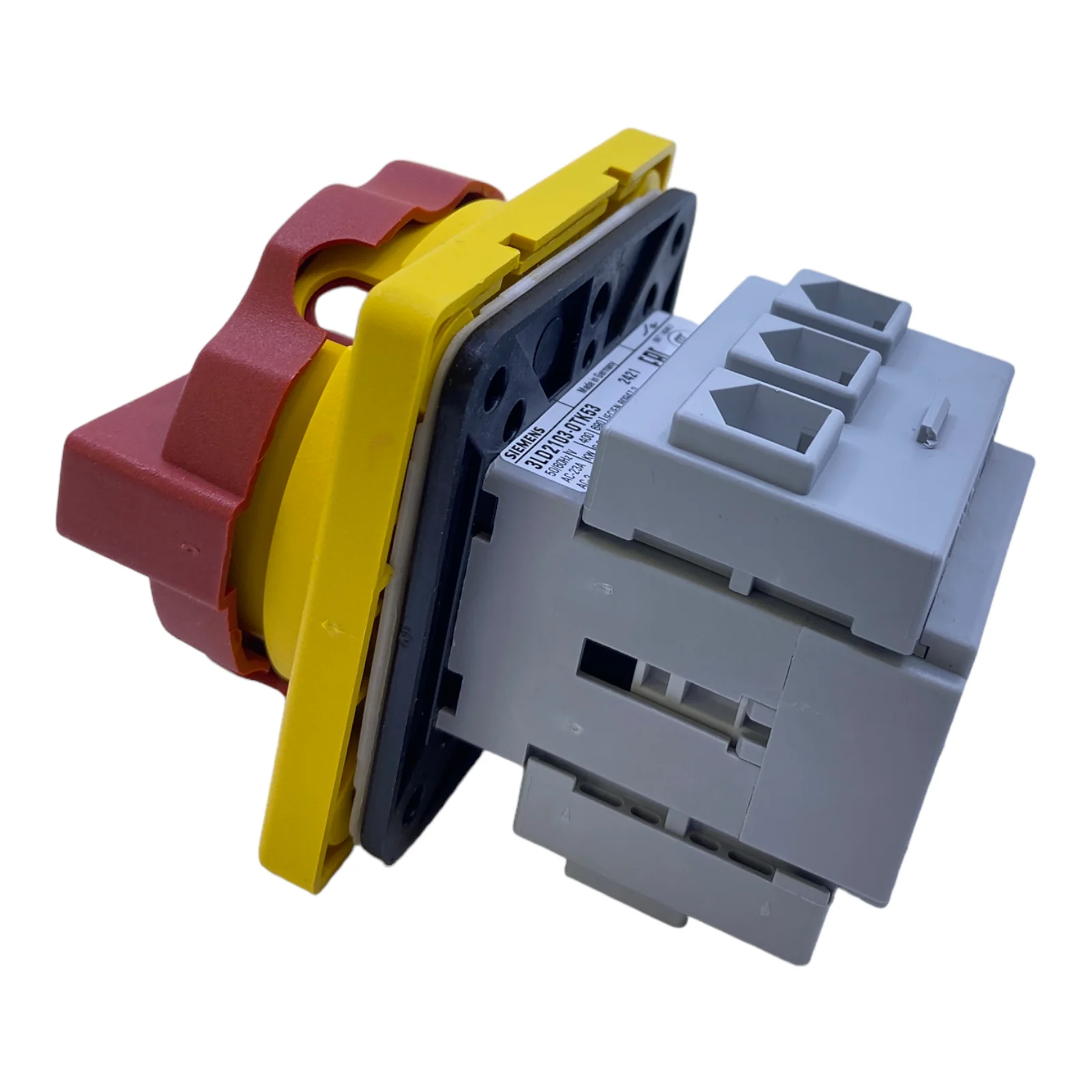

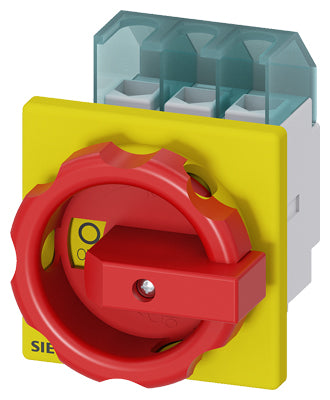

Siemens Sentron Switch disconnector, 3-pole, 25A, 9.5kW Part number 3LD2103-0TK53

Product Type Control Panel
Category Power Distribution
Sub-category Isolator
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

Sentron, switch disconnector 3LD

The 3LD switch disconnector with EMERGENCY-OFF functionality is designed for safe shutdown of loads in various applications.

Technical details:

  • Type: 3LD
  • Function: EMERGENCY-OFF switch

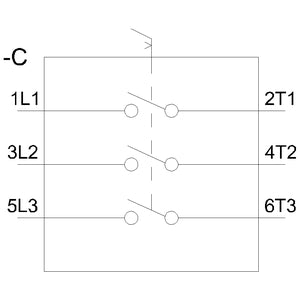

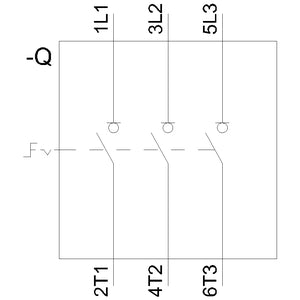

  • Poles: 3-pole
  • Iu: 25 A
  • Operational power / at AC-23 A at 400 V: 9.5 kW
  • Operating mechanism: Rotary
  • Color: Red/yellow
  • Mounting: 4-hole mounting of the handle
  • Degree of protection: IP65
  • Application approvals: IEC, UL, CCC, shipbuilding
  • Variants: Available for front mounting, mounting plate, DIN rail, installation in distribution boards
  • Locking capability: Optimum disconnection of 16 A of 250 A

Customer benefits:

  • Safe shutdown of loads in numerous areas including three-phase motors and HVAC systems.
  • Modular design for fast and easy mounting of auxiliary switches.
  • Versatile for worldwide use with various international approvals.
  • End-to-end safety for users and systems.

Technical Specifications

IP RatingIP65
Country of OriginGermany
Temperature: Operating-25°C to 55°C

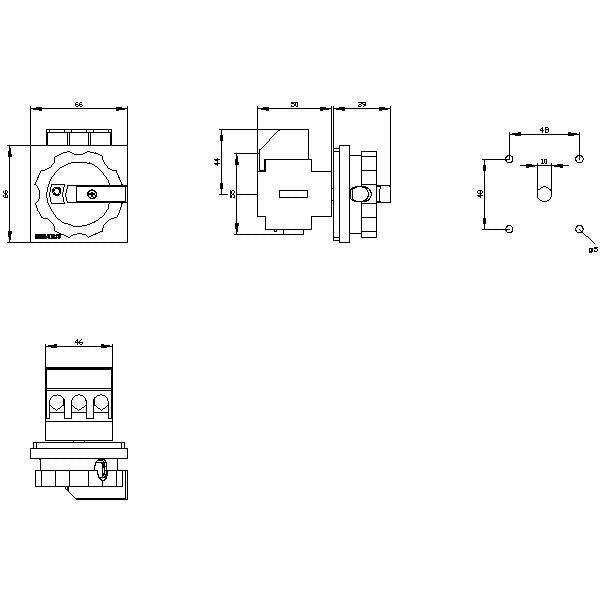

Part Depth (mm)92.5mm
Part Width (mm)67mm
Part Height (mm)84mm
Weight (g)187g
Packaging size / unit pc(s)
Voltage Frequency Range50 / 60 Hz
Mounting Type4-hole front mounting
Current Rating / Rated Current4 - 25 A
Operating Period100 000 cycles (Mechanical) / 6 000\r cycles (Electrical)
View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples
