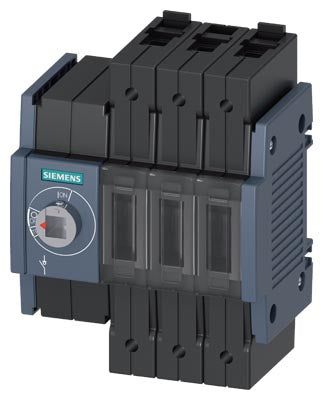

Siemens Switch disconnector Siemens Switch disconnector, front operating mechanism, size 1, 3-pole, 63AA, Size 1, 3-pole Front operating mechanism left
📄 Datasheet
Siemens

Siemens Switch disconnector Siemens Switch disconnector, front operating mechanism, size 1, 3-pole, 63AA, Size 1, 3-pole Front operating mechanism left Part number 3KD2630-2ME10-0

EAN / Barcode 4001869471860
Product Type Control Panel
Product Class Switch disconnector (low voltage)
ETIM Class Switch disconnector (low voltage)
Out of Stock
💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

Switch disconnector 63 A, Size 1, 3-pole

This product serves as a high-performance main, EMERGENCY-OFF, or repair switch for reliable operator protection and high system availability.

Technical details:

  • Current rating: 63 A
  • Size: 1
  • Poles: 3-pole
  • Operating mechanism: Front operating mechanism left
  • Type: Basic unit without handle
  • Box terminal
  • Switch disconnector up to 1600 A

Customer benefits:

  • Reliable operator protection
  • High system availability in industry, infrastructure, and buildings
  • Suitable for wind and solar power plants
  • Available in different versions with variable connection and drive types
  • Versions for DC applications are also available
  • End-to-end safety for users and systems

Technical Specifications

Degree of protection (IP), front sideIP20
Depth68 mm
Device constructionBuilt-in device fixed built-in technique
Height119 mm
Max. rated operation voltage Ue AC1000 V
Number of auxiliary contacts as change-over contact4
Number of poles3
Number of switches1
Rated operation power at AC-23, 400 V30 kW
Rated permanent current at AC-21, 400 V63 A
Rated permanent current at AC-23, 400 V63 A
Rated permanent current Iu63 A
Rated short-time withstand current lcw3 kA
Suitable for floor mountingYes
Switching power at 400 V30 kW
Type of control elementOther
Type of electrical connection of main circuitFrame clamp
Version as emergency stop installationYes
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchYes
Width94 mm
Width in number of modular spacings3
