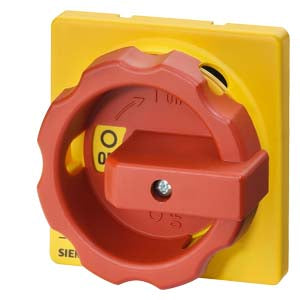

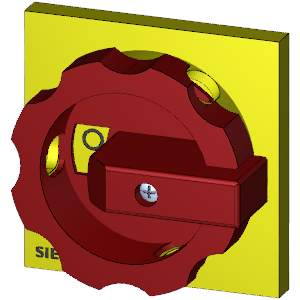

Siemens Rotary operating mechanism, actuating lever red / yellow

Product Overview The Siemens 3LD9224-3D is a precision-engineered rotary operating mechanism featuring a distinctive red and yellow actuating lever design. This essential accessory provides reliable manual operation for main and emergency switching-off switches, with center-hole front mounting capability for enhanced accessibility and safety in industrial applications.

Key Features

• Distinctive Color Coding: Red and yellow actuating lever for enhanced visibility and safety identification
• Center-Hole Front Mounting: Convenient front-accessible installation through center-hole design
• Dual Current Rating: Compatible with both 25 A and 32 A applications
• Rotary Operation: Smooth rotary mechanism for reliable switching operation
• Standard Stock Item: Class A product available as standard stock for quick delivery

Technical Specifications

• Article Number: 3LD9224-3D
• Actuating Lever: Red/Yellow color combination
• Mounting Type: Center-hole front mounting
• Current Rating: 25 A and 32 A
• Weight: 0.078 kg
• Packaging Dimensions: 78.00 x 92.00 x 70.00 mm
• Country of Origin: Germany
• EAN: 4011209404342
• UPC: 754554733548
• Commodity Code: 85389099

Applications This rotary operating mechanism is specifically designed as an accessory for:

• Main switching-off switches (3LD2 series)
• Emergency switching-off switches (3LD2 series)
• Industrial control panels requiring manual operation
• Applications requiring clear visual indication of switch position

Compliance & Standards

• RoHS Compliant: Meets substance restriction requirements
• Export Control: AL: N / ECCN: N classification
• REACH Compliant: Regularly screened for substances of very high concern
• German Engineering: Manufactured to Siemens' premium quality standards

Ordering Information

• Packaging Quantity: 1 piece per package
• Standard Lead Time: 3 days ex-works
• Product Lifecycle: Active product (PM300)
• Product Class: Standard stock item (Class A) - returnable within guidelines
• Availability: Standard stock product for immediate availability

Product Classification

• Product Family: Accessories
• eClass: 27-37-04-14
• ETIM: EC000229
• UNSPSC: 39-12-22-21
