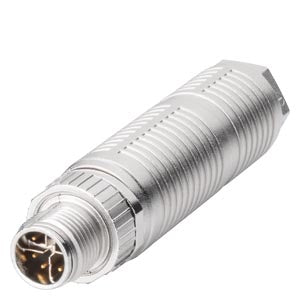

Siemens Plug ethernet connector, cable mount, Cat6a, straight, 4x2 port, 8-way

Product Overview

The Siemens IE FC M12 Plug PRO 4x2 (SKU: 6GK1901-0DB50-6AA0) is an industrial-grade, 8-pole M12 connector designed for reliable Ethernet and PROFINET connections in harsh environments. It features a robust metal housing with an axial cable outlet and supports high-speed data transmission, making it ideal for demanding automation and networking applications.

Key Features

• 8-pole M12 plug with X-coding for Industrial Ethernet
• Supports data rates up to 10 Gbit/s for high-performance networks
• Axial cable outlet for compact installation
• Rugged metal design ensures long-term durability
• Suitable for PROFINET and Ethernet applications
• High mechanical stability with reliable strain relief
• Degree of protection: IP65/IP67

Technical Specifications

• Product Type: IE FC M12 Plug PRO 4x2
• Article Number: 6GK1901-0DB50-6AA0
• Connection Type: M12 circular connector (X-coded)
• Number of Poles: 8
• Transmission Rate: Up to 10 Gbit/s
• Design: Axial cable outlet
• Housing Material: Metal
• Protection Class: IP65 / IP67
• Operating Temperature: -40 °C to +85 °C
• Dimensions: Approx. 70 mm length
• Weight: Approx. 48 g

Compliance & Certifications

• Meets Siemens Industrial Ethernet and PROFINET standards
• Complies with IEC 61076-2-109 (M12 X-coded standard)
• RoHS compliant

Applications

Ideal for use in industrial automation, machine building, and plant engineering, the Siemens IE FC M12 Plug PRO 4x2 provides reliable high-speed Ethernet connectivity in environments requiring robust, vibration-resistant, and moisture-protected connections.
